Description

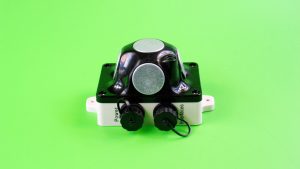

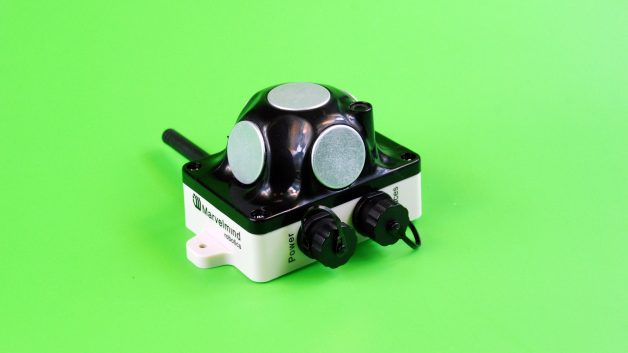

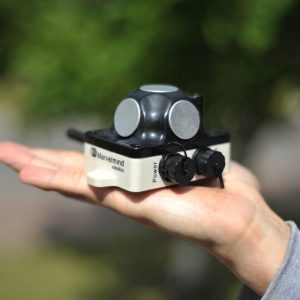

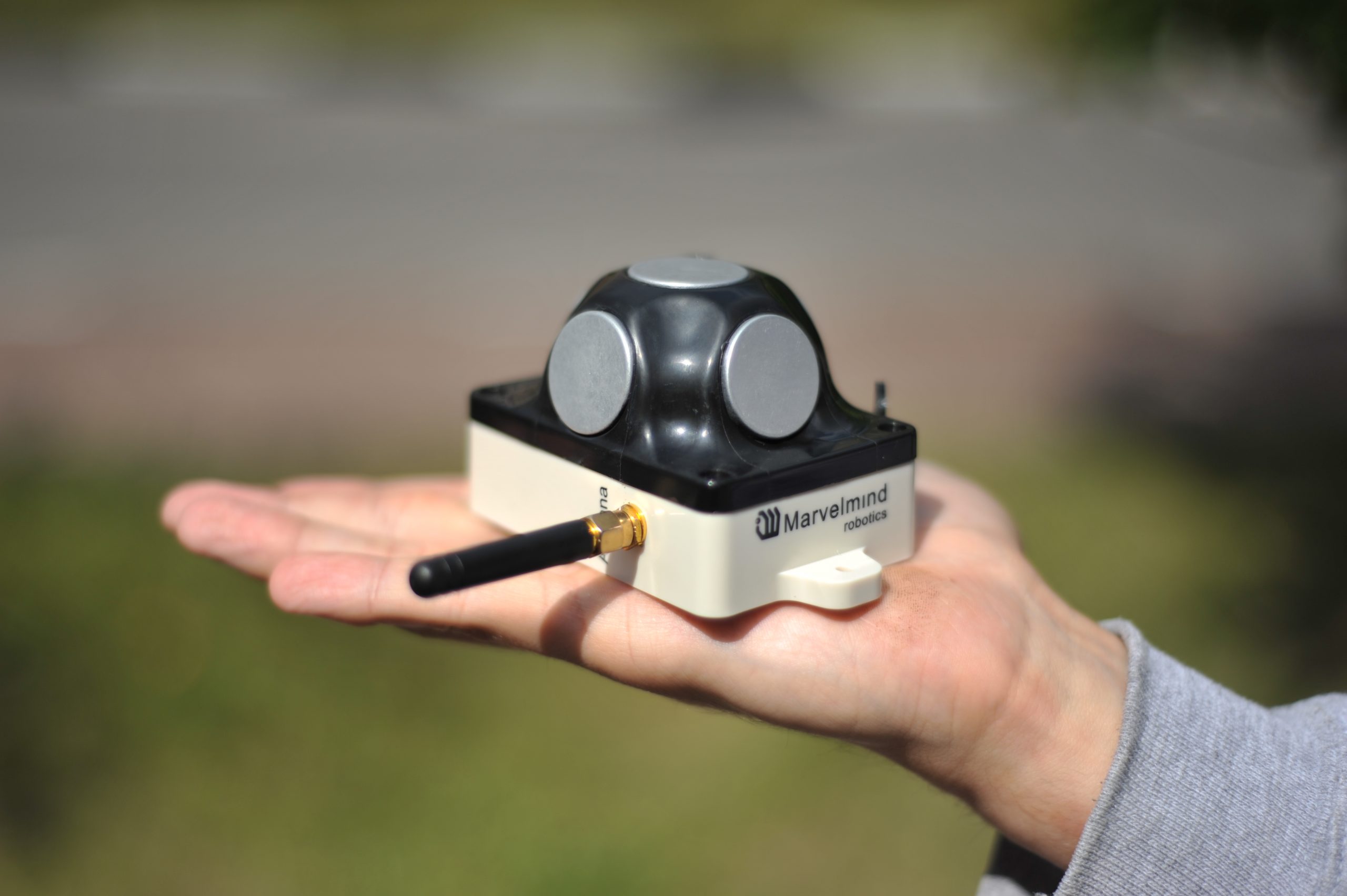

Industrial Super-Beacon-Metal is equipped with metal IP67 25kHz ultrasonic transducers. See detailed specifications for the Industrial Super-Beacon.

All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip.

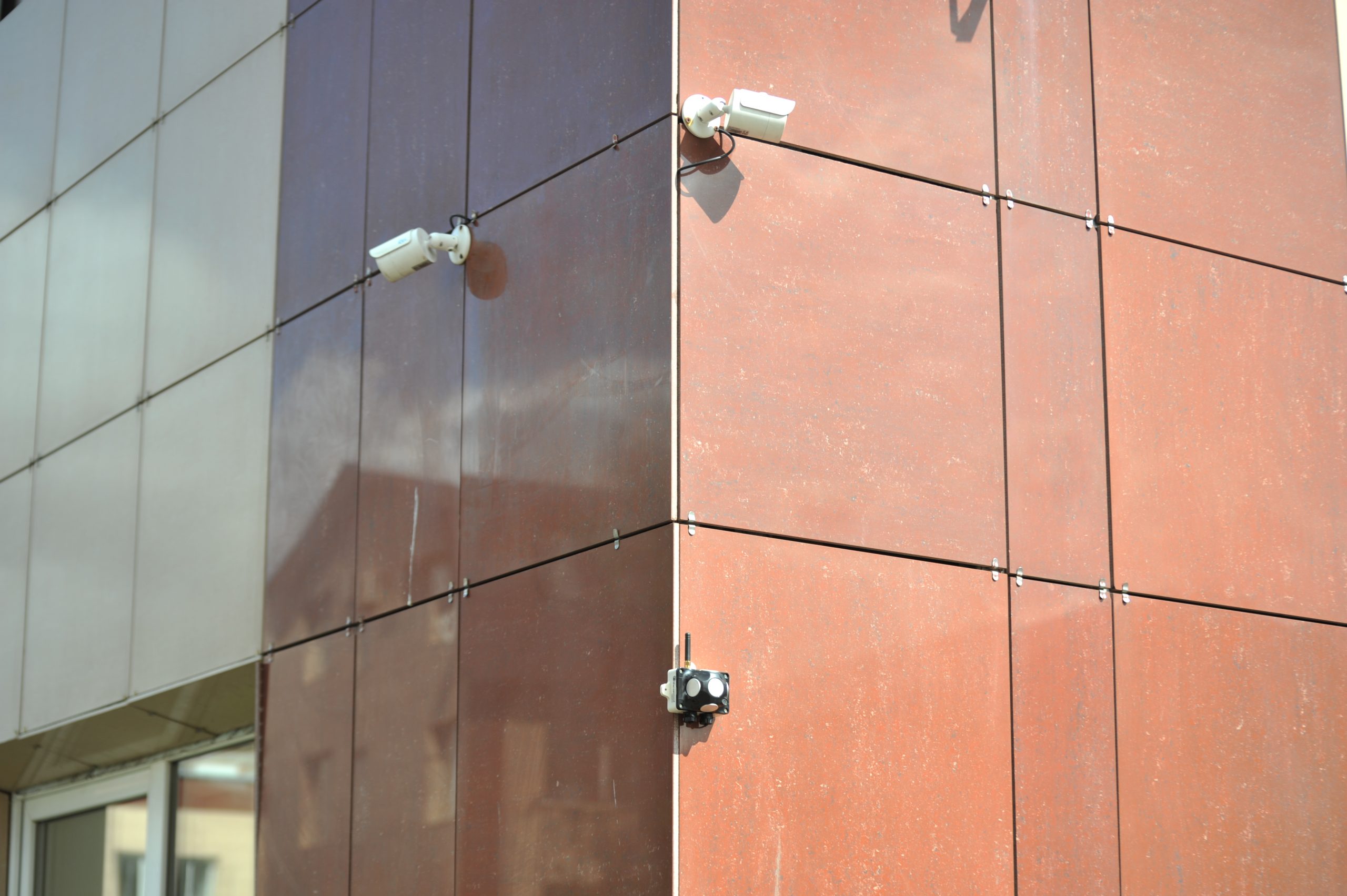

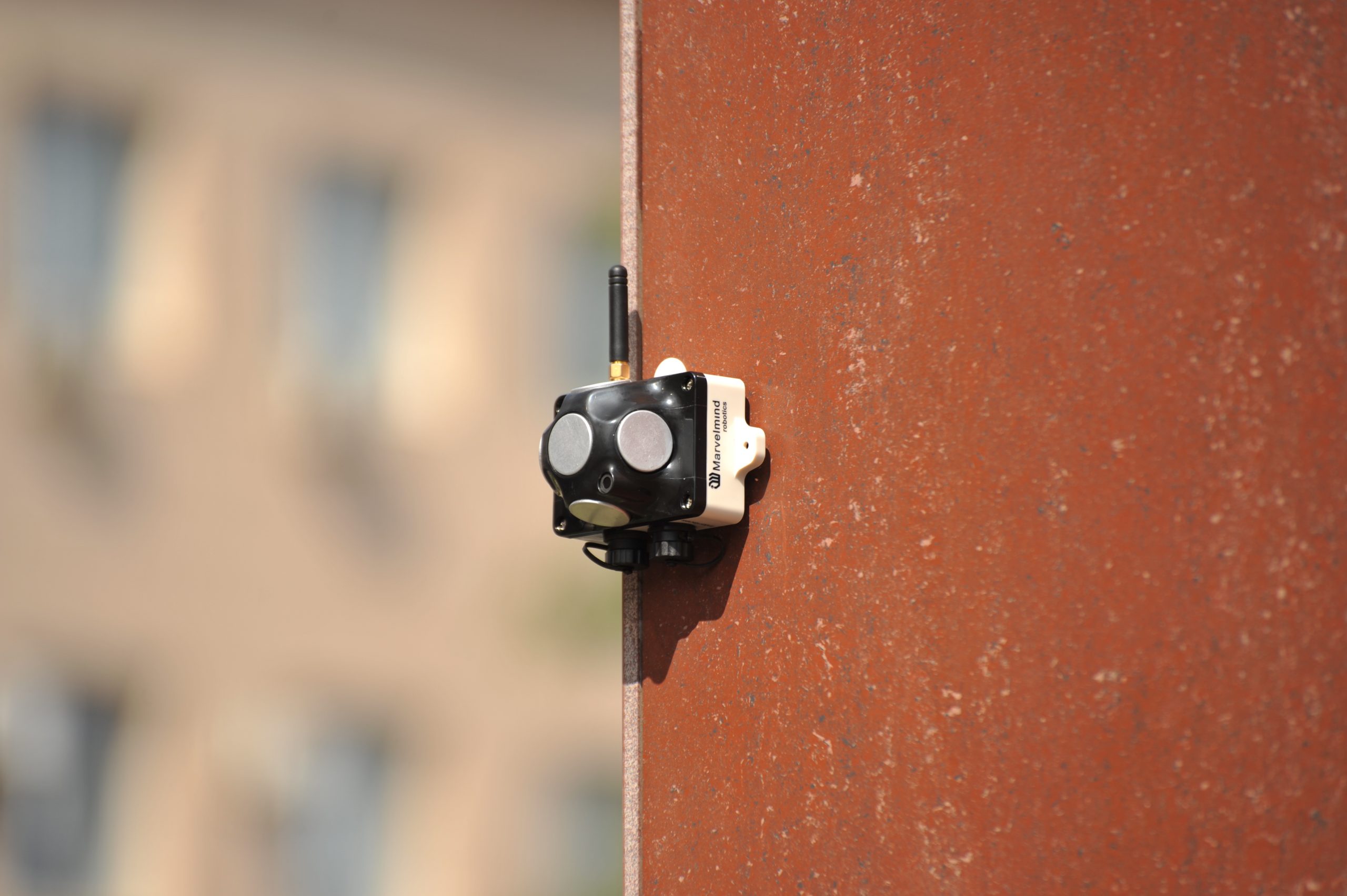

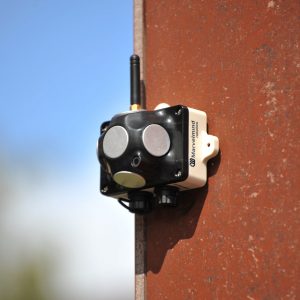

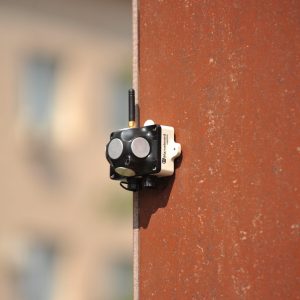

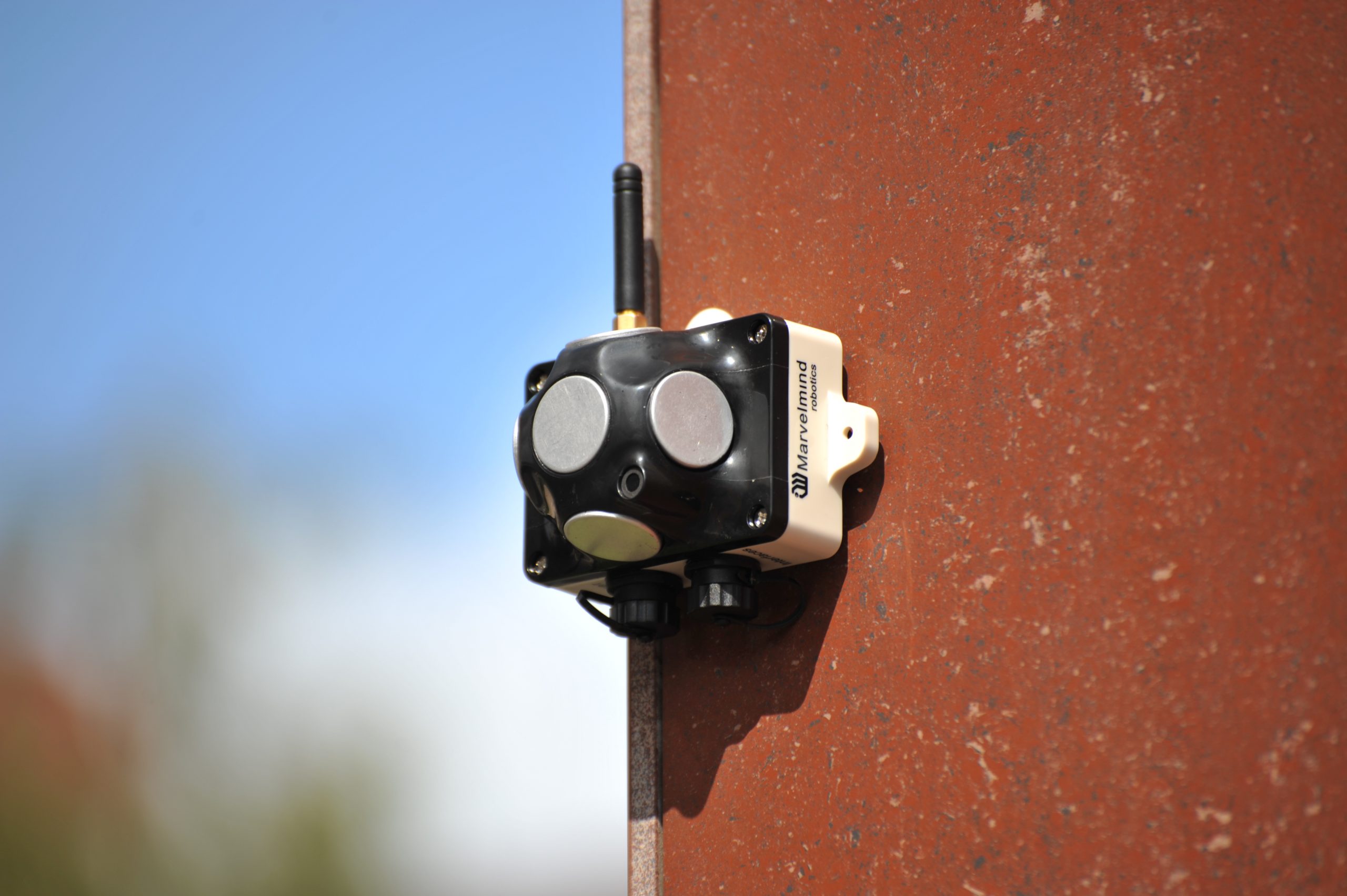

  • Designed for outdoor and industrial applications
  • Supports dual-use – ultrasound-receiving and ultrasound-transmitting beacon
  • It can transmit on its native ultrasonic frequency (25kHz) and it can receive on any ultrasonic frequency (19/22/25/28/31/34/37/45 kHz)
  • The beacon supports both IA and NIA architectures. Thus, it is called Industrial Super-Beacon
  • Very solid and up to IP67 level protection

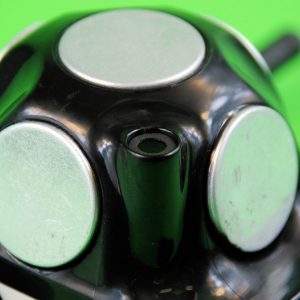

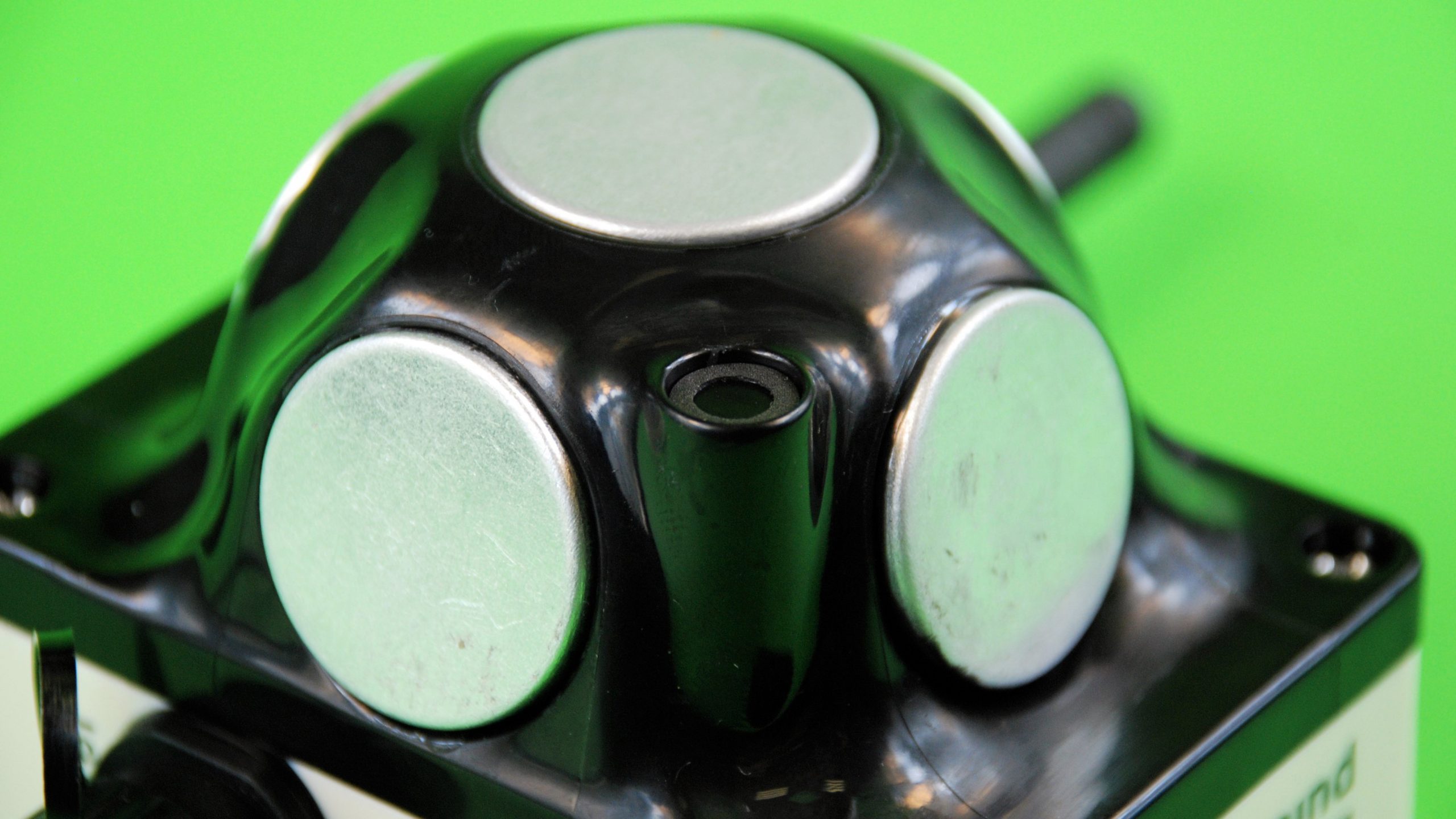

  • Special IP67-protected 25-kHz transducers

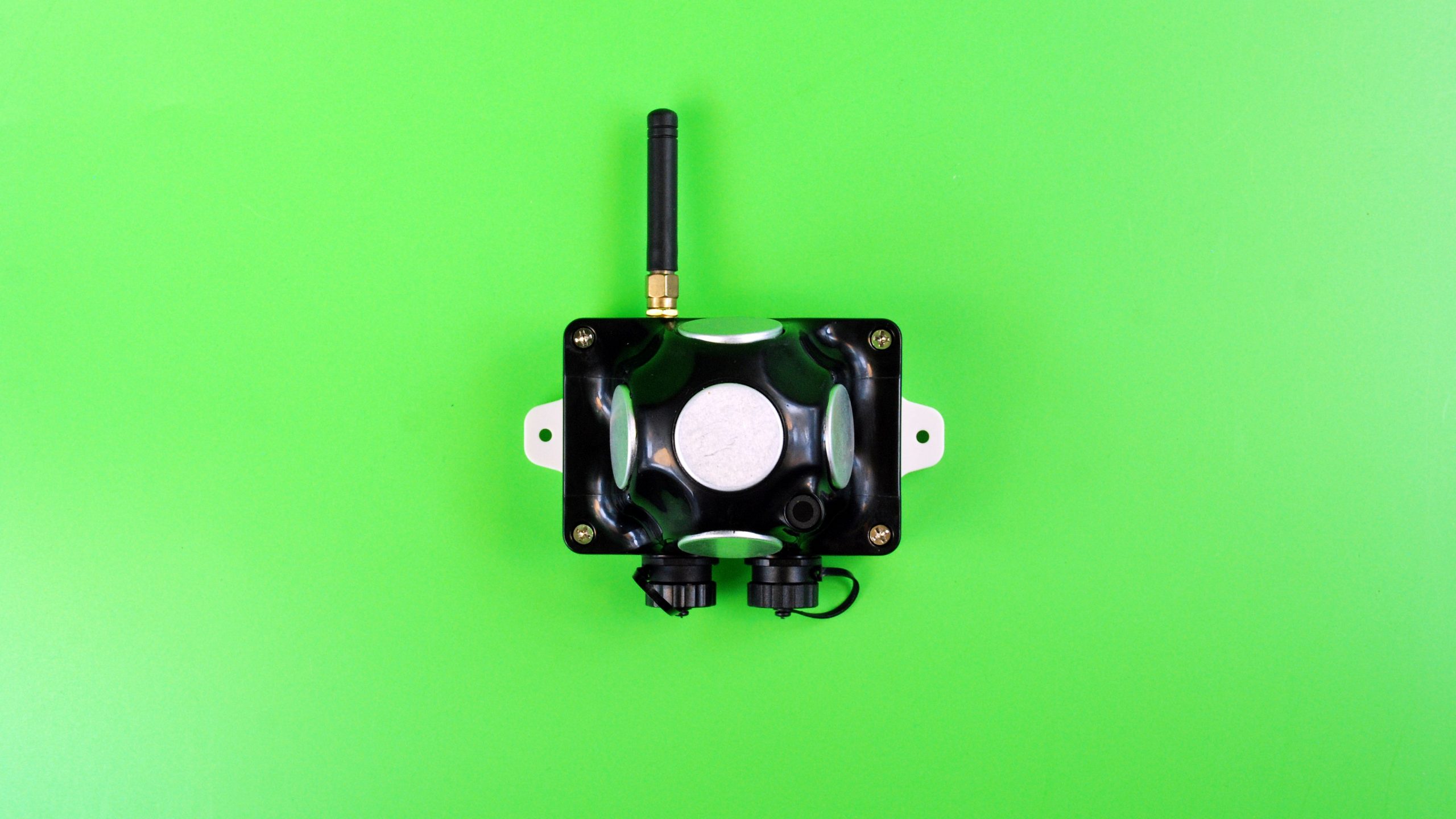

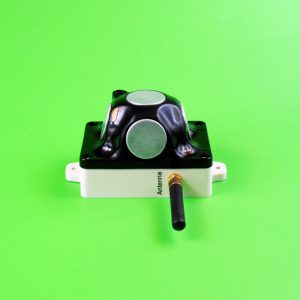

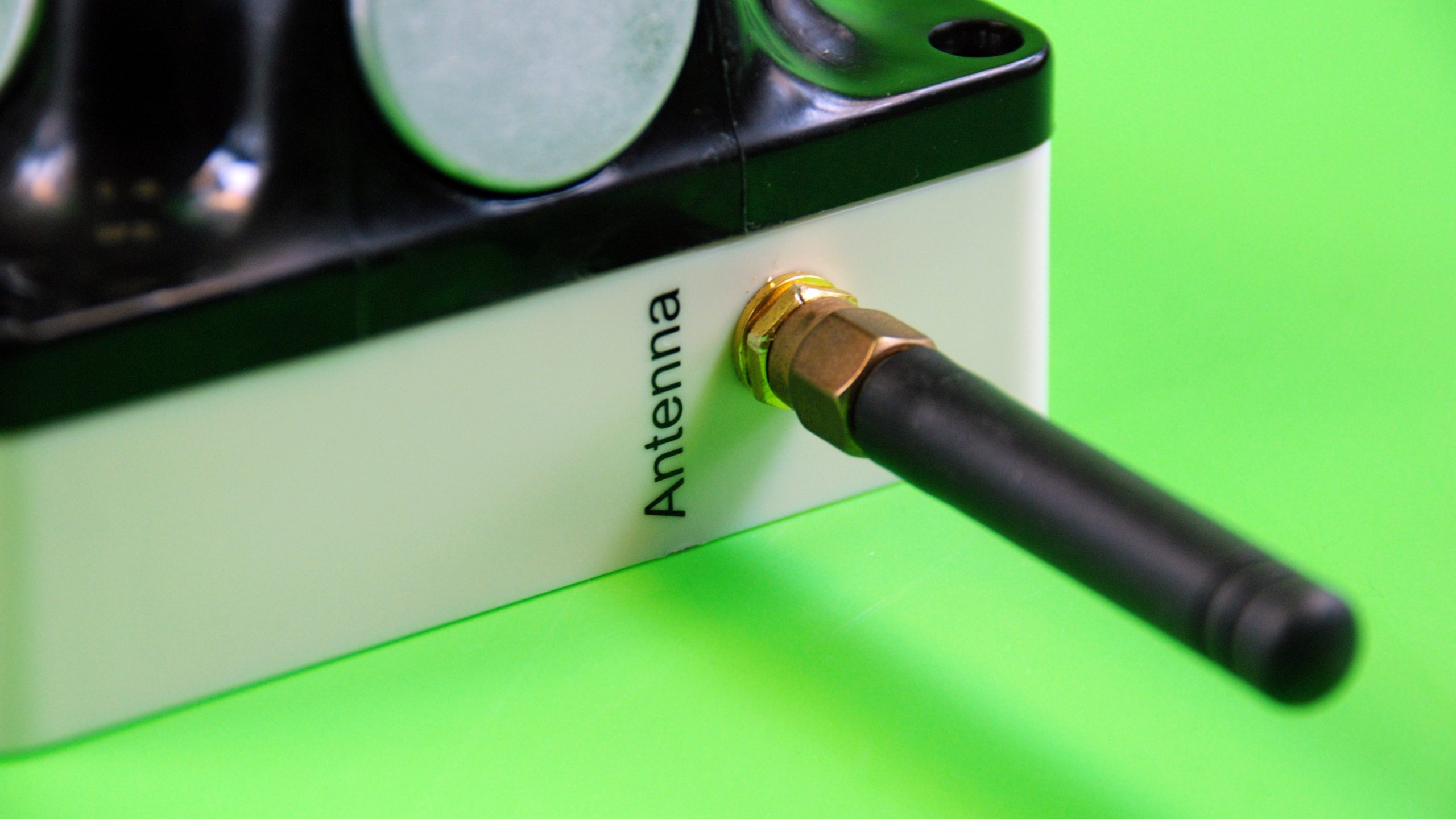

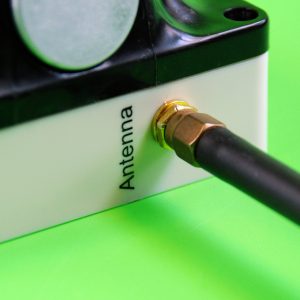

  • External antenna with SMA connector for extended radio range
  • Currently, supports license-free 915MHz ISM band (US) and license-free SRD band 868MHz (EU). Future 433MHz HW variant is available upon request

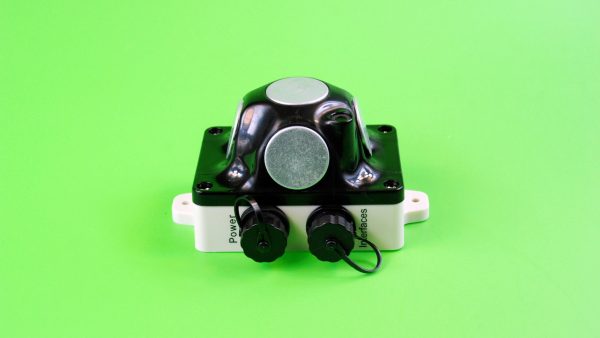

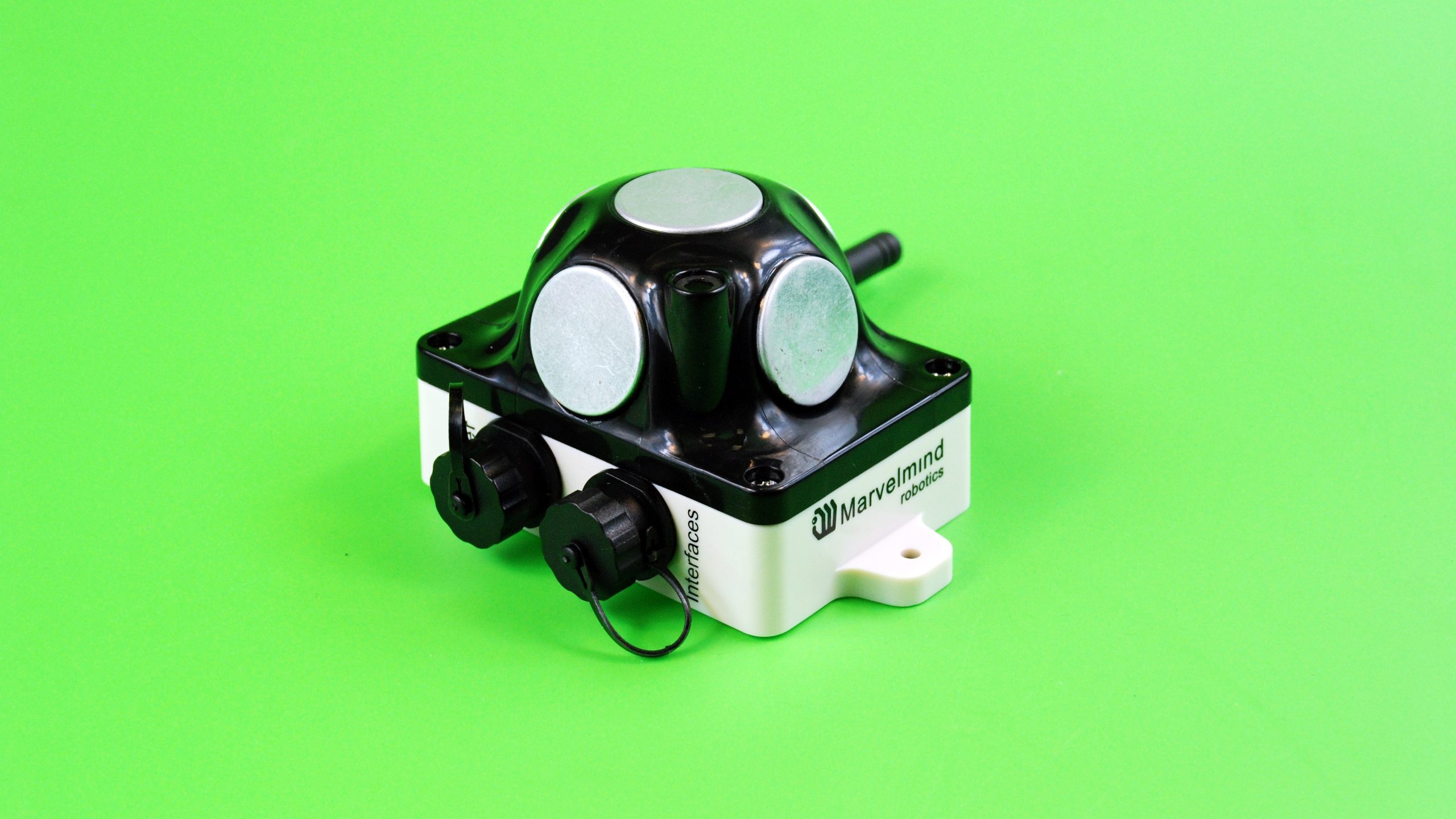

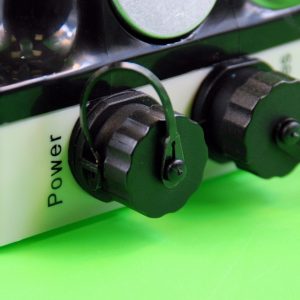

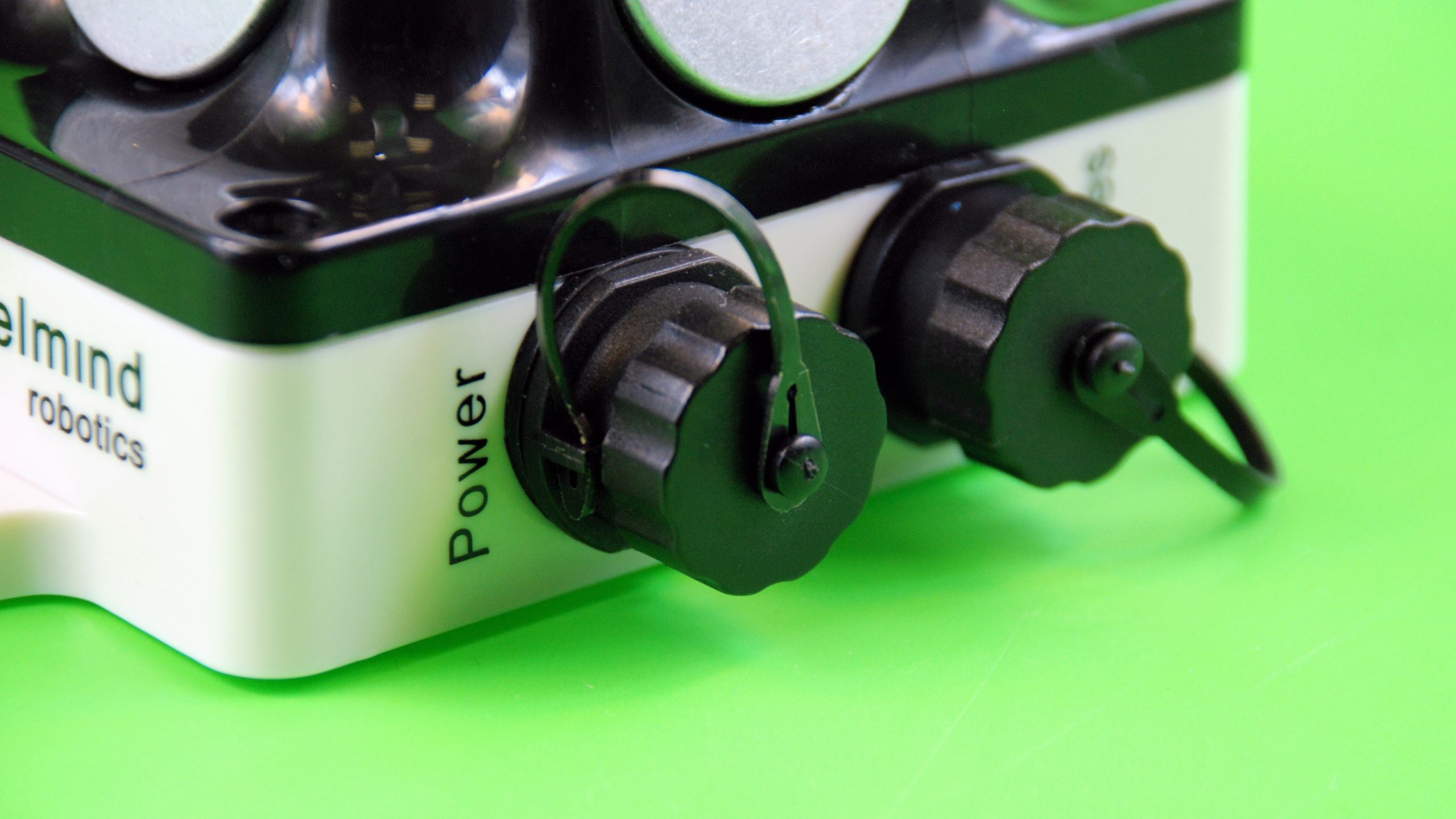

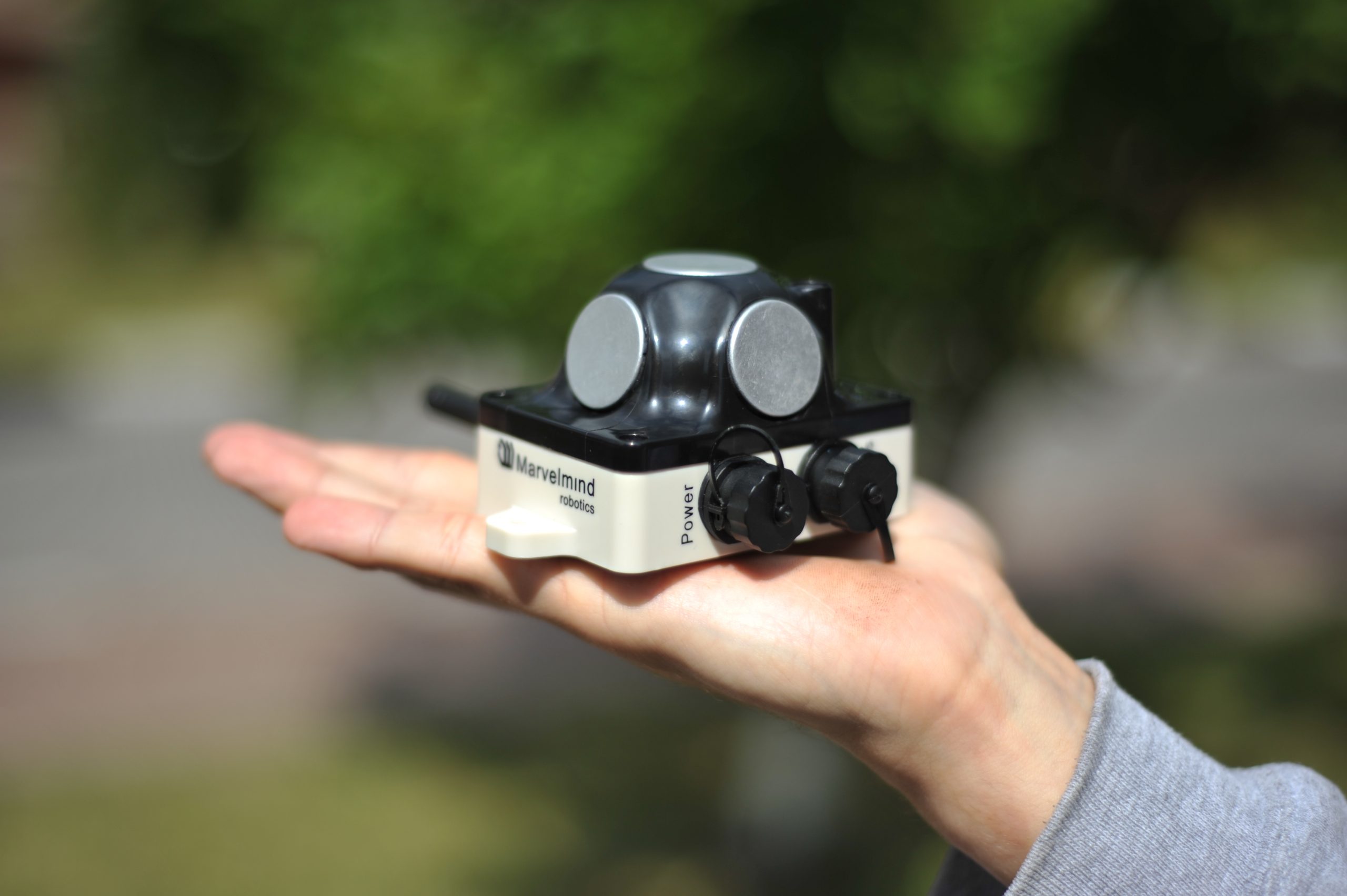

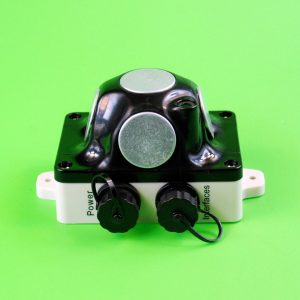

  • Two IP67 external connectors:
    1. Power:
      • +5V (older version supported +12V power supply (works from +6V till +15V)) – the same as Industrial-RX
      • Reset pin
      • DFU pin
      • GND
    2. Interfaces :
      • RS485
      • UART 3.3V
      • USB (TX+RX)
      • GND
  • Corresponding IP67 connectors (male part) included
  • No battery inside by default – external power bank or external power supply (+5V (older hardware version supported +12V)). An optional variant with an internal battery is available on request
  • Extended working temperature range: -40C…+50C (provided by design – not tested, not certified). No battery inside – for the extended negative temperature range
  • Embedded reset switch and DFU switch – magnetic control or external pins on IP67
  • Can work with Industrial Beacons, Super-Beacons, Super-Beacons-Outdoor, and Mini-RX beacons in NIA and IA. In all cases, the radio bands must match
  • Recommended ultrasonic range – up to 30m – depending on the ultrasound frequency. See more: How to choose ultrasound frequency for beacons
  • Radio range to modem – up to a few hundred meters in open space with full-size antennas. See more: Radio connectivity – essential hints
  • Optional external IP67 converter ~110/220V to +5V or optional IP67 battery

This sales item is shipped using a Shipping & Handling fee (Complexity I) due to its larger weight than Super-Beacons.

Description

Industrial Super-Beacon-Metal is equipped with metal IP67 25kHz ultrasonic transducers. See detailed specifications for the Industrial Super-Beacon.

All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip.

  • Designed for outdoor and industrial applications
  • Supports dual-use – ultrasound-receiving and ultrasound-transmitting beacon
  • It can transmit on its native ultrasonic frequency (25kHz) and it can receive on any ultrasonic frequency (19/22/25/28/31/34/37/45 kHz)
  • The beacon supports both IA and NIA architectures. Thus, it is called Industrial Super-Beacon
  • Very solid and up to IP67 level protection
  • Special IP67-protected 25-kHz transducers
  • External antenna with SMA connector for extended radio range
  • Currently, supports license-free 915MHz ISM band (US) and license-free SRD band 868MHz (EU). Future 433MHz HW variant is available upon request
  • Two IP67 external connectors:
    1. Power:
      • +5V (older version supported +12V power supply (works from +6V till +15V)) – the same as Industrial-RX
      • Reset pin
      • DFU pin
      • GND
    2. Interfaces :
      • RS485
      • UART 3.3V
      • USB (TX+RX)
      • GND
  • Corresponding IP67 connectors (male part) included
  • No battery inside by default – external power bank or external power supply (+5V (older hardware version supported +12V)). An optional variant with an internal battery is available on request
  • Extended working temperature range: -40C…+50C (provided by design – not tested, not certified). No battery inside – for the extended negative temperature range
  • Embedded reset switch and DFU switch – magnetic control or external pins on IP67
  • Can work with Industrial Beacons, Super-Beacons, Super-Beacons-Outdoor, and Mini-RX beacons in NIA and IA. In all cases, the radio bands must match
  • Recommended ultrasonic range – up to 30m – depending on the ultrasound frequency. See more: How to choose ultrasound frequency for beacons
  • Radio range to modem – up to a few hundred meters in open space with full-size antennas. See more: Radio connectivity – essential hints
  • Optional external IP67 converter ~110/220V to +5V or optional IP67 battery

This sales item is shipped using a Shipping & Handling fee (Complexity I) due to its larger weight than Super-Beacons.

Additional information

Frequency

433 MHz (EU), 915 MHz (US)

Questions and Answers


mohamed
3 years 1 month ago

we want to use this beacon outside where the temperature exceeds 50 degrees,
can we have more operating temperature?

admin
3 years 1 month ago

We haven’t done formal environmental tests. But these beacons are designed for applications like yours. It shall work without problems, particularly, because there is not battery inside and overall internal power dissipation is tiny.
Again, if you want to be super-confident before a full-scale deployment, try with the smallest configuration and see the performance in your real conditions.
