Description

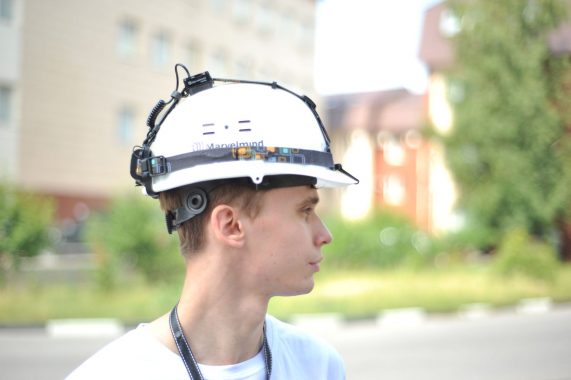

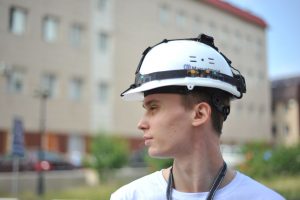

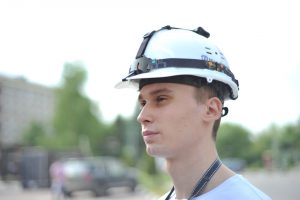

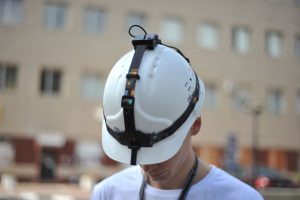

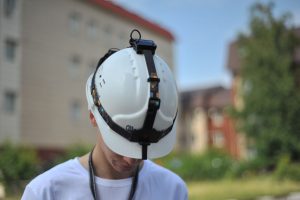

Marvelmind Headlight is a special version of mobile beacon for helmets, when Marvelmind Helmet can’t be used for some reason, but 3rd party helmets must be tracked. The Headlight is installed on top of virtually any helmet with special clips. All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip. Marvelmind Headlight works in the Inverse Architecture (IA) only and is designed for tracking people in warehouses, assembly plants, construction sites and similar environments – similar to Marvelmind Helmet. But Headlight has an additional external battery pack that provides up to 8 time longer working time than that in Marvelmind Helmet (the batteries are standard 18650 size are not included). The recommended configuration for Headlight is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because Headlight may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge. Marvelmind Headlight includes Mini-RX and 2 additional external microphones for more robust and reliable tracking in complex environments. There is also an additional power pack for external 18650 batteries. Demos (tracking is similar to Marvelmind Helmet): –  Marvelmind Helmet for warehousing and plants Lead time – several days. This sales item is shipped using Shipping & Handling fee (Complexity I).

Distance to beacons

  • Reaches up to 25 meters

Location precision

  • ±20 cm – split triple microphone

Location update rate and latency

Inverse Architecture:

  • 4–8Hz. Can be set manually
  • Recommended – overlapping submaps in TDMA mode

Power supply and battery lifetime

Internal:

  • LiPol battery 750mAh – embedded in Mini-RX
  • Additional power pack for 2 x 18650 LiPol batteries
  • Battery lifetime totally depends on usage, map configurations, update rate. With 8Hz update rate => up to 1-2 week or more

External:

  • microUSB – for charging

Description

Marvelmind Headlight is a special version of mobile beacon for helmets, when Marvelmind Helmet can’t be used for some reason, but 3rd party helmets must be tracked. The Headlight is installed on top of virtually any helmet with special clips. All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip. Marvelmind Headlight works in the Inverse Architecture (IA) only and is designed for tracking people in warehouses, assembly plants, construction sites and similar environments – similar to Marvelmind Helmet. But Headlight has an additional external battery pack that provides up to 8 time longer working time than that in Marvelmind Helmet (the batteries are standard 18650 size are not included). The recommended configuration for Headlight is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because Headlight may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge. Marvelmind Headlight includes Mini-RX and 2 additional external microphones for more robust and reliable tracking in complex environments. There is also an additional power pack for external 18650 batteries. Demos (tracking is similar to Marvelmind Helmet): –  Marvelmind Helmet for warehousing and plants Lead time – several days. This sales item is shipped using Shipping & Handling fee (Complexity I).

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm

Questions and Answers
