Description

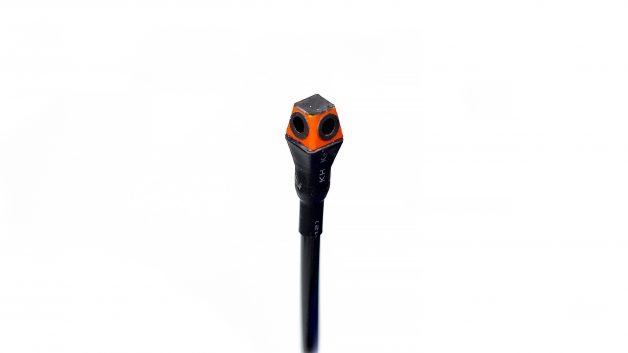

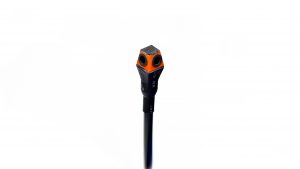

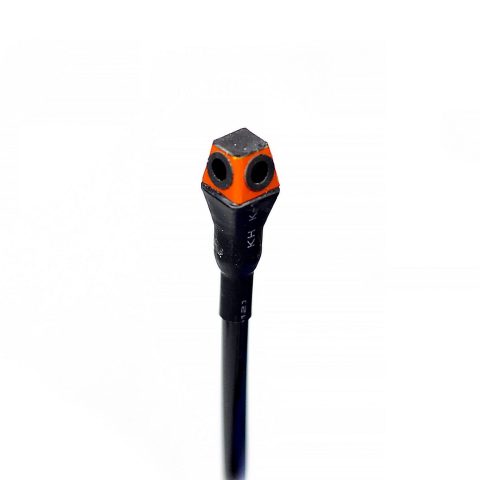

Omni-microphone is an advanced all-directions microphone for robots and forklifts when the highest performance and the largest submaps are required.

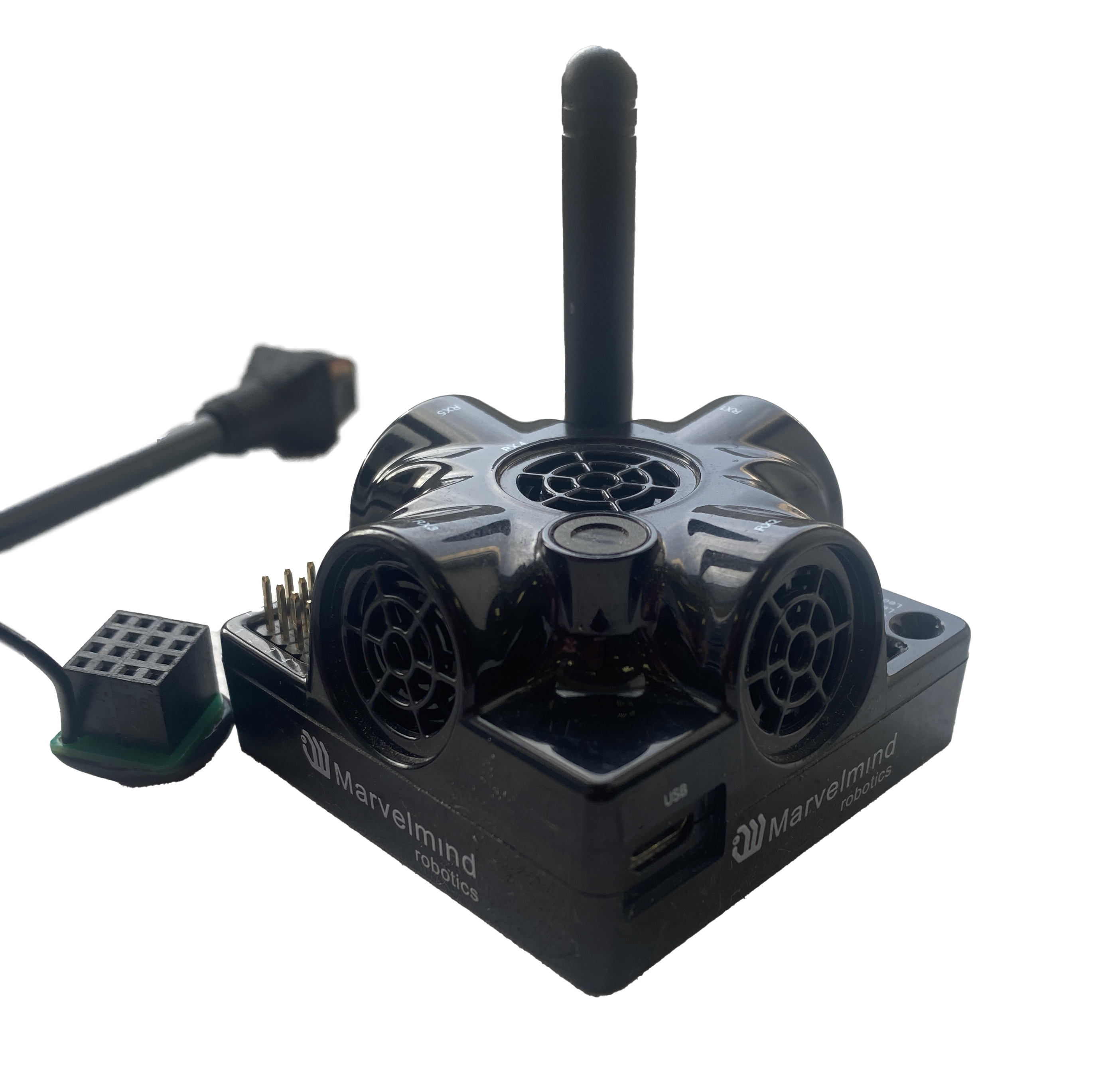

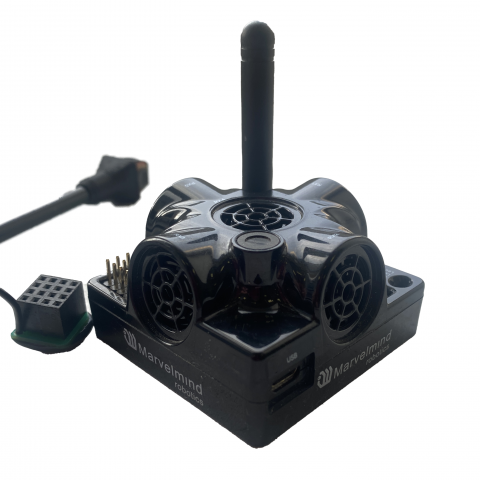

  • Omni-Microphone is an external microphone that can be used along with Super-Beacons and Mini-RXs. On request, it can also be used along with Industrial-RX and Industrial Super-Beacons. The later support in HW and SW, but additional modification of housings is required
  • It has a super-wide 360×360-degree beam, i.e. omni-directional pattern
  • It is possible to enable and receive signal from any of the microphones separately, thus, to disable a noise source from an unwanted direction, because the Omni-Microphone consists of 4 external microphones back to back
  • The Omni-Microphone is great for Direction + Location, for example, for robot’s
  • It is highly recommended for larger submaps (25m+) or when a particularly guaranteed and robust tracking of a forklift or similar mobile object on the largest possible distance. See video below for more info about microphone diagrams
  • The microphone is IP67 protected by special membranes and compound

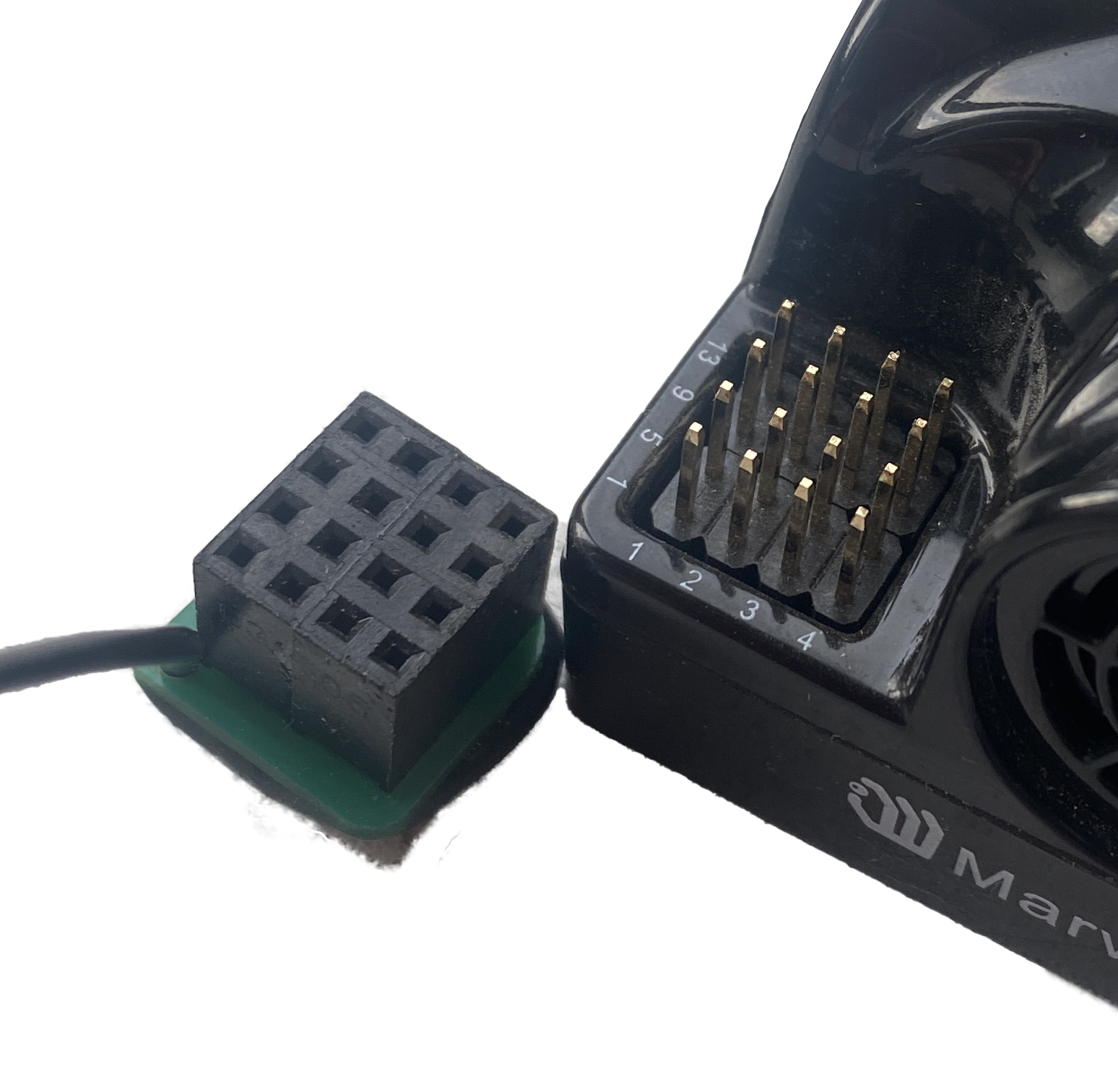

  • The microphone requires soldering. There are easy to use pins on the board and connectivity is described in the Operating Manual

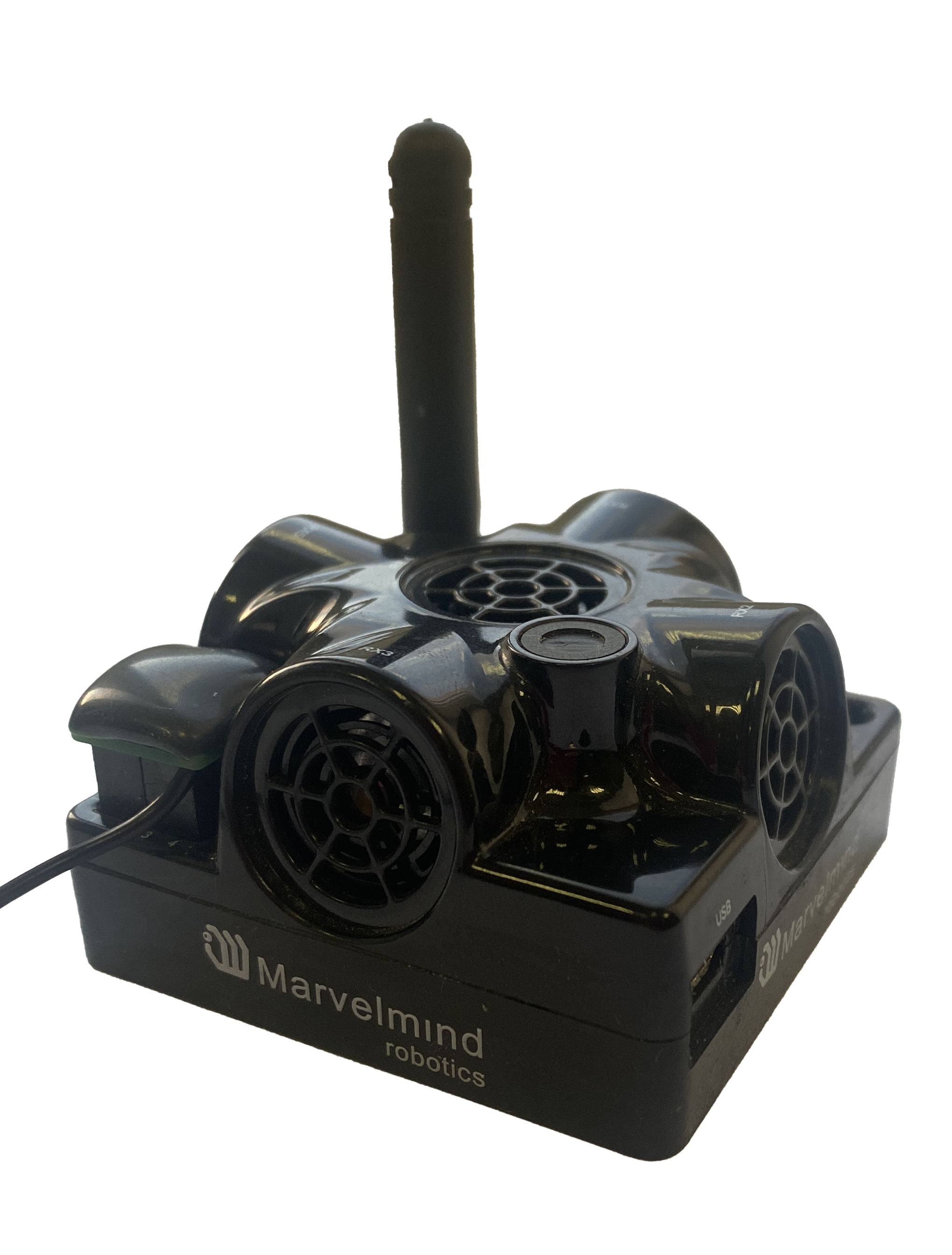

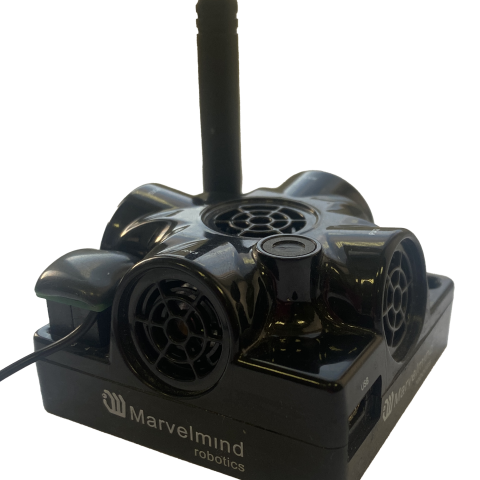

  • Only one Omni-Microphone can be connected to a Super-Beacon or to a Mini-RX, because, effectively, there are four microphones inside already

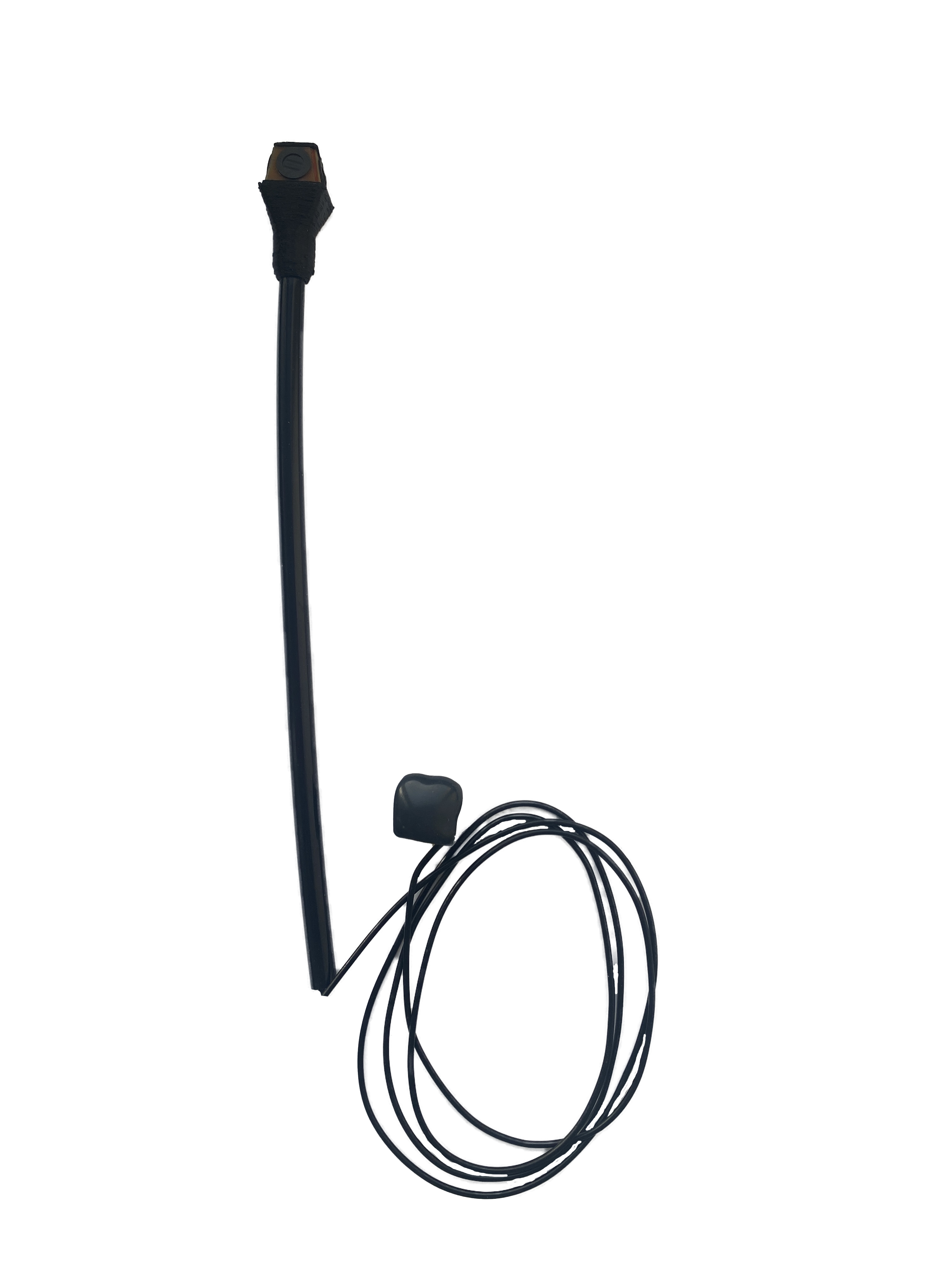

  • The default cable length is 20-25cm. Optionally, it is possible to have the Omni-Microphone with up to 1m-cable

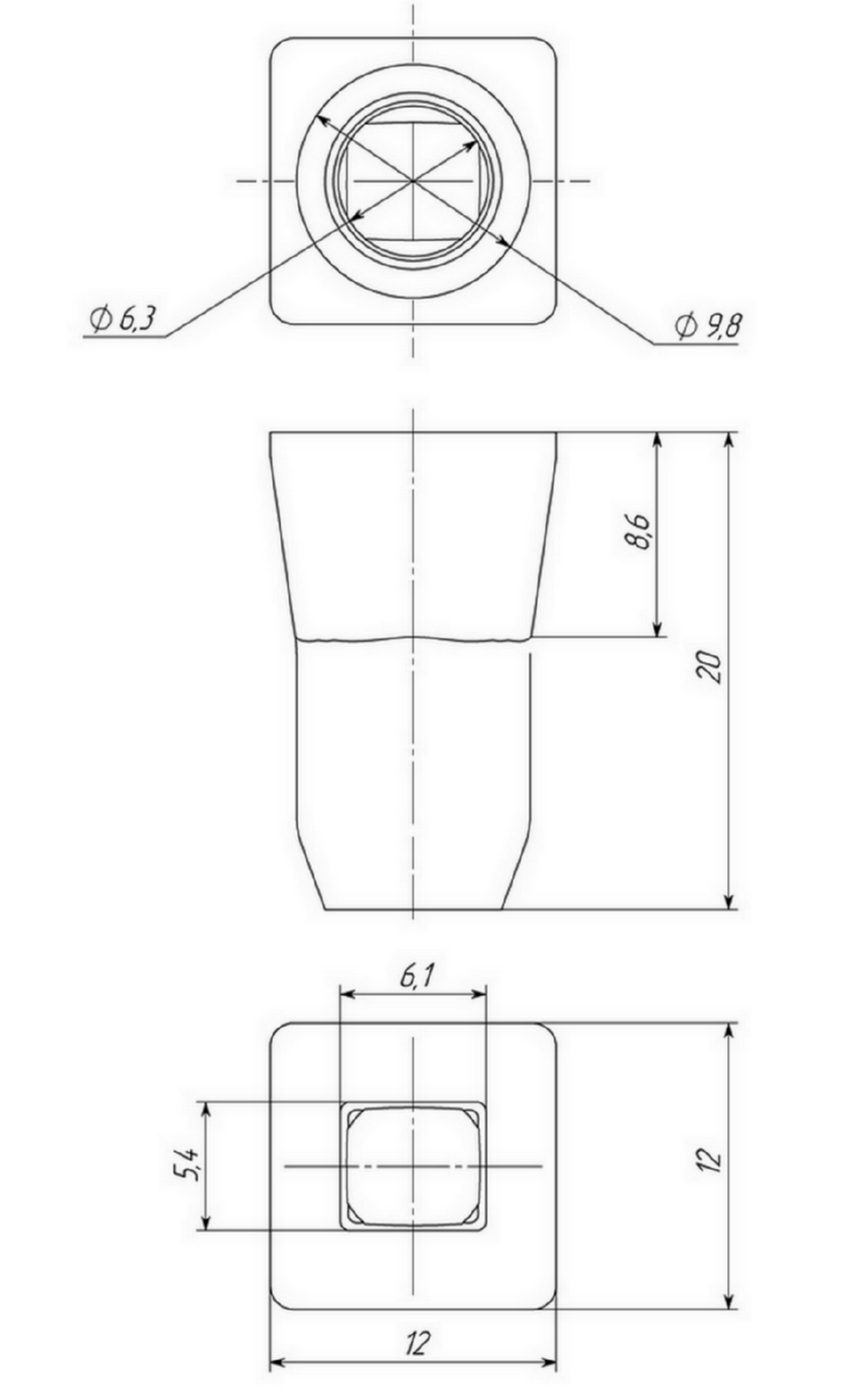

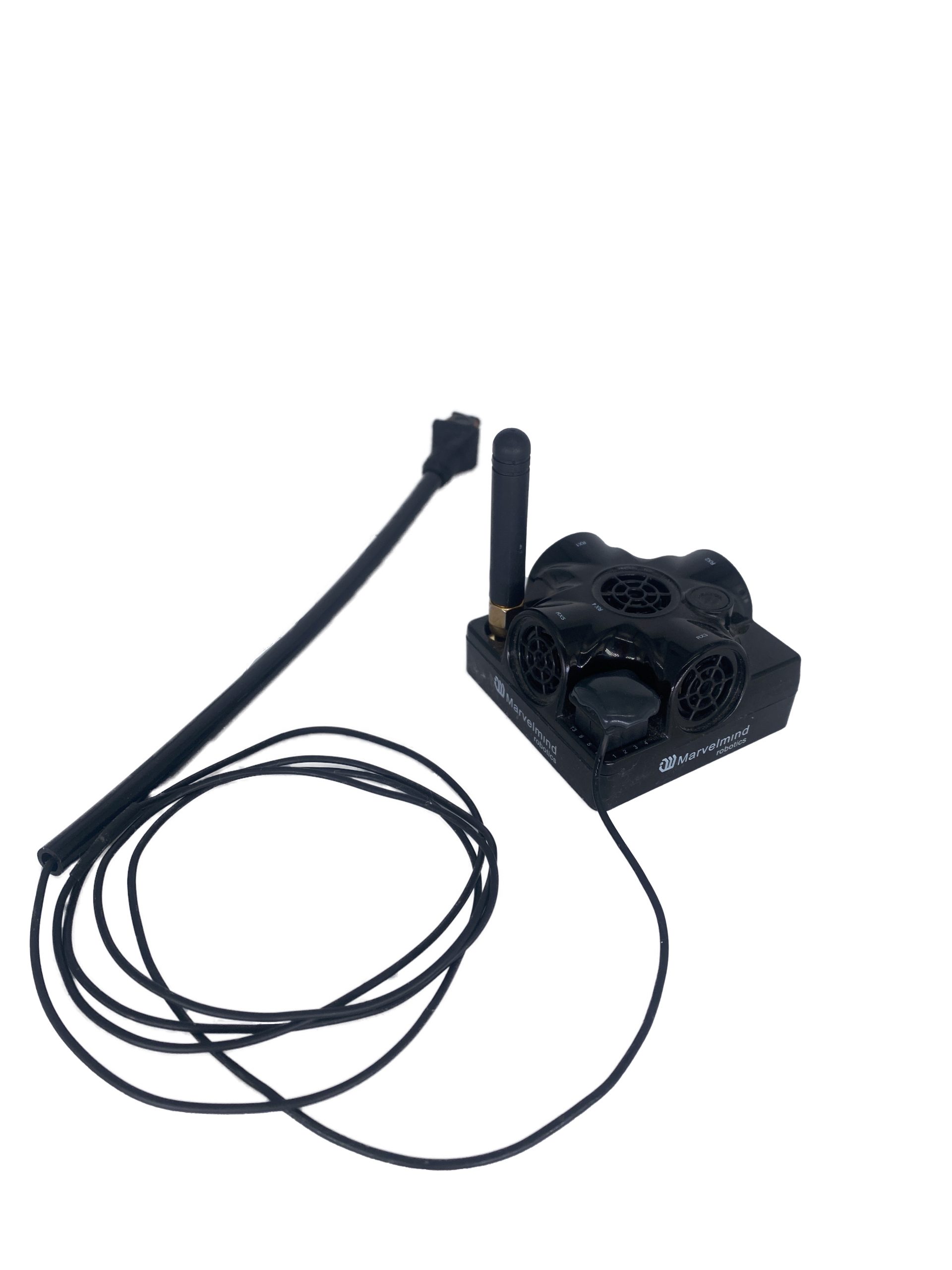

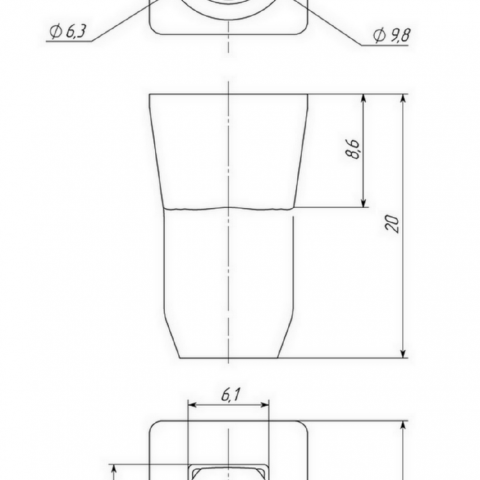

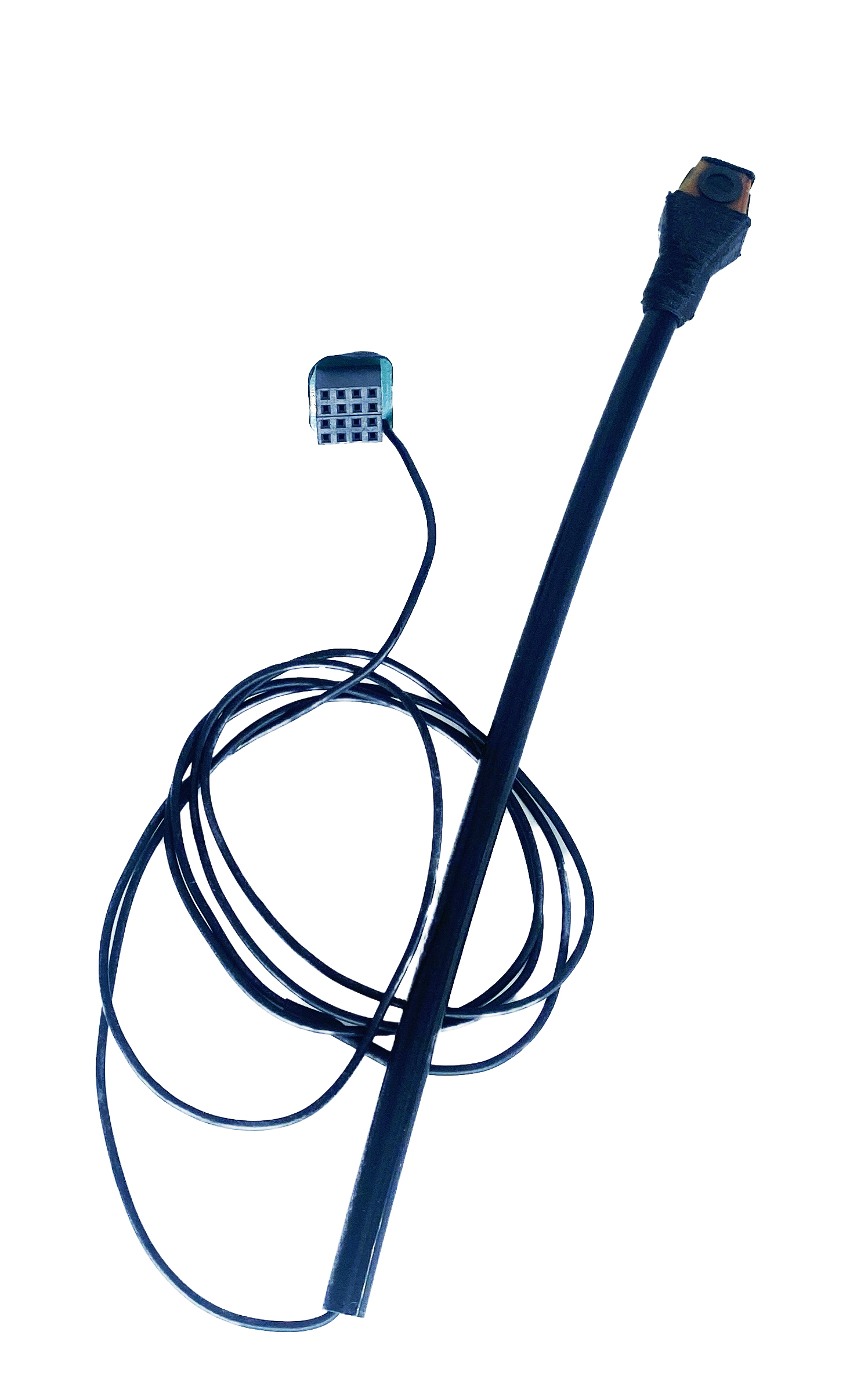

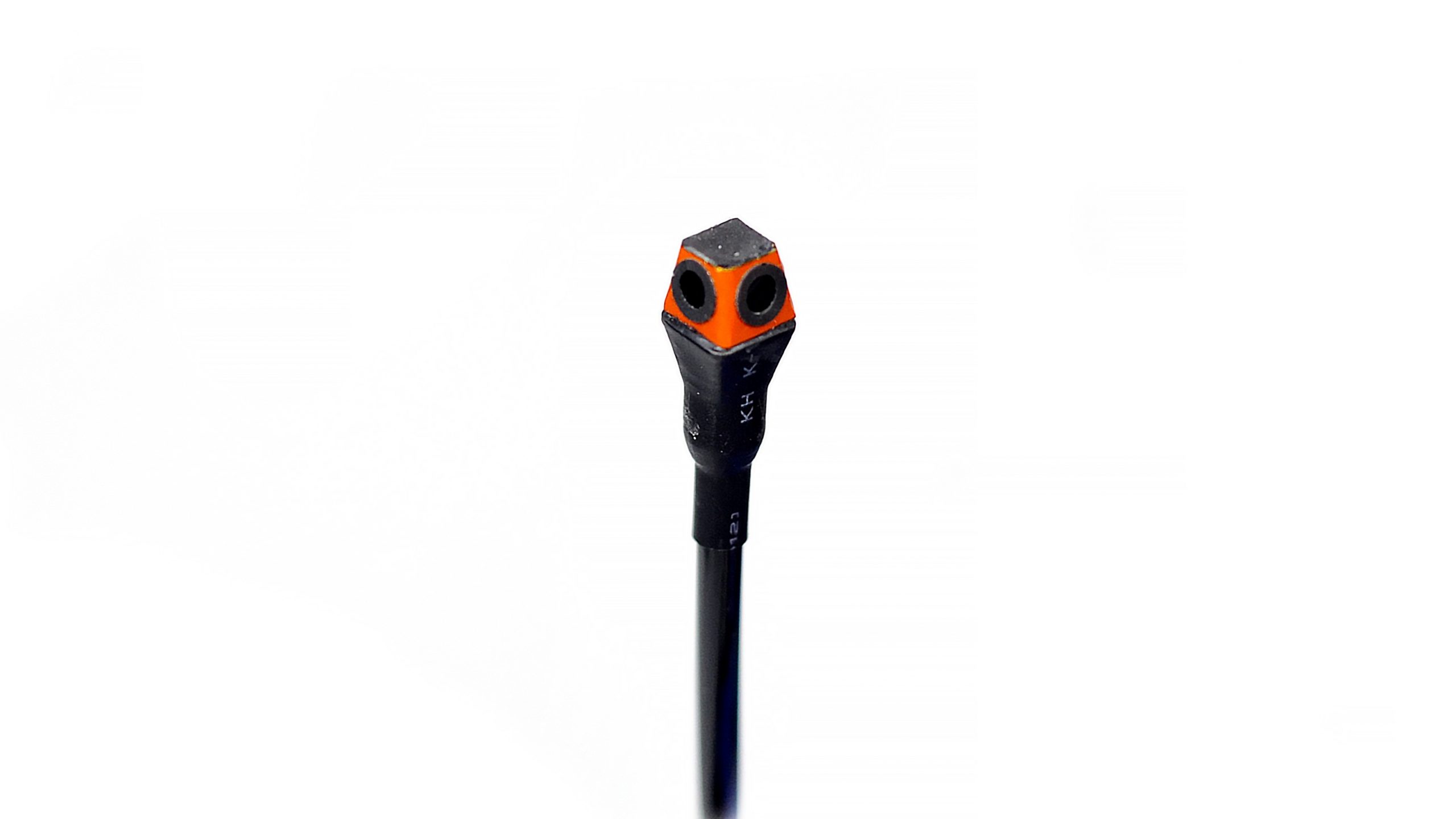

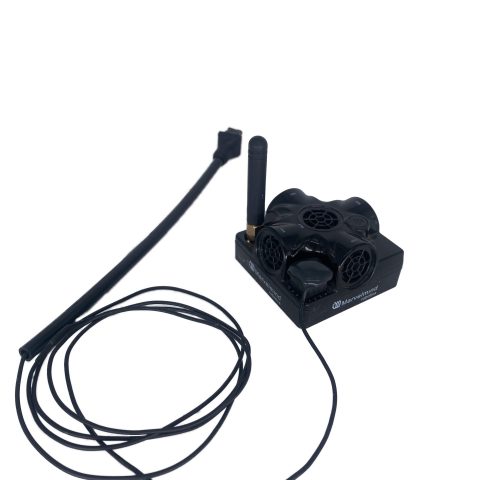

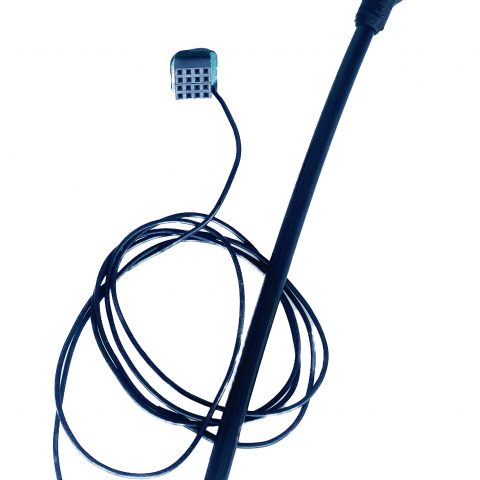

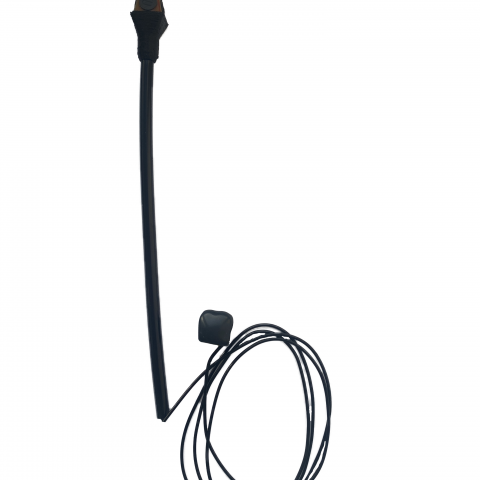

  • By default, the microphone is shipped with a 2mm-flexible cable ready for soldering. On request, it can be supplied with a flexible mounting tube for easy installation on a forklift or a robot – “antenna-like configuration”. Let us know about your preferences and the desired length when ordering. There are other mounting options as well
  • Read more about connectivity to beacons in the Operating Manual

This sales item is shipped using Shipping & Handling fee (Complexity I).

Omni-Microphone with Boxie

Omni-Microphone with Robot v100

About microphone's diagrams

Description

Omni-microphone is an advanced all-directions microphone for robots and forklifts when the highest performance and the largest submaps are required.



  • Omni-Microphone is an external microphone that can be used along with Super-Beacons and Mini-RXs. On request, it can also be used along with Industrial-RX and Industrial Super-Beacons. The later support in HW and SW, but additional modification of housings is required
  • It has a super-wide 360×360-degree beam, i.e. omni-directional pattern
  • It is possible to enable and receive signal from any of the microphones separately, thus, to disable a noise source from an unwanted direction, because the Omni-Microphone consists of 4 external microphones back to back
  • The Omni-Microphone is great for Direction + Location, for example, for robot’s
  • It is highly recommended for larger submaps (25m+) or when a particularly guaranteed and robust tracking of a forklift or similar mobile object on the largest possible distance. See video below for more info about microphone diagrams
  • The microphone is IP67 protected by special membranes and compound
  • The microphone requires soldering. There are easy to use pins on the board and connectivity is described in the Operating Manual
  • Only one Omni-Microphone can be connected to a Super-Beacon or to a Mini-RX, because, effectively, there are four microphones inside already
  • The default cable length is 20-25cm. Optionally, it is possible to have the Omni-Microphone with up to 1m-cable
  • By default, the microphone is shipped with a 2mm-flexible cable ready for soldering. On request, it can be supplied with a flexible mounting tube for easy installation on a forklift or a robot – “antenna-like configuration”. Let us know about your preferences and the desired length when ordering. There are other mounting options as well
  • Read more about connectivity to beacons in the Operating Manual

This sales item is shipped using Shipping & Handling fee (Complexity I).

Omni-Microphone with Boxie

Omni-Microphone with Robot v100

About microphone's diagrams
