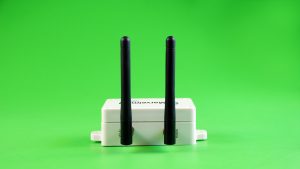

Description

Super-Modem is an upgraded version of the Modem HW v5.1-Outdoor with advanced capabilities. Additional features:

  • WiFi support for UDP streaming (now) and future remote control of the modem and the whole system via TCP-IP
  • Bluetooth (HW enabled but not yet supported in SW)
  • >1000x more RAM and >1000x Flash memory than Modem HW v5.1
  • Full-size bendable antenna by default
  • Higher ingress protection. Up to IP67 (optional)
  • Super-Modem’s HW supports Super-Modem and Super-Super-Modem functionality for Multi-Modem architecture: https://marvelmind.com/pics/marvelmind_presentation.pdf

Specs and features:

  • Designed for outdoor and industrial applications
  • External bendable antennas with SMA connectors for extended radio range included
  • Currently, it supports a license-free 915MHz ISM band (for example, US, Japan, Korea) and license-free SRD band 868MHz (EU, Russia). Future 433MHz HW variants are available upon request
  • Supports all types of beacons working in the 915/868MHz bands (among them: Super-Beacons, all Industrial beacons, Mini-RX, Helmets, Badges, Jackets, Watches, etc.)

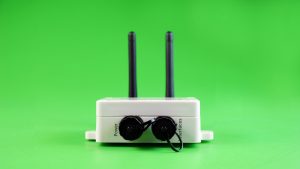

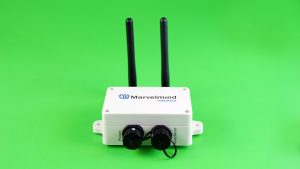

  • Two IP67 external connectors:
    1. Power:
      • +5V (older version supported +12V power supply (works from +6V till +15V)) – the same as Industrial-RX
      • Reset pin
      • DFU pin
      • GND
    2. Interfaces:
      • RS485
      • UART 3.3V
      • USB (TX+RX)
      • GND

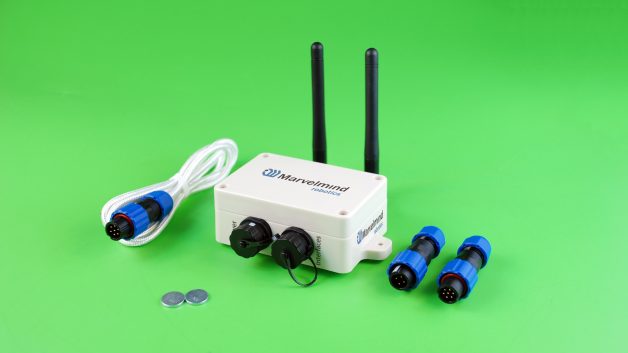

  • Corresponding IP67 connectors (male part) included
  • No battery inside by default – external power bank or external power supply (+5V (older hardware version supported +12V)
  • External battery is not practical for long-term due to relatively high and constant power consumption of 1.5-2W
  • Extended working temperature range: -40C…+50C (provided by design – not tested, not certified). No battery inside – for the extended negative temperature range
  • Embedded reset switch and DFU switch – magnetic control or external pins on IP67
  • Can work with Industrial Beacons, Super-Beacons, Super-Beacons-Outdoor, and Mini-RX beacons in NIA, MF NIA and IA. In all cases, the radio bands must match
  • Radio range to modem – up to a few hundred meters in open space with full-size antennas. See more: Radio connectivity – essential hints
  • WiFi range – a few tens of meters of open space
  • Optional external IP67 converter ~110/220V to +5V or optional IP67 battery
  • The same mounting holes as for Industrial beacons

Produced on request. Lead time – 3-5 days. This sales item is shipped using a Shipping & Handling fee (Complexity I).

Description

Super-Modem is an upgraded version of the Modem HW v5.1-Outdoor with advanced capabilities. Additional features:

  • WiFi support for UDP streaming (now) and future remote control of the modem and the whole system via TCP-IP
  • Bluetooth (HW enabled but not yet supported in SW)
  • >1000x more RAM and >1000x Flash memory than Modem HW v5.1
  • Full-size bendable antenna by default
  • Higher ingress protection. Up to IP67 (optional)
  • Super-Modem’s HW supports Super-Modem and Super-Super-Modem functionality for Multi-Modem architecture: https://marvelmind.com/pics/marvelmind_presentation.pdf

Specs and features:

  • Designed for outdoor and industrial applications
  • External bendable antennas with SMA connectors for extended radio range included
  • Currently, it supports a license-free 915MHz ISM band (for example, US, Japan, Korea) and license-free SRD band 868MHz (EU, Russia). Future 433MHz HW variants are available upon request
  • Supports all types of beacons working in the 915/868MHz bands (among them: Super-Beacons, all Industrial beacons, Mini-RX, Helmets, Badges, Jackets, Watches, etc.)
  • Two IP67 external connectors:
    1. Power:
      • +5V (older version supported +12V power supply (works from +6V till +15V)) – the same as Industrial-RX
      • Reset pin
      • DFU pin
      • GND
    2. Interfaces:
      • RS485
      • UART 3.3V
      • USB (TX+RX)
      • GND
  • Corresponding IP67 connectors (male part) included
  • No battery inside by default – external power bank or external power supply (+5V (older hardware version supported +12V)
  • External battery is not practical for long-term due to relatively high and constant power consumption of 1.5-2W
  • Extended working temperature range: -40C…+50C (provided by design – not tested, not certified). No battery inside – for the extended negative temperature range
  • Embedded reset switch and DFU switch – magnetic control or external pins on IP67
  • Can work with Industrial Beacons, Super-Beacons, Super-Beacons-Outdoor, and Mini-RX beacons in NIA, MF NIA and IA. In all cases, the radio bands must match
  • Radio range to modem – up to a few hundred meters in open space with full-size antennas. See more: Radio connectivity – essential hints
  • WiFi range – a few tens of meters of open space
  • Optional external IP67 converter ~110/220V to +5V or optional IP67 battery
  • The same mounting holes as for Industrial beacons

Produced on request. Lead time – 3-5 days. This sales item is shipped using a Shipping & Handling fee (Complexity I).

Questions and Answers


T. Sakanashi
1 year 5 months ago

Hi
Above mentioned “supports license-free 915MHz ISM band (for example, US, Japan, Korea) and license-free SRD band 868MHz (EU, Russia). “.

Please advise certification number of ISM band(U.S.and Korea) and SRD band (EU, Russia).

1 year 5 months ago

We have the HW and SW support for those bands and used the same radio modules as used in the certified Super-Beacons and Modem HW v5.1. But we haven’t applied and haven’t received any certifications for this item yet. As soon as there is sufficiently large business case, we will do the certification in ~1.5 months.
