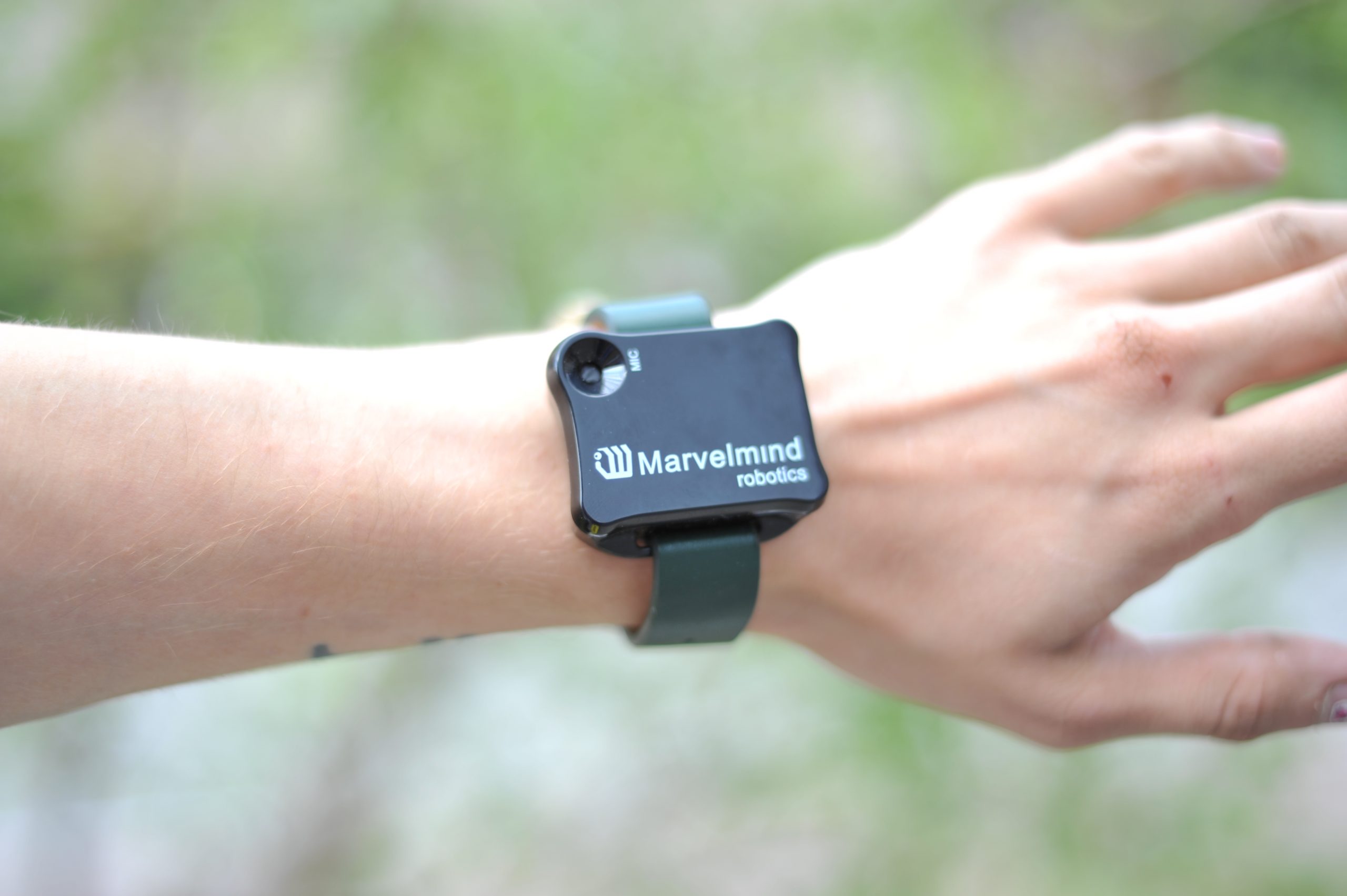

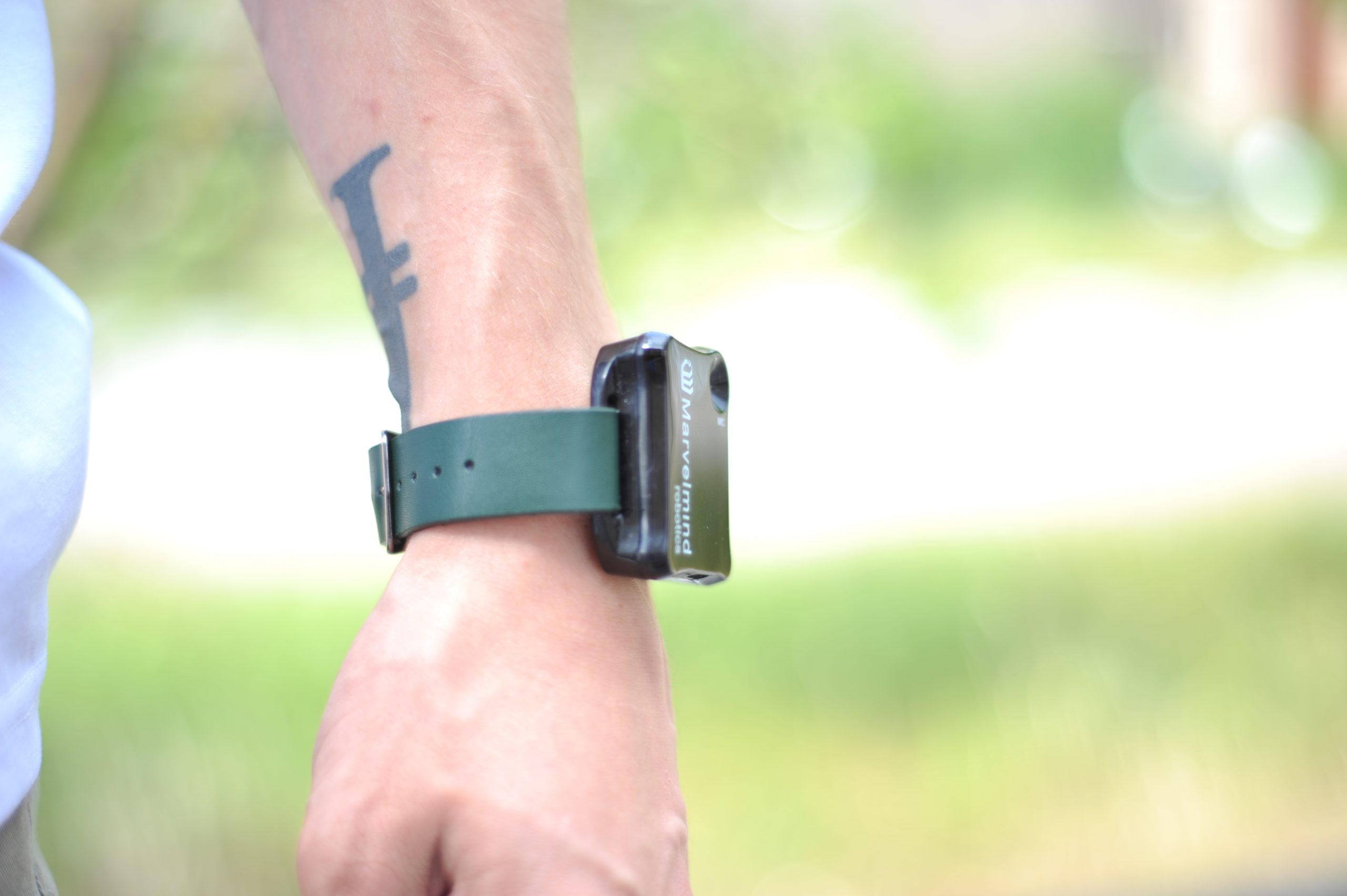

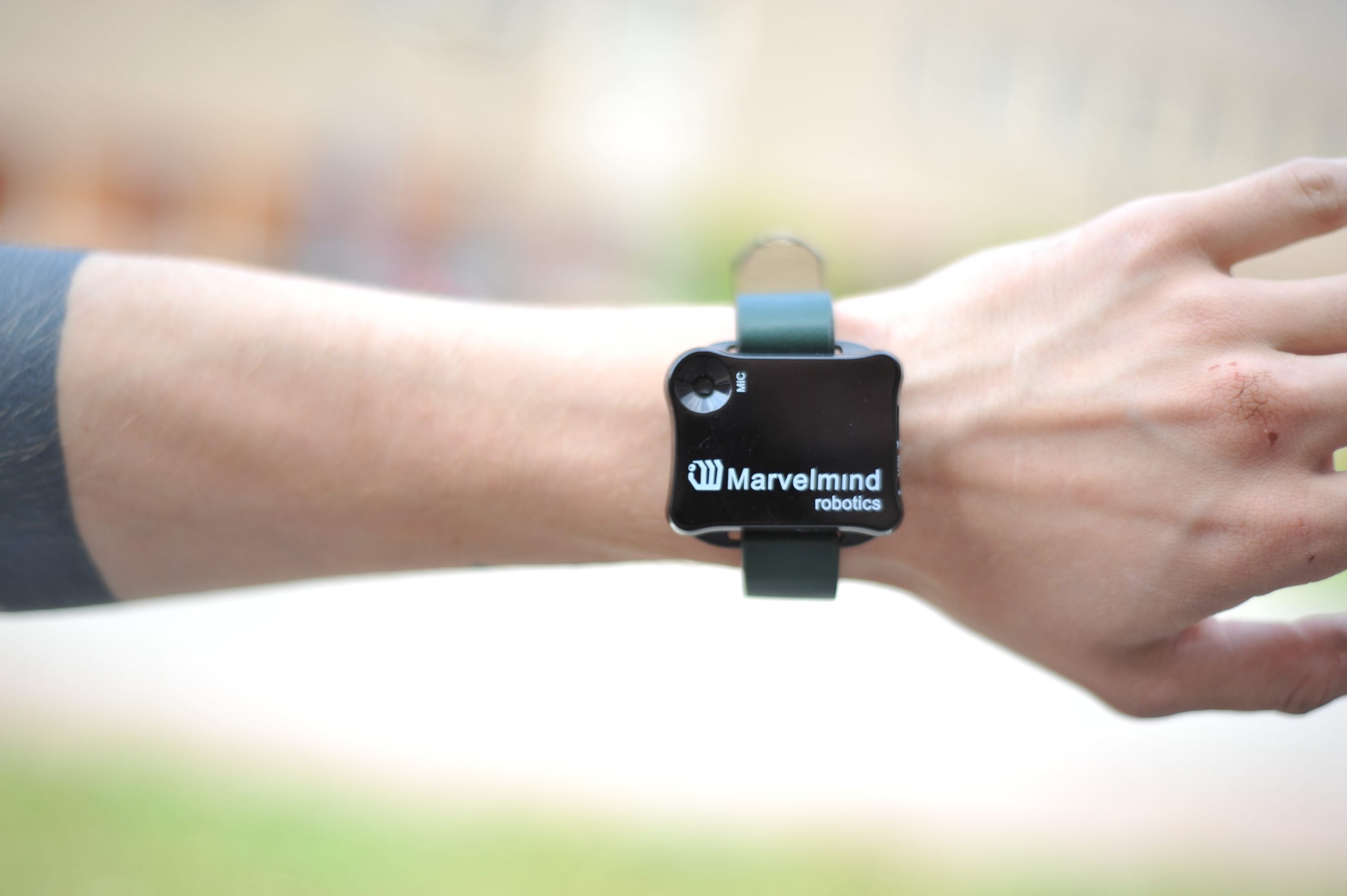

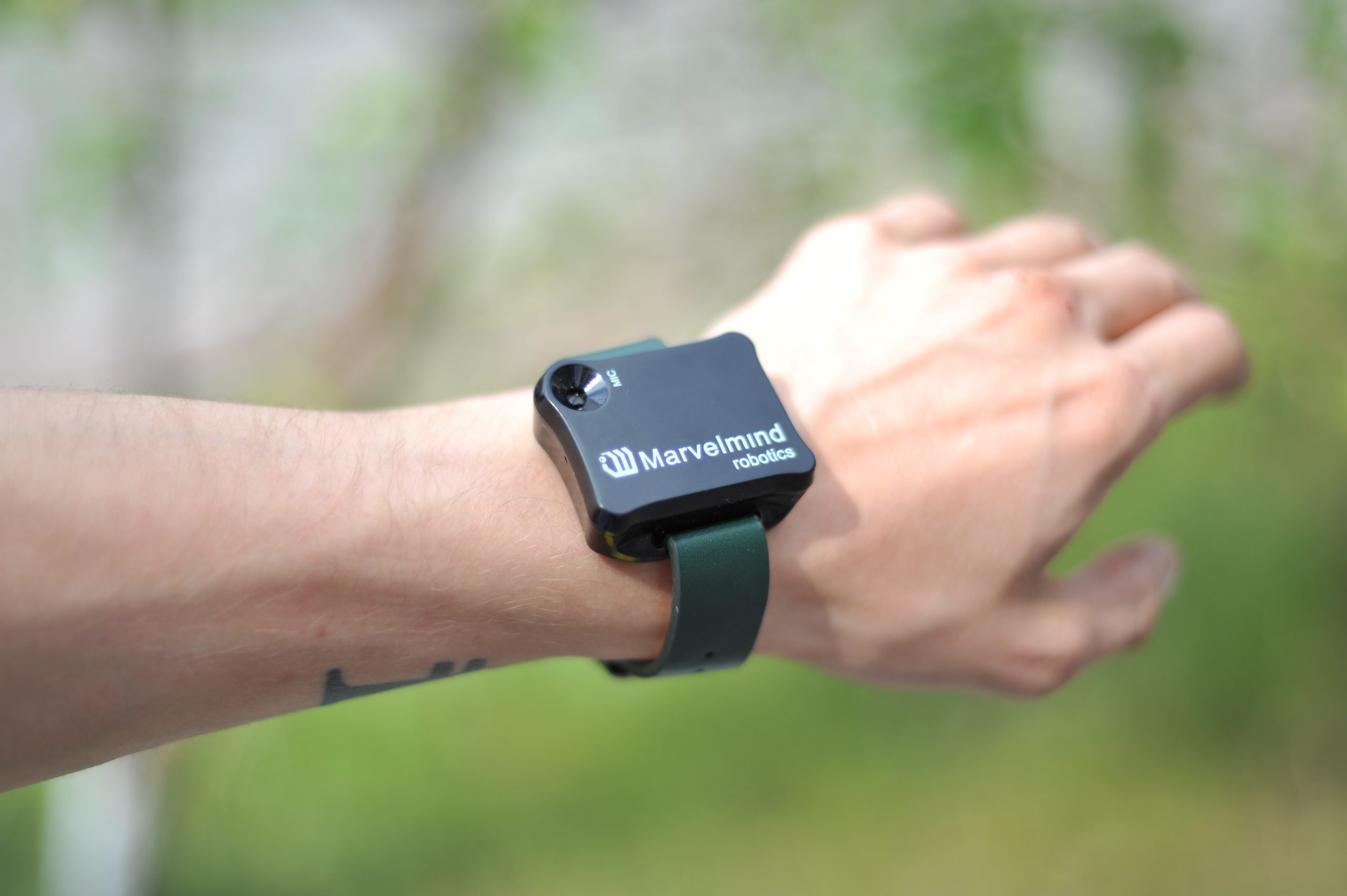

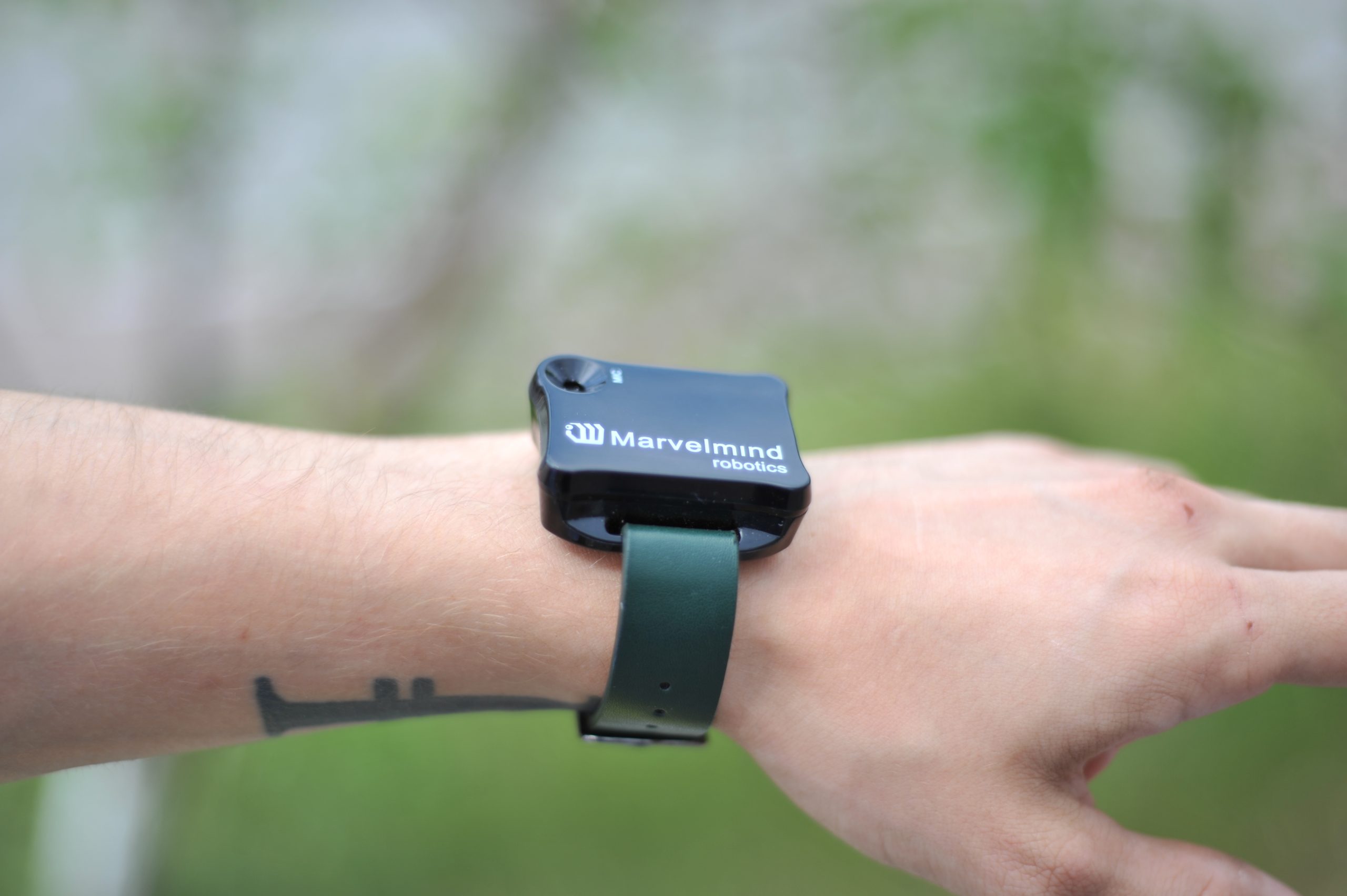

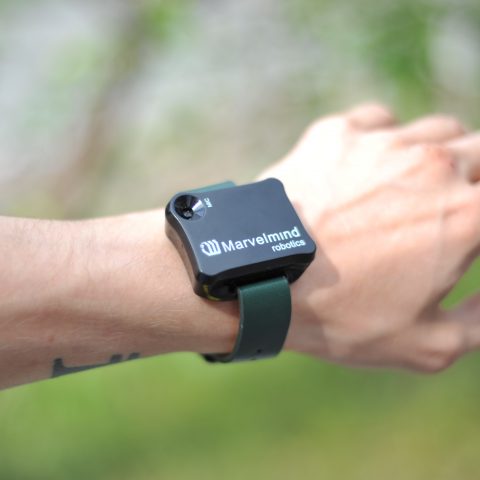

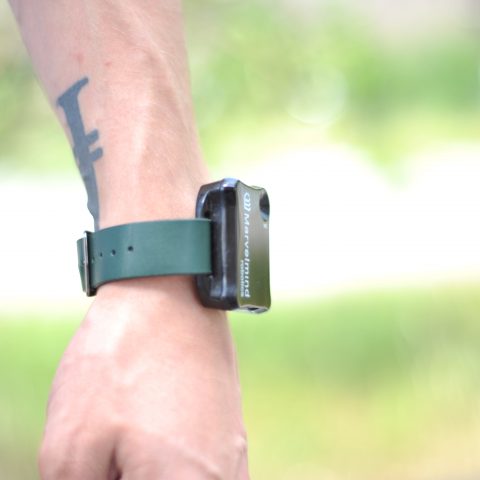

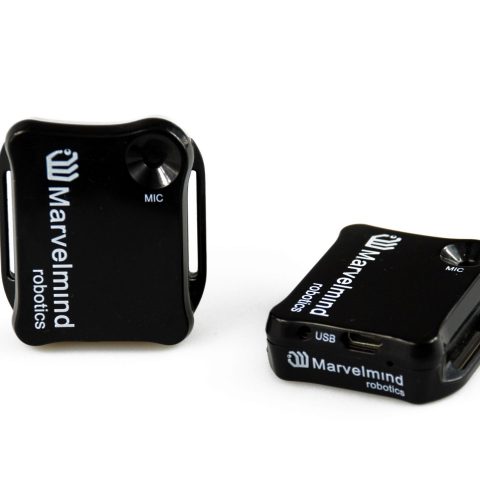

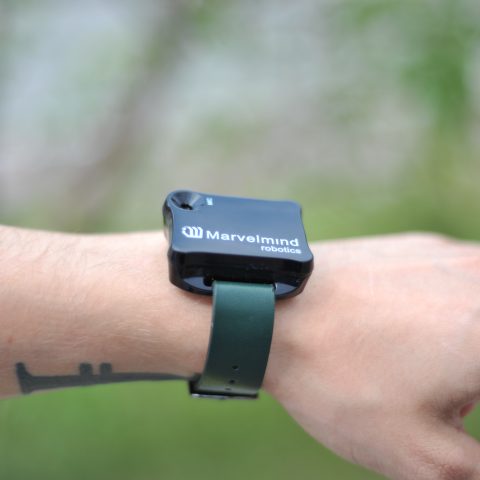

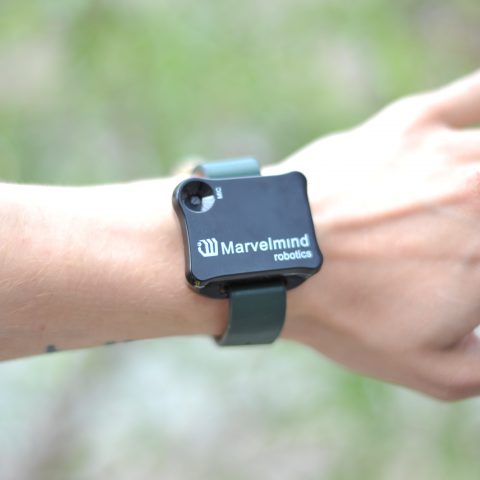

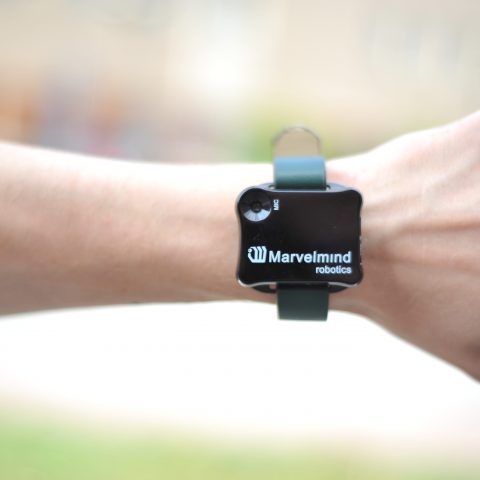

Marvelmind Watch works in the Inverse Architecture (IA). It is designed for tracking people in events, conferences, museums, and exhibitions, when other – more robust mobile beacons – can’t be used for some reasons. All essential SW, as well as Marvelmind Dashboard API, are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip. This is an IA-only system. Use IA SW from the SW pack: https://marvelmind.com/pics/marvelmind_SW.zip. The recommended configurations for Watch are 915/868MHz band with 8Hz update rate and Real-Time Player enabled, and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Watch is based on Mini-RX. Demos: – Room-level tracking
Distance to beacons
Reaches up to 25 meters
Location precision
±2 cm
Location update rate and latency
Inverse Architecture:
4–8Hz. Can be set manually
Recommended – overlapping submaps in TDMA mode
Power supply and battery lifetime
Internal:
LiPol battery 750mAh
Battery lifetime totally depends on usage, map configurations, update rate. With 8Hz update rate => up to 30h
External:
microUSB – for charging
Weight
35g
Description
Marvelmind Watch works in the Inverse Architecture (IA). It is designed for tracking people in events, conferences, museums, and exhibitions, when other – more robust mobile beacons – can’t be used for some reasons. All essential SW, as well as Marvelmind Dashboard API, are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip. This is an IA-only system. Use IA SW from the SW pack: https://marvelmind.com/pics/marvelmind_SW.zip. The recommended configurations for Watch are 915/868MHz band with 8Hz update rate and Real-Time Player enabled, and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Watch is based on Mini-RX. Demos: – Room-level tracking
Additional information
Weight
0.025 kg
Dimensions
4.7 × 4.2 × 1.5 cm
Questions and Answers
Koen van Strien
2 years 6 months ago
Hey,
I want to apply this watch to an assembly line. The dimensions for the measurement are approximately 10mx20m. Is this the right thing to use for that? Do I need to purchase anything else besides the watch?
Regards,
Koen
admin
2 years 6 months ago
Hello,
Yes, the Watch is particularly suitable for the applications like wrists tracking, assembly line teaching and optimization. It is not much suitable for regular people tracking. That is more the Badge‘s role or the Helmet‘s/Jacket‘s role.
With this configuration, you would be able to cover up to ~25-30m of the assembly line. If you need to track more wrists, just add more Watches. If you want to cover more product line, then add more stationary beacons: https://marvelmind.com/pics/Marvelmind_Robotics_ENG_placement_manual.pdf.
This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish.AcceptRejectRead More
Privacy & Cookies Policy
Privacy Overview
This website uses cookies to improve your experience while you navigate through the website. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may affect your browsing experience.
Necessary cookies are absolutely essential for the website to function properly. This category only includes cookies that ensures basic functionalities and security features of the website. These cookies do not store any personal information.
Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. It is mandatory to procure user consent prior to running these cookies on your website.
Description
Marvelmind Watch works in the Inverse Architecture (IA). It is designed for tracking people in events, conferences, museums, and exhibitions, when other – more robust mobile beacons – can’t be used for some reasons. All essential SW, as well as Marvelmind Dashboard API, are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip. This is an IA-only system. Use IA SW from the SW pack: https://marvelmind.com/pics/marvelmind_SW.zip. The recommended configurations for Watch are 915/868MHz band with 8Hz update rate and Real-Time Player enabled, and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Watch is based on Mini-RX. Demos: – Room-level tracking
Additional information
Questions and Answers
Hey,
I want to apply this watch to an assembly line. The dimensions for the measurement are approximately 10mx20m. Is this the right thing to use for that? Do I need to purchase anything else besides the watch?
Regards,
Koen
Hello,
Yes, the Watch is particularly suitable for the applications like wrists tracking, assembly line teaching and optimization. It is not much suitable for regular people tracking. That is more the Badge‘s role or the Helmet‘s/Jacket‘s role.
The Watch works in IA (https://marvelmind.com/download/ => https://marvelmind.com/pics/architectures_comparison.pdf). So, at minimum, you need two stationary beacons on different ultrasonic frequencies, for example, 25kHz and 31kHz) – https://marvelmind.com/product/super-beacon/ and a modem, for example: https://marvelmind.com/product/modem-hw-v5-1/ .
With this configuration, you would be able to cover up to ~25-30m of the assembly line. If you need to track more wrists, just add more Watches. If you want to cover more product line, then add more stationary beacons: https://marvelmind.com/pics/Marvelmind_Robotics_ENG_placement_manual.pdf.
BR,
Maxim
