Description

Helmet works in the Inverse Architecture (IA) and is designed for tracking people in warehouses, assembly plants, construction sites and similar environment.



All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip.

The recommended configurations for Helmet is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because Helmet may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge.

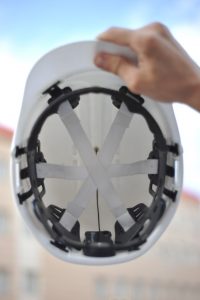

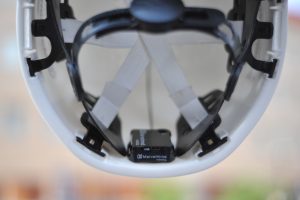

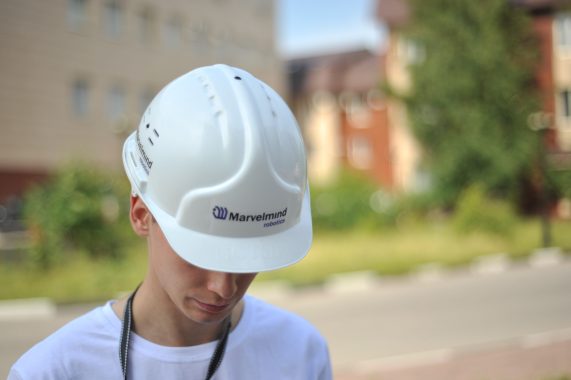

Marvelmind Helmet includes Mini-RX and 1 additional external microphone (IP67 membrane protected) on top of the helmet. Notice, that there is a hole in the Helmet. It doesn’t really impact on the Helmet in terms of protection, because the hole is just 8mm, but if you must use your own certified helmets only, then consider our Marvelmind Headlight tracking.

Demos:

–  Marvelmind Helmet for warehousing and plants

Lead time – several days.

This sales item is shipped using Shipping & Handling fee (Complexity I).

Distance to beacons

  • Reaches up to 25 meters

Location precision

  • ±2 cm

Location update rate and latency

Inverse Architecture:

  • 0.1–16Hz. Can be set manually
  • Recommended – overlapping submaps in TDMA mode

Power supply and battery lifetime

Internal:

  • LiPol battery 750mAh. 2h charging
  • Battery lifetime totally depends on usage, map configurations, update rate. With 8Hz update rate => up to 30h

External:

  • microUSB – for charging

Description

Helmet works in the Inverse Architecture (IA) and is designed for tracking people in warehouses, assembly plants, construction sites and similar environment.



All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip.

The recommended configurations for Helmet is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because Helmet may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge.

Marvelmind Helmet includes Mini-RX and 1 additional external microphone (IP67 membrane protected) on top of the helmet. Notice, that there is a hole in the Helmet. It doesn’t really impact on the Helmet in terms of protection, because the hole is just 8mm, but if you must use your own certified helmets only, then consider our Marvelmind Headlight tracking.

Demos:

–  Marvelmind Helmet for warehousing and plants

Lead time – several days.

This sales item is shipped using Shipping & Handling fee (Complexity I).

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm

Questions and Answers


Tomotsugu Sakanashi
5 months 14 days ago

We bought 2 sets of Helmets and received them. These helmets installed Version 6.279 from the beginning, but the latest version of software is Version 6.240.
We uploading V.2.40 to the helmet, then the LED of Min-RX does not blink.
I suppose version down the software is not allowed. What should we do for this helmet to use under version 6.240. Rest and Power ON-OFF are not effective.

admin
5 months 13 days ago

Yes, you have received a newer version than is available on the website.
In your case, before we upload the latest unpublished release, we recommend to use a special SW pack that we will send to you separately.
As usually, use the SW only from the same SW pack. Never mix up the SW between the packs. But your case, use it not from the released SW pack from the website, but a special pre-release SW pack we will share with you.
