Extended Temperature Range Operations
Can the system work in a freezer - or in a foundry?
The hard question for many industrial customers: can the indoor positioning system work in a −30°C freezer warehouse, or near a foundry where ambient air briefly hits +100°C? The short answer: yes, by design.
The longer answer is in this post – including the trade-offs, the role of batteries, the +85°C ceiling that most people underestimate, and why a small Proof-of-Concept pilot is the only way to be truly sure for your specific environment.
Designed For Extended Temperature Range
Marvelmind Industrial beacons are specifically designed for the −40°C to +85°C of ambient air temperature range. They are the right choice for freezer warehouses, cold storage facilities, refrigerated logistics, and sub-zero outdoor deployments.
It must be very clear, though: designed – not tested in production with this range.
Why No Battery
The Industrial line has no internal battery — and this is deliberate, not a limitation:
- Regular LiPo batteries are unsafe below 0°C – they can be damaged by charging or even discharging at sub-zero temperatures
- Removing the battery removes the cold-failure mode entirely
- Industrial beacons run on external +5V (use Converter-DC-DC-IP67 to power directly from a vehicle’s 12 / 24 / 48 V network) or Converter-AC-5V-IP67 for stationary beacons
- The result: a beacon that can sit in a −30°C freezer aisle for months without thermal issues
- Precise (±2cm) 1D tracking up to 150m using Marvelmind Horn at -20°C
Hot Side
For high-temperature environments, the realistic design ceiling is approximately +85°C ambient air — not the +50°C figure that is sometimes quoted conservatively. The +85°C number reflects the actual specifications of the most temperature-sensitive components inside the beacon (typically the processor, the IMU sensor, or the radio transceiver), which are rated to +85°C ambient minimum. The processor itself can be pushed higher in low-power duty cycles, but the system as a whole is bounded by its most sensitive component.
Transient vs Sustained
Real industrial environments rarely sit at a steady temperature. The same beacon may handle very different situations:
- Brief exposure – for example, 10–20 seconds at +100–120°C while a crane carries hot material past the beacon – is usually survivable. Housings have thermal mass and resistance; they don’t reach ambient instantly. After the hot phase, the beacon cools back down in normal air
- Sustained exposure at the same +100°C, however, will overheat the electronics. What is tolerable for seconds is not tolerable for minutes
- Average temperature over the duty cycle matters more than the peak. Many “hot” environments have time-averaged temperatures well below +85°C even when peaks are higher
Acoustic effects
Marvelmind is an acoustic system, and the speed of sound in air depends on temperature (~0.6 m/s per °C). In environments with strong temperature swings or gradients, the map will visibly “breathe” – small absolute-coordinate drift that tracks the temperature. Differential precision (±2 cm point-to-point) stays good, but absolute accuracy can suffer until conditions stabilize. This is largely manageable: the MMSW0015 Automatic Submap Self-Calibration license auto-recalibrates as conditions change and is recommended for any temperature-varying deployment.
By design vs validated in QA
This is the most important caveat in this post. Marvelmind’s high-temperature capability is provided by design – meaning the components inside the beacon are specified by their manufacturers to operate across this range. It is not the result of Marvelmind’s own QA testing at elevated temperatures. Marvelmind production-tests devices under normal ambient conditions.
PoC recommended
That means the only practical way to confirm whether the system will perform in your specific environment is to deploy a small Proof-of-Concept pilot in real conditions and run it for several days or weeks. Watch how the beacons behave with your actual temperature profile, your duty cycle, your air movement, and your radio environment. A PoC is small, low-cost, and removes the guesswork before any large-scale commitment.
MTBF and spares
One more practical point that applies to all extended-temperature deployments:
- MTBF (mean time between failures) drops with temperature — roughly halving for every +10°C above nominal (Arrhenius rule of thumb)
- At sustained high temperatures, expect electronics to age noticeably faster
- Plan for spare units as a normal operating cost — fast on-site replacement is part of operating in harsh environments
- For freezer environments, MTBF is rarely a concern; cold actually extends component life
In summary
- Yes, by design — Industrial beacons cover −40°C to +60°C, and the realistic upper margin for short or duty-cycled exposure extends toward +85°C ambient
- Yes, please test — a small PoC pilot in your actual conditions is the only way to be truly sure
- Yes, we can adapt — Marvelmind develops both the hardware and the software in-house, so we can adjust firmware, settings, or even component selection for specific high-volume requirements

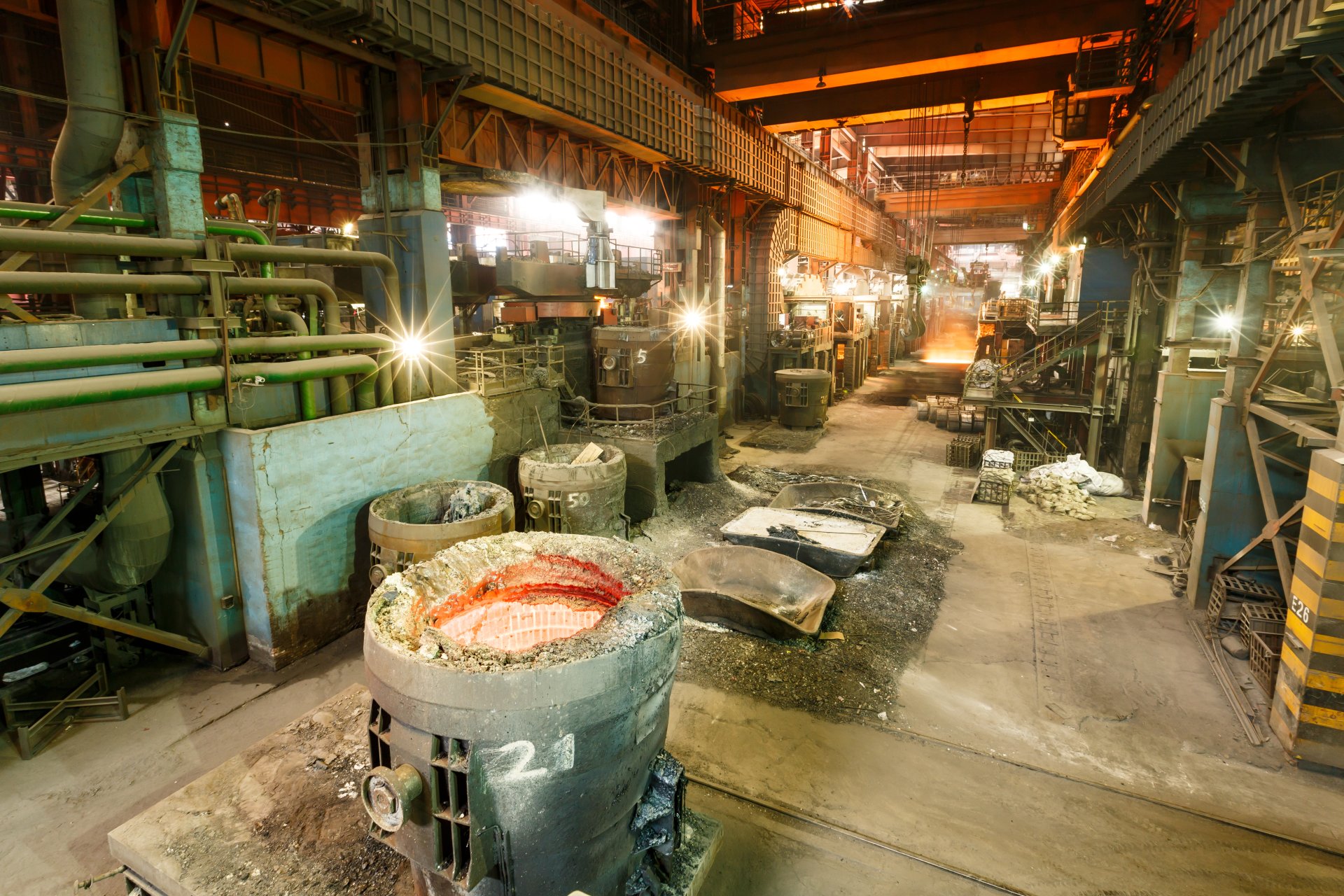

If you are planning a deployment in a freezer, a foundry, a steel plant, or any other extended-temperature environment, write to info@marvelmind.com in any language. Share your temperature profile, duty cycle, and use case – we will help you scope a sensible PoC and advise on any adjustments needed for your specific environment.
