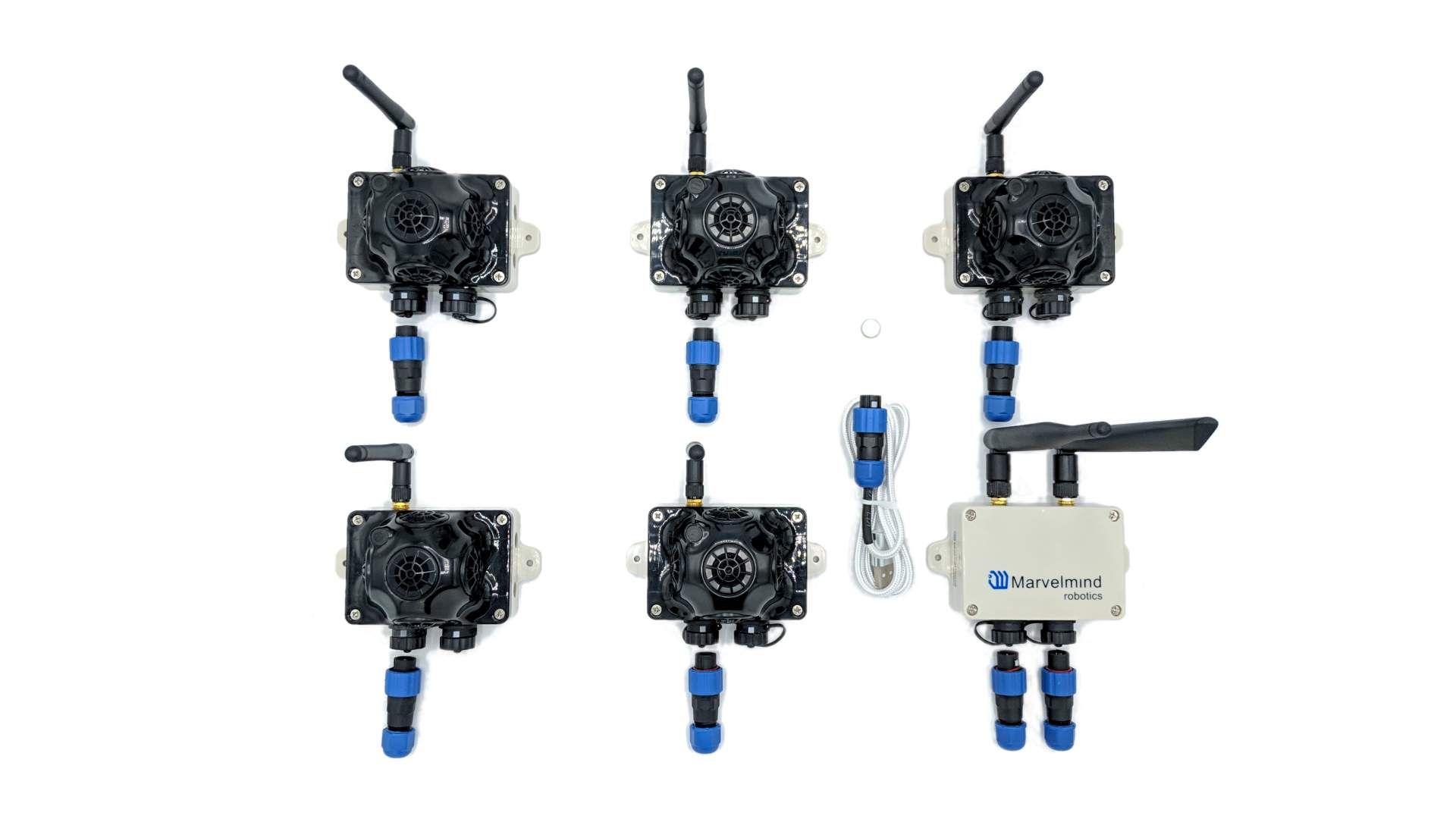

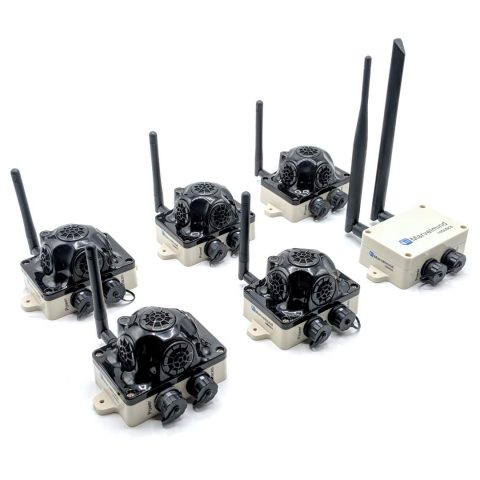

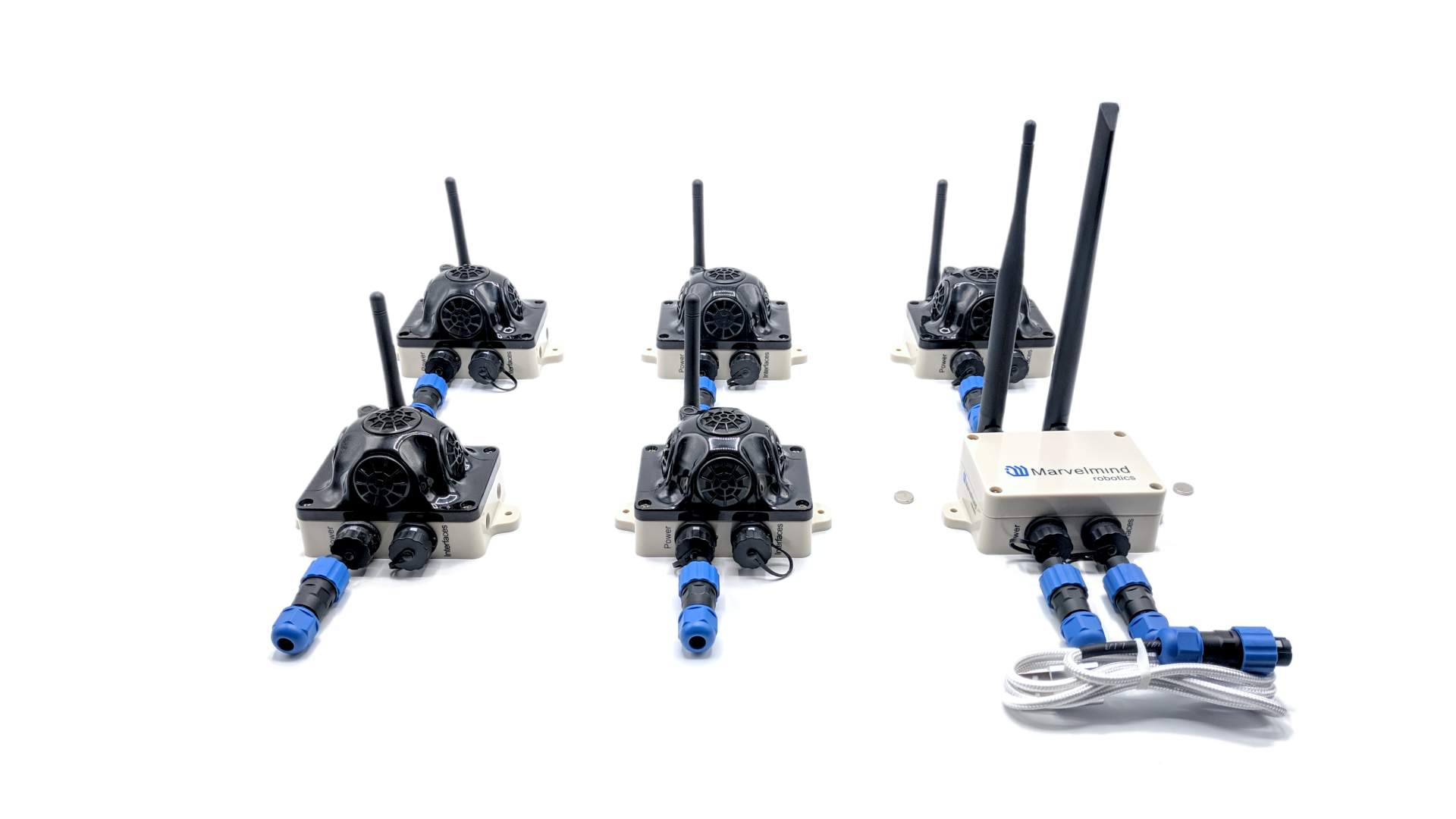

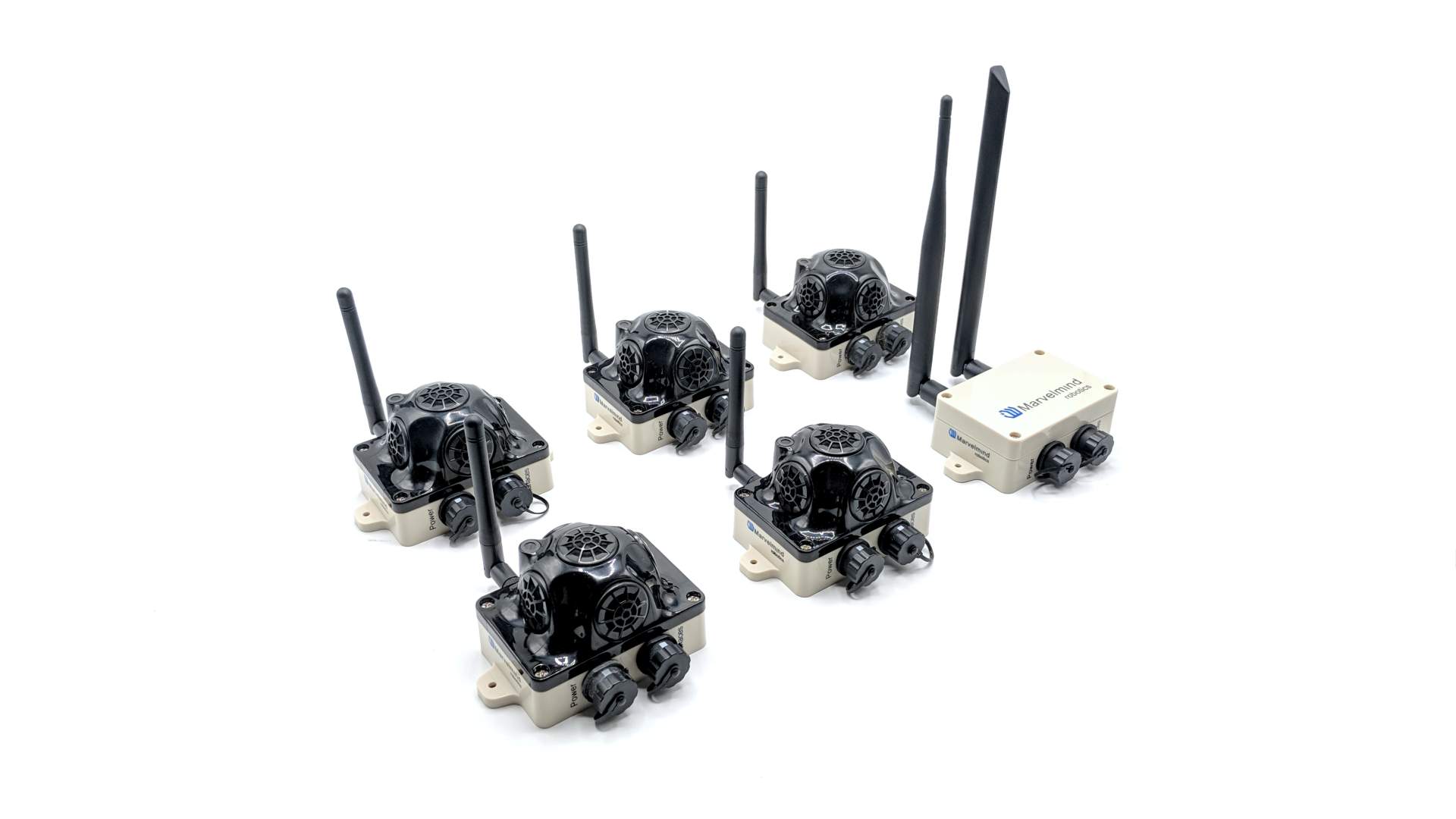

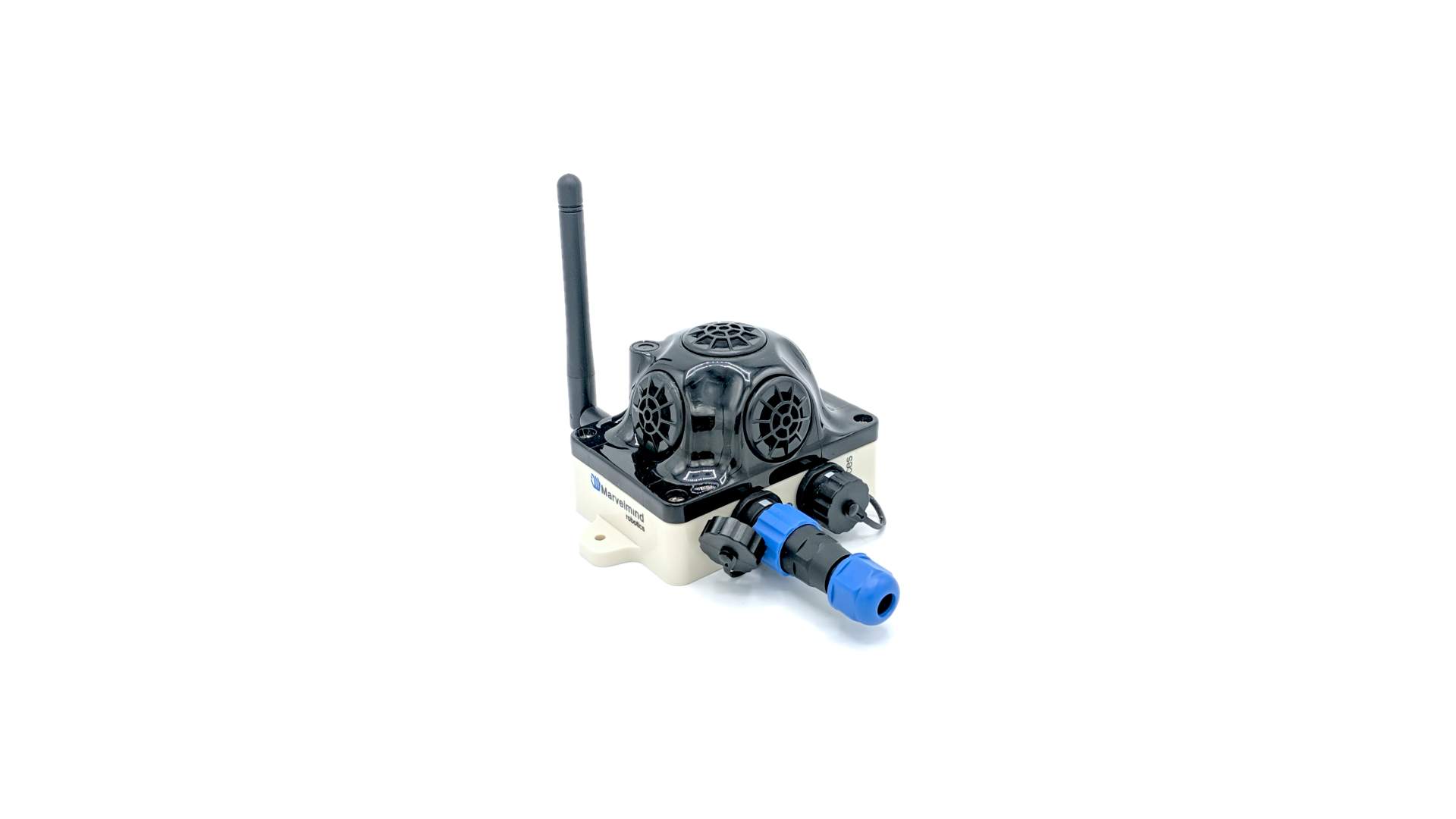

Starter Set Industrial Super-MP-3D is a complete, precise indoor positioning system for industrial applications in GNSS-denied areas such as plants, factories, warehouses, mines, and tunnels.
Starter Set Industrial Super-MP-3D is an industrially-packaged sibling of our most popular product, Starter Set Super-MP-3D, with additional capabilities:
- Industrial Super-Beacons and Super-Modem are more ingress-protected than Super-Beacons and Modem v5.1 of Starter Set Super-MP
- Rigid housing with mounting holes
- Each element of the set supports an industrial RS-485 interface

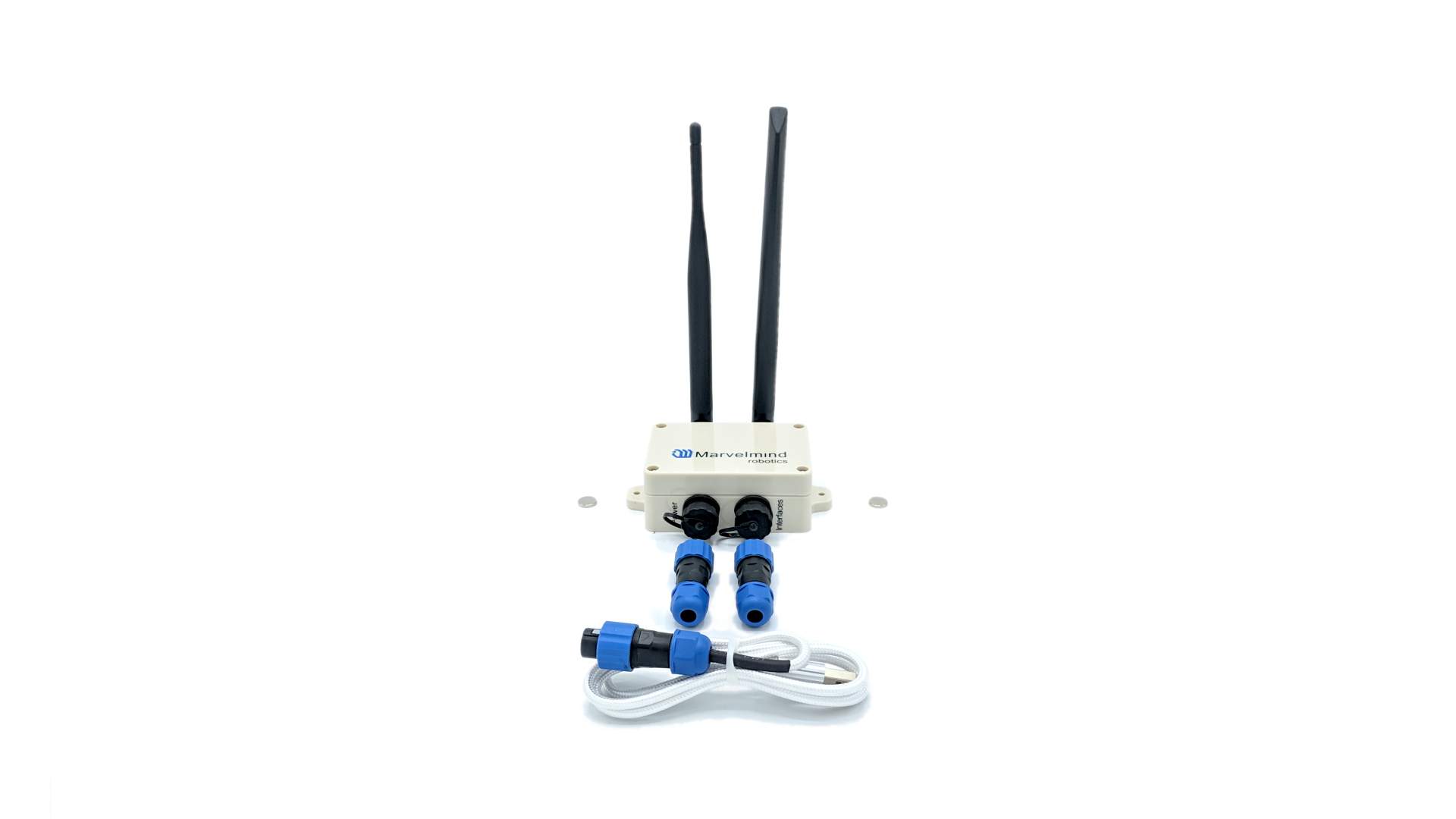

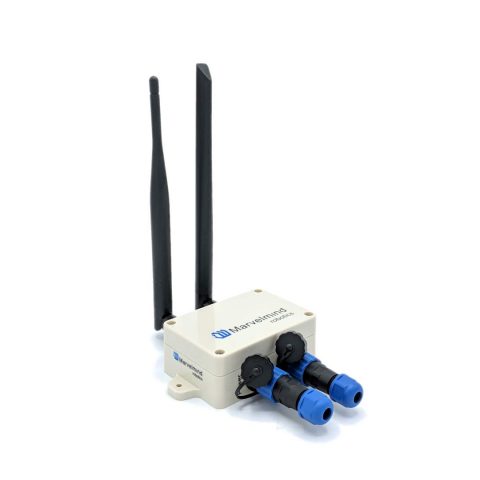

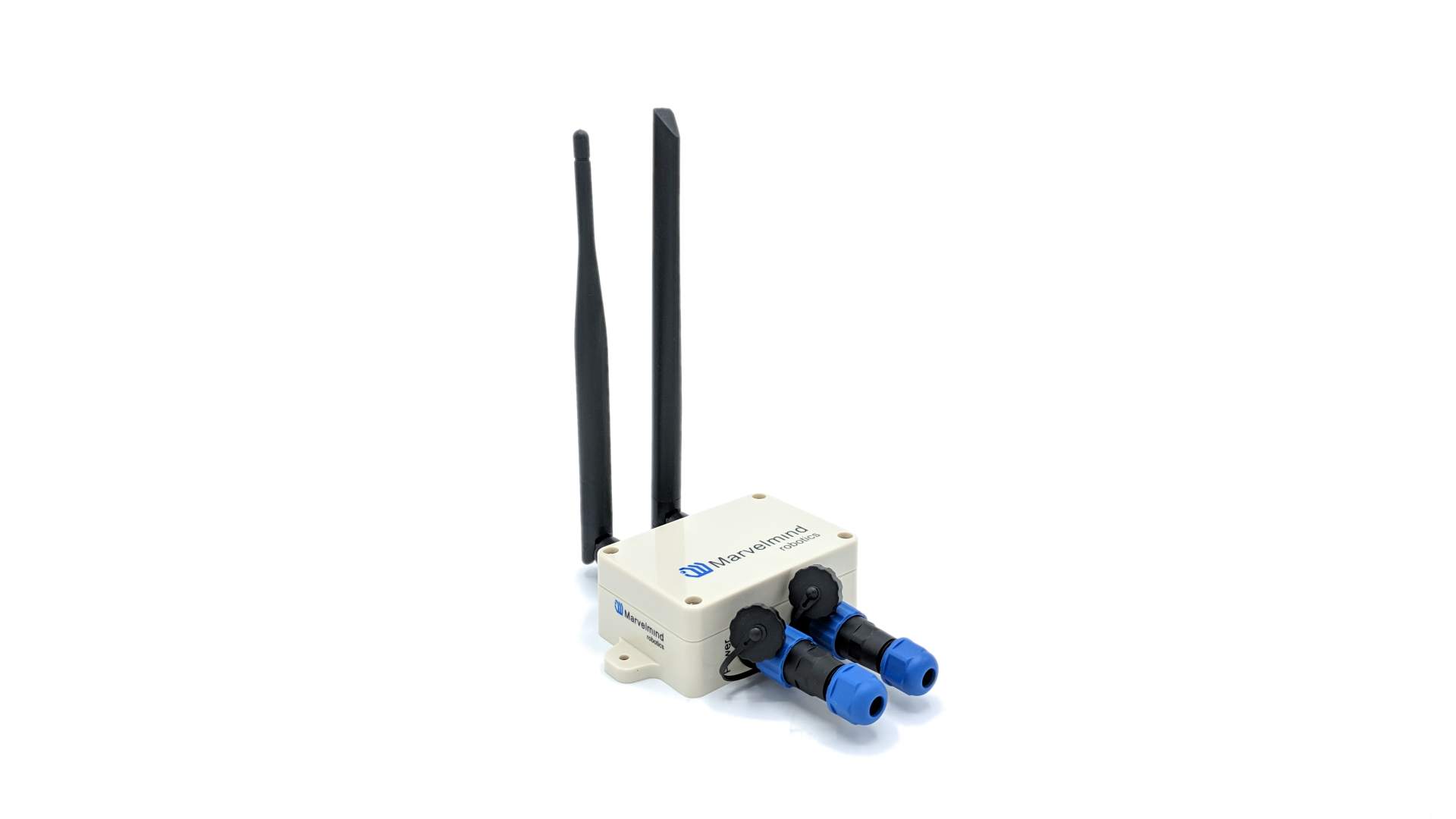

- Super-Modem additionally supports WiFi and is capable of streaming UDP over WiFi
Industrial Super-Beacons are fully compatible with Super-Beacons at the system level and with Modem v5.1. That means that the Modem v5.1 can control Industrial Super-Beacons, as well as Super-Modem can control any of the beacons. Thus, Industrial Super-Beacons can coexist with Super-Beacons in the same system, and users can build a part of the map using Super-Beacons, for example, in office-like environments or regular warehouses, and in harsher conditions, they can choose Industrial Super-Beacons.
All essential SW, as well as the Marvelmind Dashboard API, are already included in the price of the set. Just download the Marvelmind SW pack: https://marvelmind.com/download/ => https://marvelmind.com/pics/marvelmind_SW.zip.
Specs and features:
- Designed for outdoor and industrial applications
- Beacons support dual-use – the beacons can receive and transmit ultrasound
- The beacons can transmit only their native ultrasonic frequency (19kHz, 22kHz, 25kHz, 28kHz, 31kHz, 34kHz, 37kHz, or 45kHz), and they can receive any ultrasonic frequency (19kHz-45kHz) or all at the same time
- Supports: IA, NIA, and MF NIA architectures, because it has ultrasonic transducers on different ultrasonic frequencies
- Very solid IP protection of up to IP56 level
- The difference between Industrial Super-Beacon-Metal and Industrial Super-Beacon-Plastic is that the Industrial Super-Beacon-Plastic supports all available TX frequencies. In contrast, the Industrial Super-Beacon-Metal supports only 25kHz. Thus, the Industrial Super-Beacon-Plastic supports both IA and NIA, while Industrial Super-Beacon-Metal is designed for NIA
- External bendable antenna with SMA connector for extended radio range
- Currently, the set supports the license-free 915 MHz (902-930 MHz) ISM band (e.g., US, Japan, Korea) and the license-free 867/868 MHz (860-870 MHz) SRD band (EU, etc.). Future 433MHz HW variants are available upon request
- Similar industrial connectors on the beacons and the modem. Two IP67 external connectors :
- Power:
- +5V
- Reset pin
- DFU pin
- GND
- Interfaces :
- RS485
- UART 3.3V
- USB (TX+RX)
- GND
- Power:
- Corresponding IP67 connectors (male part) included

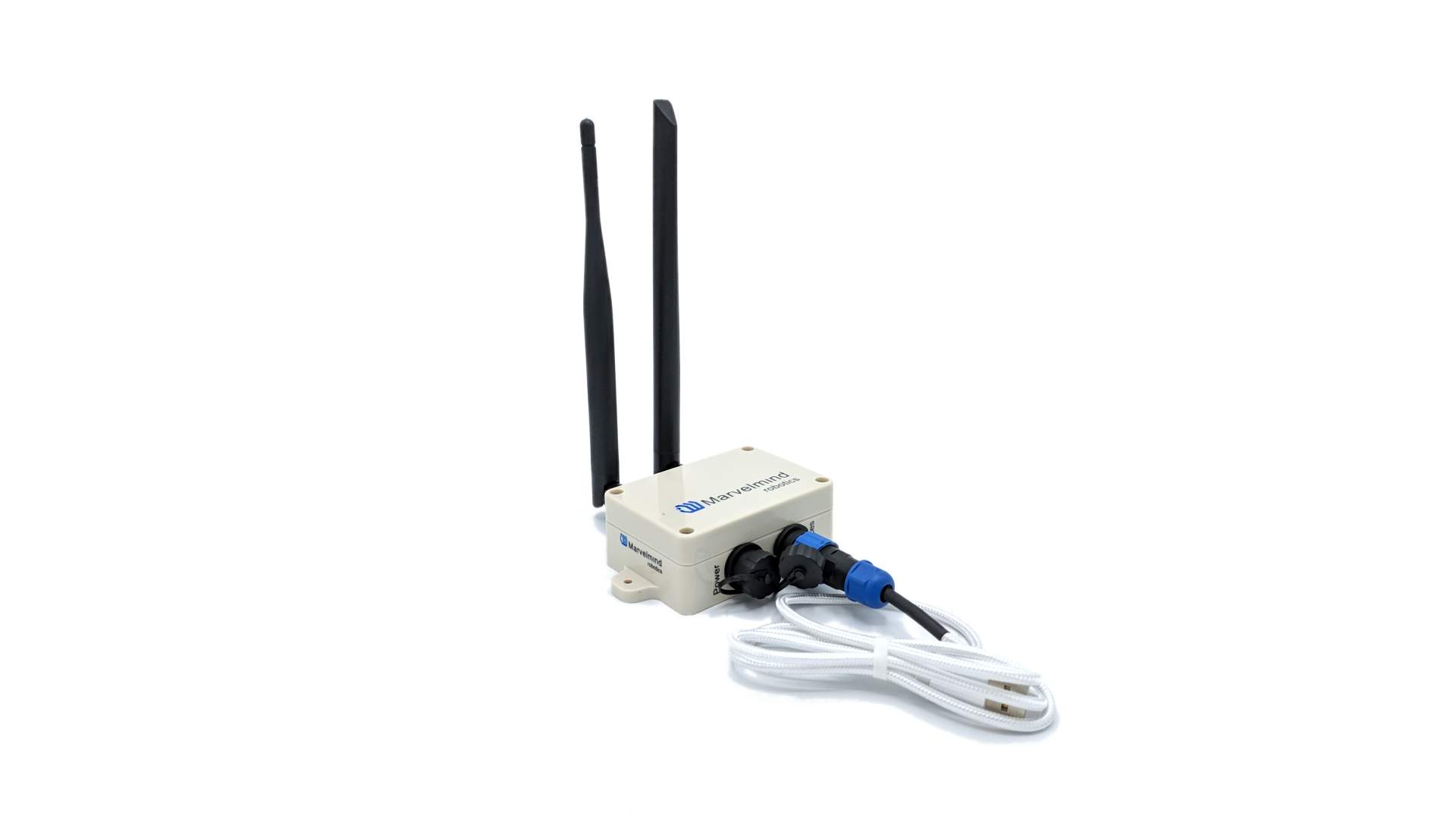

- USB cable for the Super-Modem is included as well
- No battery inside by default – external power bank or external power supply (+5V & 1A peak)
- Extended working temperature range: -40 °C… +50 °C (provided by design – not tested, not certified). No battery inside – specifically for the extended temperature range
- Embedded reset switch and DFU switch – magnetic control or external pins on IP67
- Can work with other types of Industrial Beacons, Super-Beacons, and Mini-RX beacons in NIA and IA. In all cases, the radio bands must match, i.e., the 915/867 MHz band
- Recommended ultrasonic range – up to 30m – depending on the ultrasound frequency. See more: How to choose ultrasound frequency for beacons
- Radio range to modem – up to a few hundred meters in open space with full-size antennas. See more: Radio connectivity – essential hints
- Optional external IP67 converter ~110/220V to +5V or optional IP67 battery
