Description

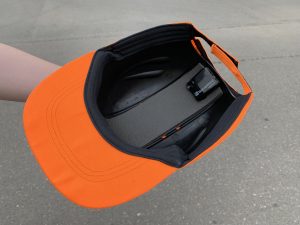

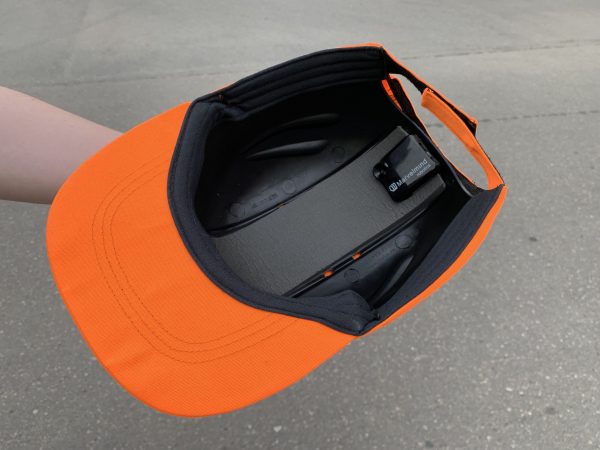

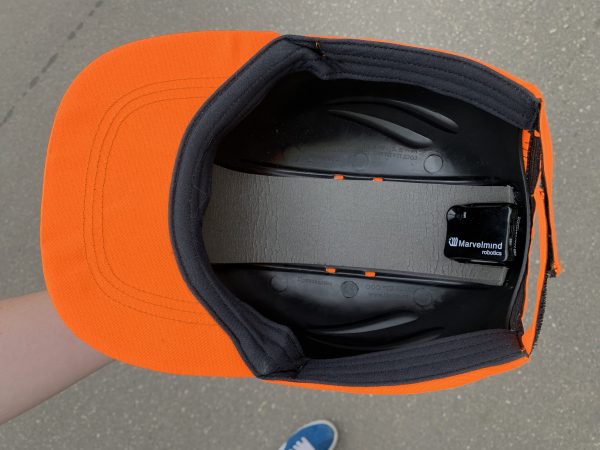

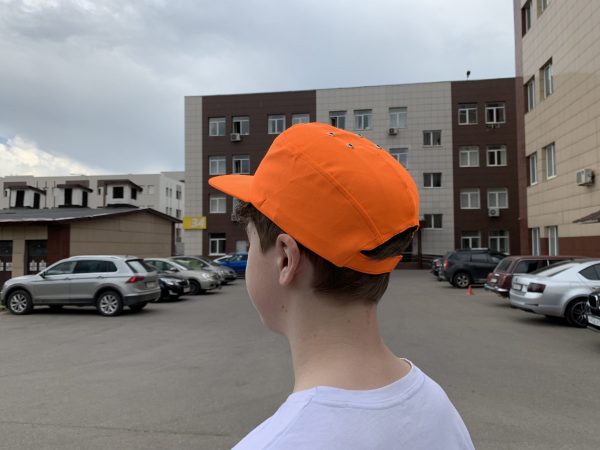

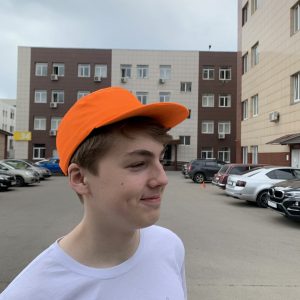

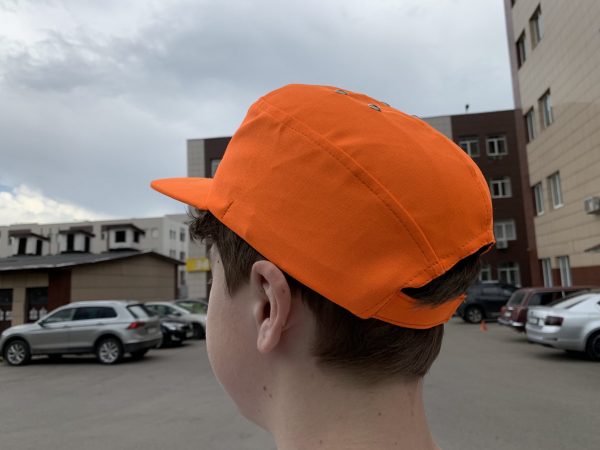

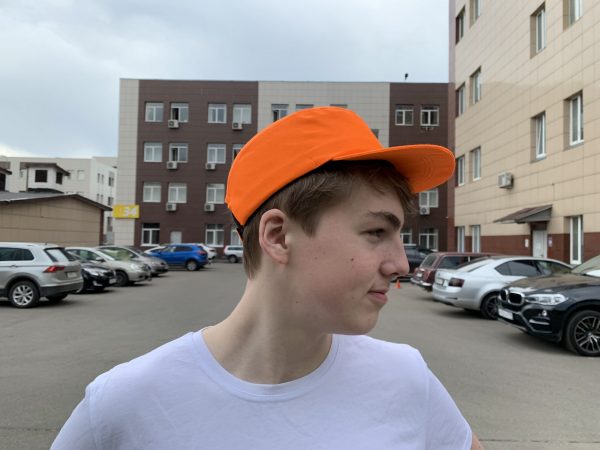

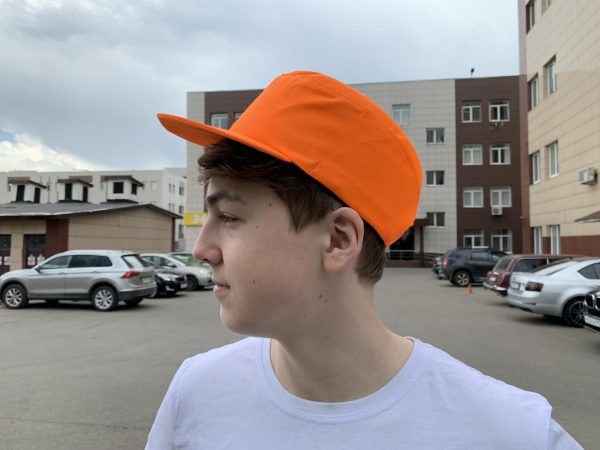

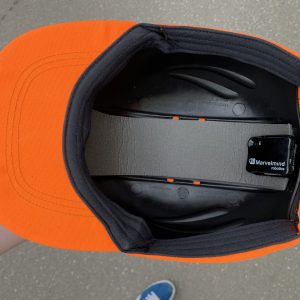

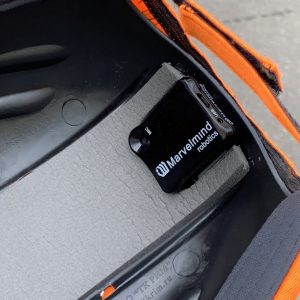

Marvelmind Cap is designed for precise people tracking indoor and outdoor in warehouses, assembly plants, construction sites and similar environment. It is very similar in performance to Marvelmind Helmet. Thus, videos and demos below shown for the Helmet are completely applicable for the Cap as well.

The Cap works in the Inverse Architecture (IA).

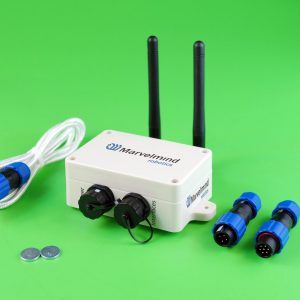

Typical starter set to work with the Cap (also, with Helmet, Jacket and Badge):

All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack:

The recommended configurations for the Cap is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because the Cap may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge.

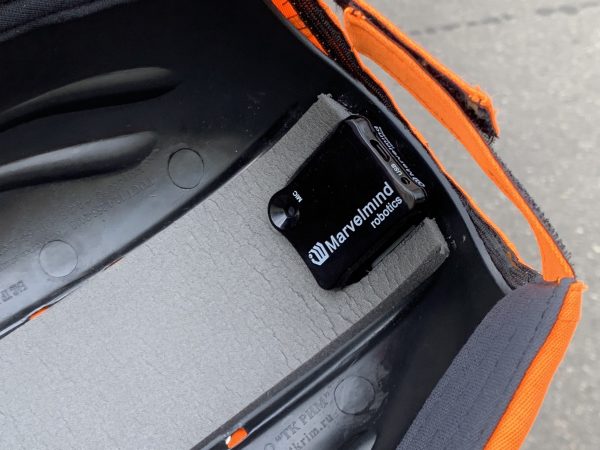

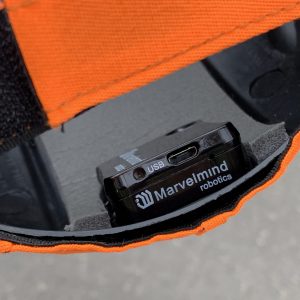

Marvelmind Helmet includes Mini-RX and 2 additional external microphones (IP67 membrane protected) on sides of the cap.

Demos:

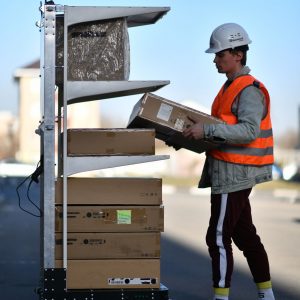

–  Marvelmind Helmet for warehousing and plants

Lead time – several days.

This sales item is shipped using Shipping & Handling fee (Complexity I).

Distance to beacons

  • Reaches up to 30 meters

Location precision

  • ±2 cm

Location update rate and latency

Inverse Architecture:

  • 0.1–16Hz. Can be set manually
  • Recommended – overlapping submaps in TDMA mode – for even better resistance against obstructions

Power supply and battery lifetime

Internal:

  • LiPol battery 750mAh. 2-4h charging
  • Battery lifetime totally depends on usage, map configurations, update rate. With 8Hz update rate => up to 30h

External:

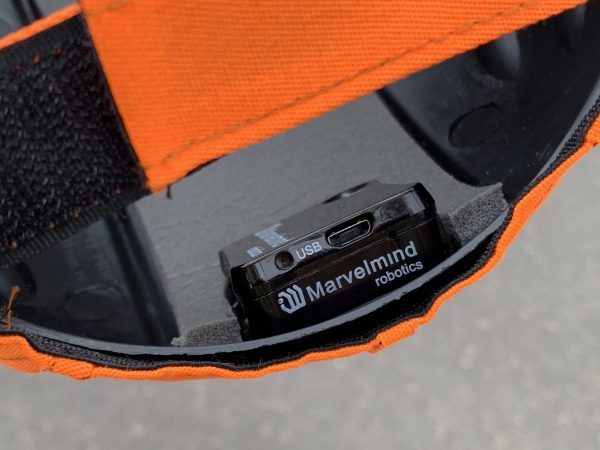

  • microUSB – for charging

Description

Marvelmind Cap is designed for precise people tracking indoor and outdoor in warehouses, assembly plants, construction sites and similar environment. It is very similar in performance to Marvelmind Helmet. Thus, videos and demos below shown for the Helmet are completely applicable for the Cap as well.

The Cap works in the Inverse Architecture (IA).

Typical starter set to work with the Cap (also, with Helmet, Jacket and Badge):

All essential SW as well as Marvelmind Dashboard API are already included in the price. Just download the Marvelmind SW pack:

The recommended configurations for the Cap is IA in 915/868MHz band with 4-8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality. Non-TDMA works well as well, because the Cap may have lower probability for obstruction than Marvelmind Jacket or Marvelmind Badge.

Marvelmind Helmet includes Mini-RX and 2 additional external microphones (IP67 membrane protected) on sides of the cap.

Demos:

–  Marvelmind Helmet for warehousing and plants

Lead time – several days.

This sales item is shipped using Shipping & Handling fee (Complexity I).

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm
