Description

This is a ready-to-use-out-of-the-box Starter Set supporting Inverse Architecture (IA) with 2D tracking (XY) with Marvelmind Badge included.

Use cases:

  1. Tracking visitors in conferences, museums, hospitals, offices
  2. Workers in industrial applications, when Marvelmind Helmet is not suitable
  3. Activation of events in quests, shows based on players’ precise location
  4. Geo-fencing zones with alarms and logging of events and automatic activation of external devices (light, audio/speaker, displays) depending on the Badge (user) position

Content:

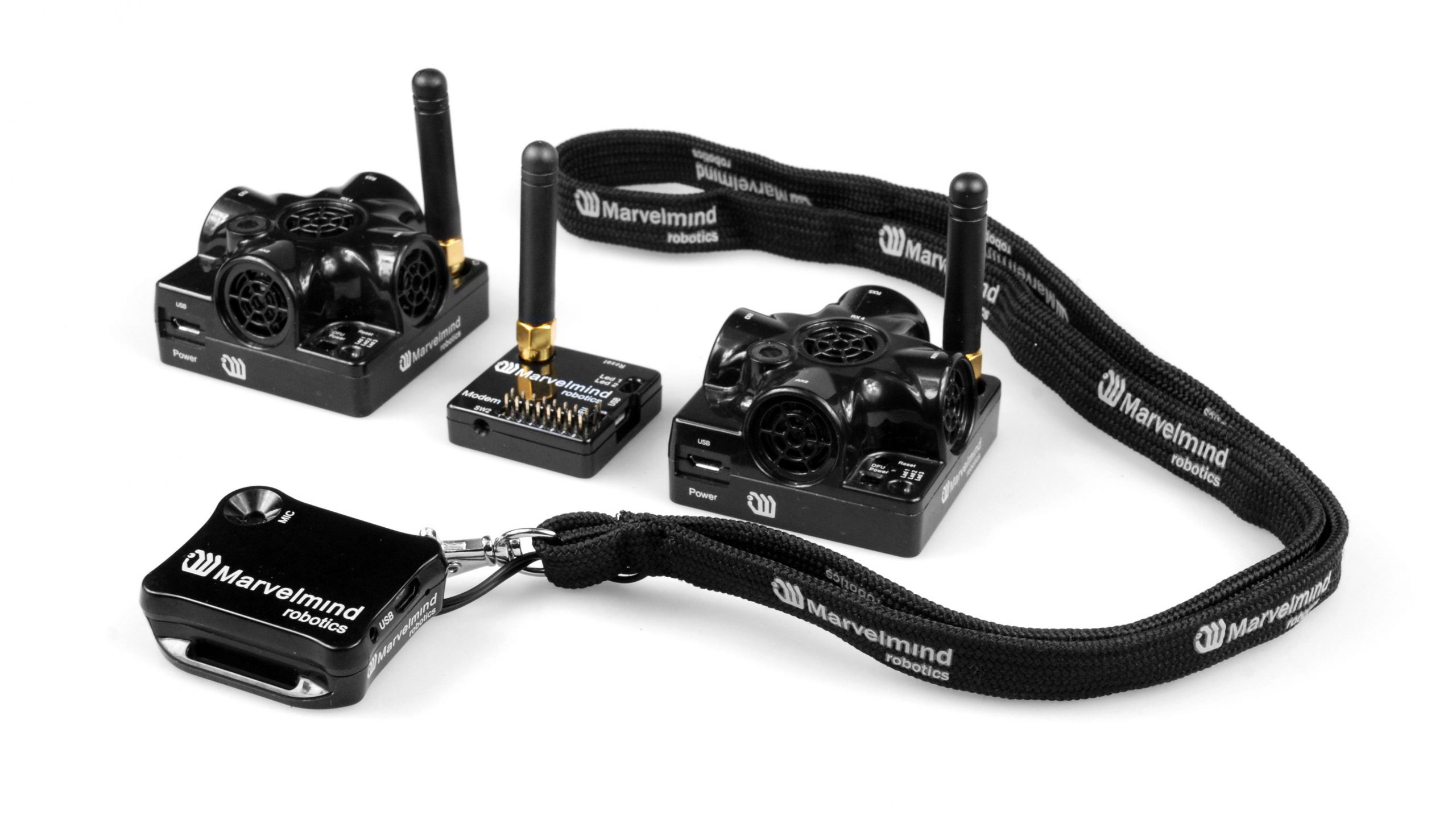

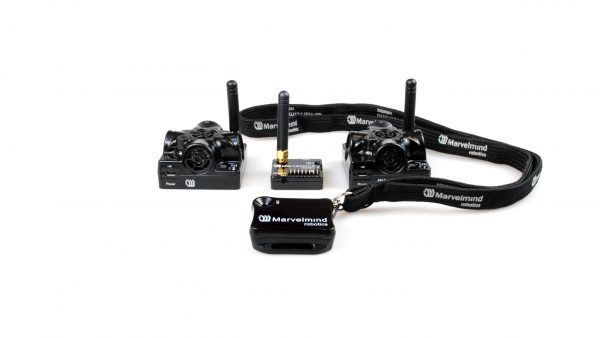

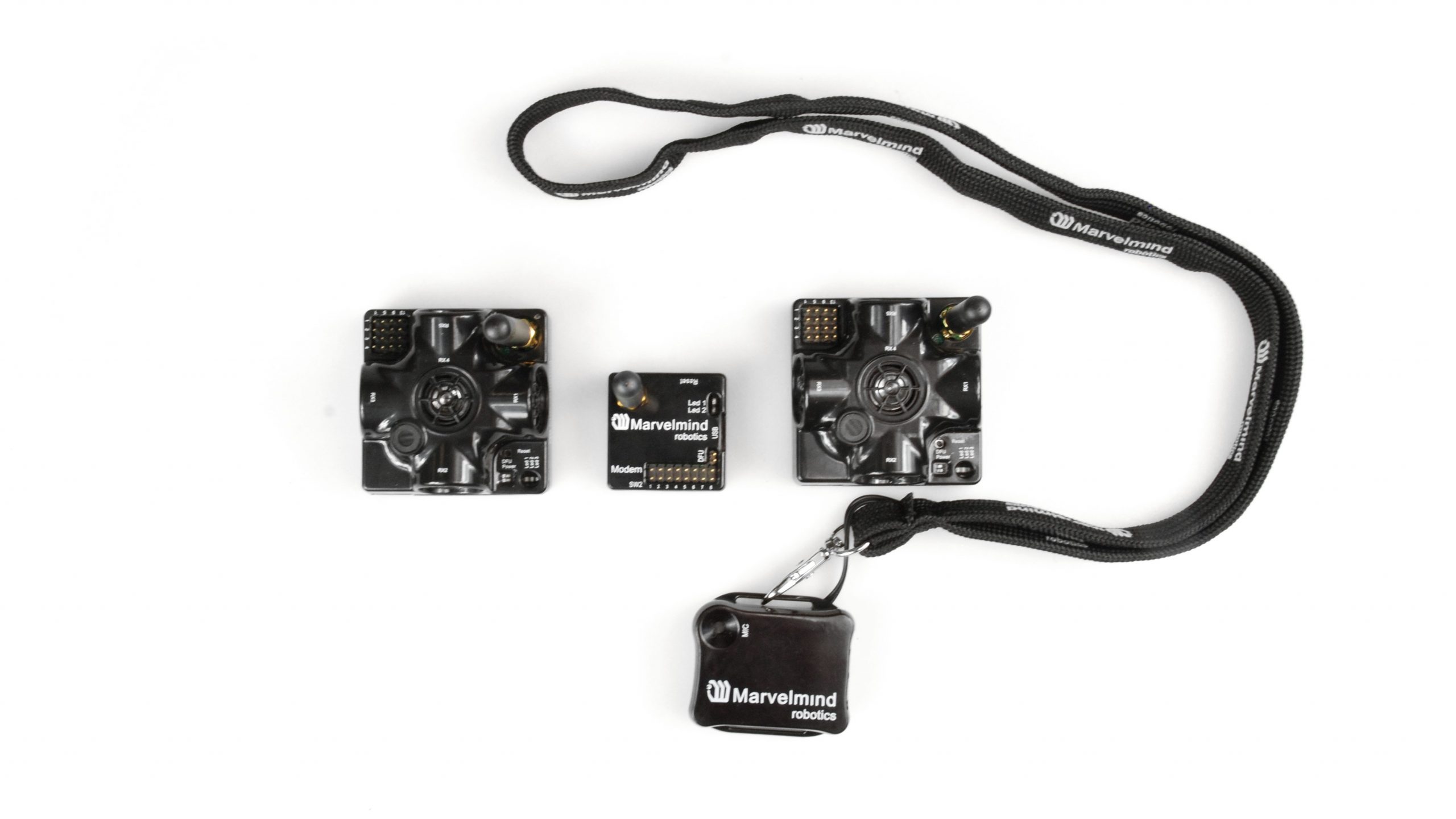

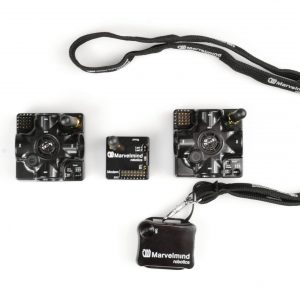

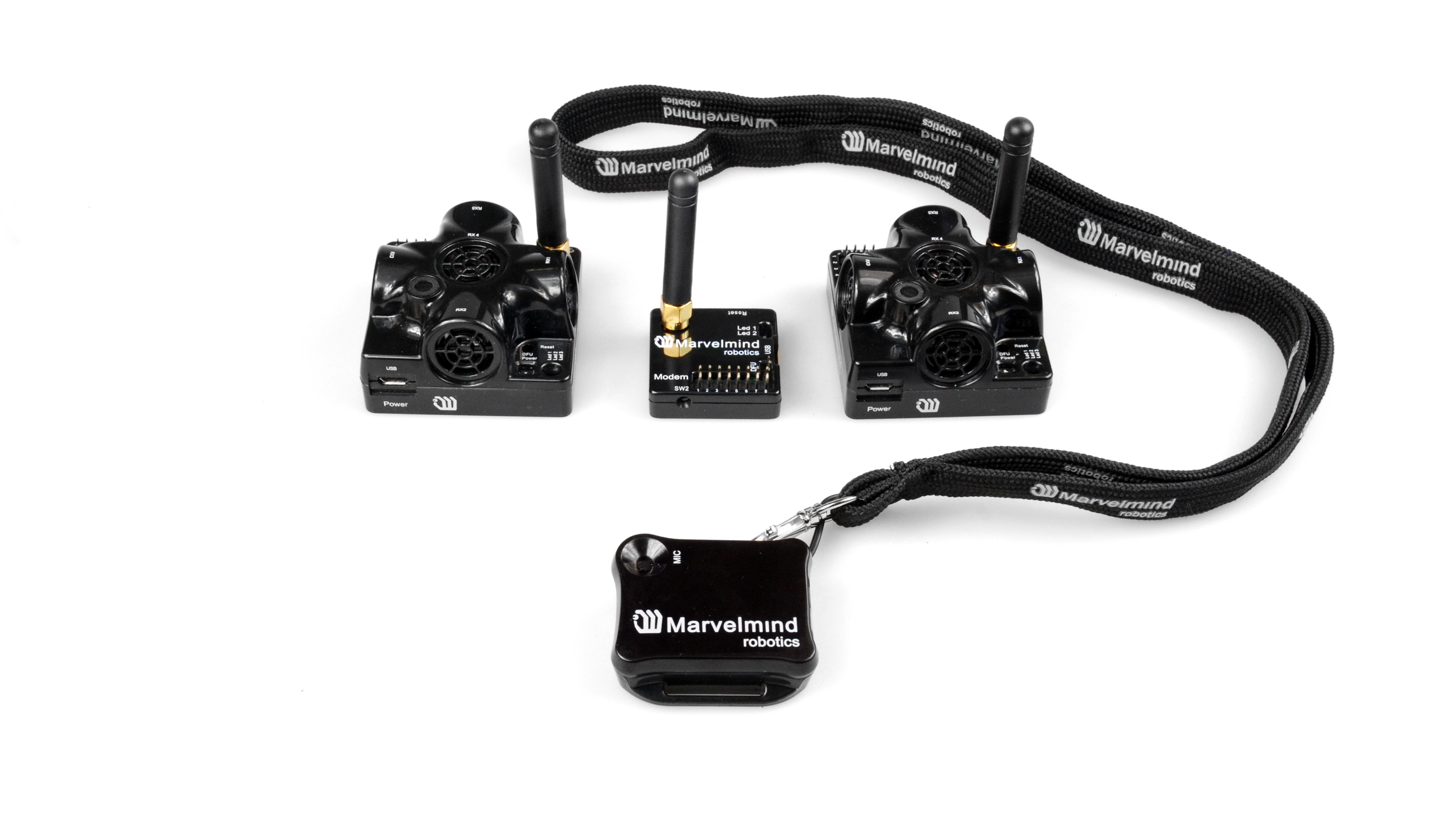

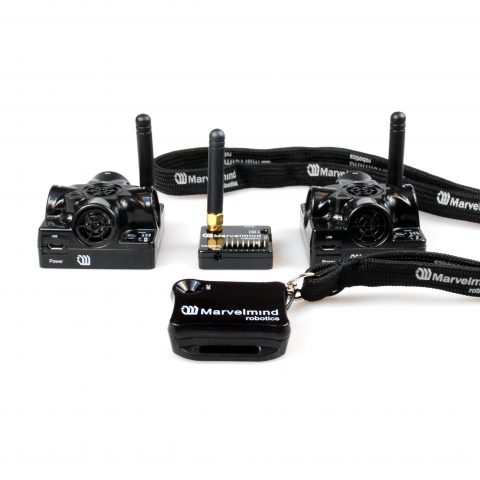

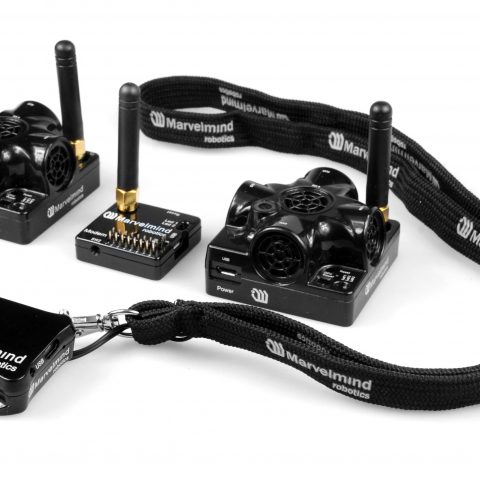

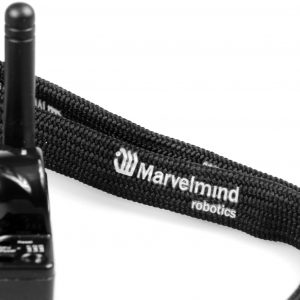

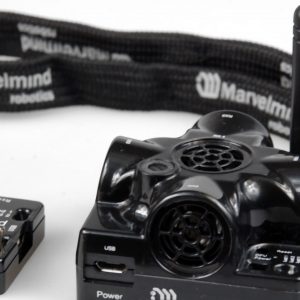

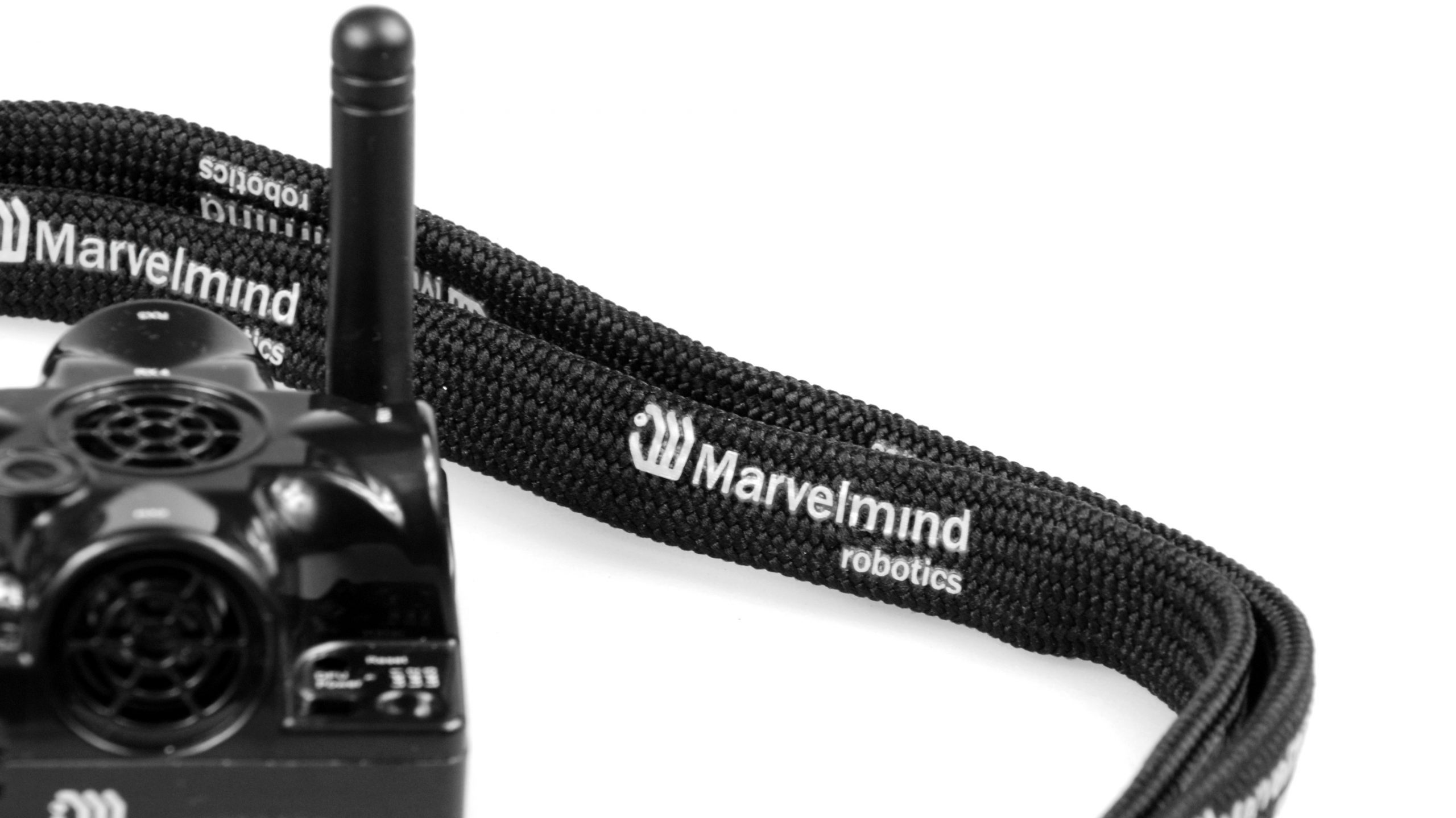

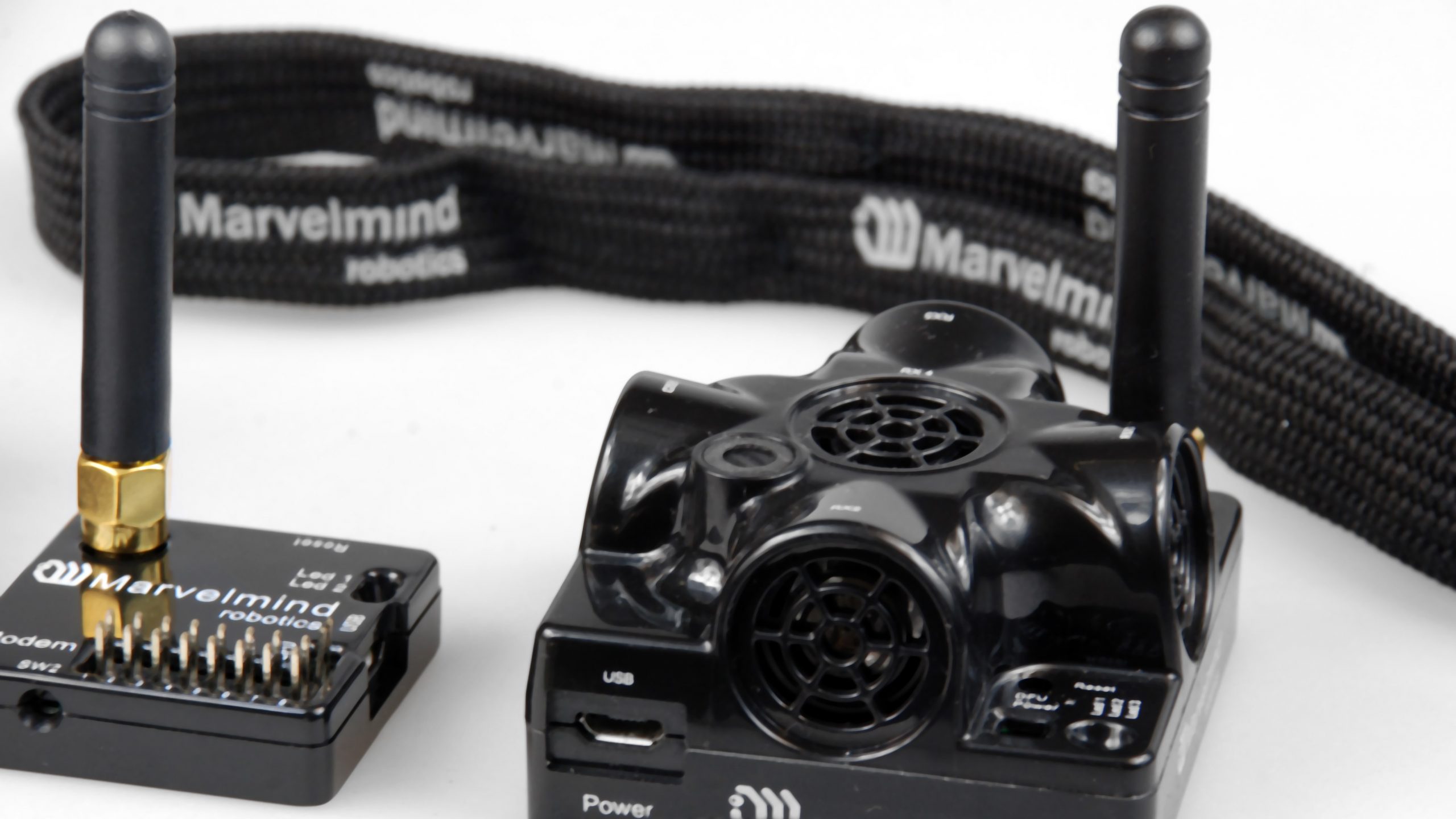

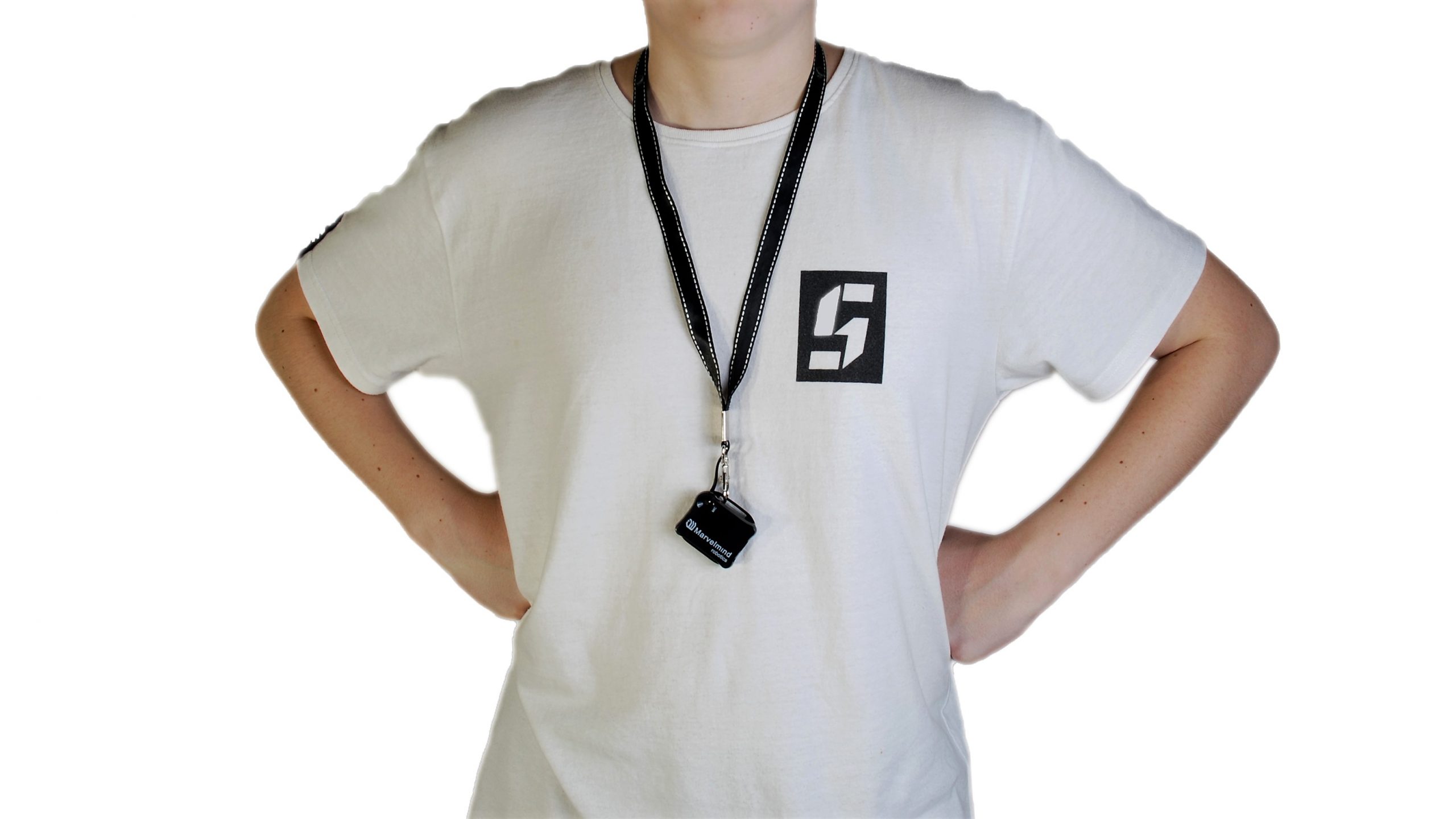

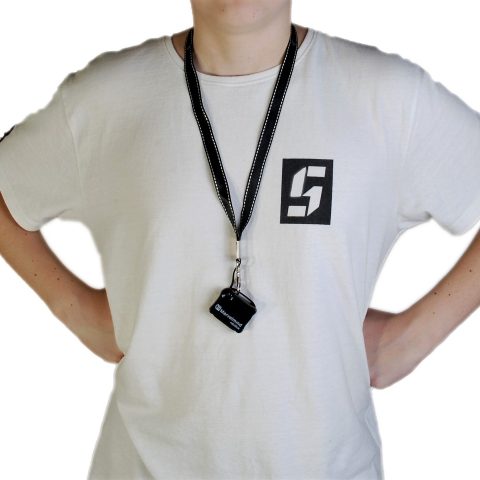

  • 1 x Marvelmind Badge – 915/868 MHz as mobile beacon
  • 2 x Beacon HW v4.9 – 915/868 MHz with different ultrasonic frequencies (f1 and f2 – usually, 25kHz and 31kHz. Mention in your email/order your preferred frequencies) as stationary beacons
  • 1 x Modem HW v4.9 – 915/868 MHz as central controller of the system

Specifications:

  • The set covers open area of up to 1,000 m2 in ideal conditions. Recommended – up to 200-400m2. Maximum distance from the nearest 2 stationary beacons to the Badge – 30m or less
  • In the Inverse Architecture (IA), stationary beacons emit ultrasound (on different ultrasonic frequencies) and mobile beacons (Badges) receive it. Thus, it is possible to have multiple mobile beacons without (or minor) update rate reduction per mobile beacon, unlike in the Non-Inverse Architecture
  • The HW supports both 915MHz (the US – ISM license-free band) and 868MHz (the EU – SRD license-free band). The right radio band can be selected by radio settings inside the Dashboard
  • Badge is better than Mini-RX for complex environment, because it contains 3 microphones: one – in the Mini-RX itself and 2 additional microphone in the strap. It greatly improves quality of tracking, but for the expense of exact positioning – instead of a single dot-like point (ultrasonic microphone in the Mini-RX), Badge is a distributed microphone system. Thus, the “central point” is spread. In majority of real use-cases of people tracking, it is absolutely OK and sufficient

Further expansion:

  • For more mobile objects – add more Badges Mini-RX
  • For more coverage – add more stationary beacons. Supporting up to 250 beacons (stationary beacons + badges) today. Further SW releases – up to several thousands beacons
  • Instead of or along with Beacons HW v4.9, it is possible to use Super-Beacons or even Industrial Super-Beacons or Industrial-TX beacons as stationary beacons
  • See more in Placement Manual

The Marvelmind Indoor “GPS” navigation system is based on stationary ultrasonic beacons that are united by radio interface in a license-free band (915MHz). The location of the mobile beacon is calculated based on the propagation delay of an ultrasonic signal (Time-Of-Flight or TOF) to a set of stationary ultrasonic beacons using trilateration.

Key requirements for the system to function properly:

  • For 2D (X, Y) tracking – An unobstructed line of hearing/sight from a mobile beacon (Badge) to two or more stationary beacons simultaneously
  • Distance to the nearest 2 or more beacons – not more than 30 meters (recommended). In ideal conditions – up to 50 meters

Description

This is a ready-to-use-out-of-the-box Starter Set supporting Inverse Architecture (IA) with 2D tracking (XY) with Marvelmind Badge included.

Use cases:

  1. Tracking visitors in conferences, museums, hospitals, offices
  2. Workers in industrial applications, when Marvelmind Helmet is not suitable
  3. Activation of events in quests, shows based on players’ precise location
  4. Geo-fencing zones with alarms and logging of events and automatic activation of external devices (light, audio/speaker, displays) depending on the Badge (user) position

Content:

  • 1 x Marvelmind Badge – 915/868 MHz as mobile beacon
  • 2 x Beacon HW v4.9 – 915/868 MHz with different ultrasonic frequencies (f1 and f2 – usually, 25kHz and 31kHz. Mention in your email/order your preferred frequencies) as stationary beacons
  • 1 x Modem HW v4.9 – 915/868 MHz as central controller of the system

Specifications:

  • The set covers open area of up to 1,000 m2 in ideal conditions. Recommended – up to 200-400m2. Maximum distance from the nearest 2 stationary beacons to the Badge – 30m or less
  • In the Inverse Architecture (IA), stationary beacons emit ultrasound (on different ultrasonic frequencies) and mobile beacons (Badges) receive it. Thus, it is possible to have multiple mobile beacons without (or minor) update rate reduction per mobile beacon, unlike in the Non-Inverse Architecture
  • The HW supports both 915MHz (the US – ISM license-free band) and 868MHz (the EU – SRD license-free band). The right radio band can be selected by radio settings inside the Dashboard
  • Badge is better than Mini-RX for complex environment, because it contains 3 microphones: one – in the Mini-RX itself and 2 additional microphone in the strap. It greatly improves quality of tracking, but for the expense of exact positioning – instead of a single dot-like point (ultrasonic microphone in the Mini-RX), Badge is a distributed microphone system. Thus, the “central point” is spread. In majority of real use-cases of people tracking, it is absolutely OK and sufficient

Further expansion:

  • For more mobile objects – add more Badges Mini-RX
  • For more coverage – add more stationary beacons. Supporting up to 250 beacons (stationary beacons + badges) today. Further SW releases – up to several thousands beacons
  • Instead of or along with Beacons HW v4.9, it is possible to use Super-Beacons or even Industrial Super-Beacons or Industrial-TX beacons as stationary beacons
  • See more in Placement Manual

The Marvelmind Indoor “GPS” navigation system is based on stationary ultrasonic beacons that are united by radio interface in a license-free band (915MHz). The location of the mobile beacon is calculated based on the propagation delay of an ultrasonic signal (Time-Of-Flight or TOF) to a set of stationary ultrasonic beacons using trilateration.

Key requirements for the system to function properly:

  • For 2D (X, Y) tracking – An unobstructed line of hearing/sight from a mobile beacon (Badge) to two or more stationary beacons simultaneously
  • Distance to the nearest 2 or more beacons – not more than 30 meters (recommended). In ideal conditions – up to 50 meters

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm
Frequency

915/868MHz (US/EU)
