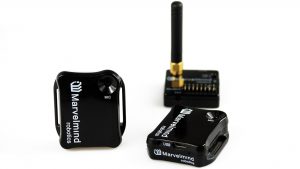

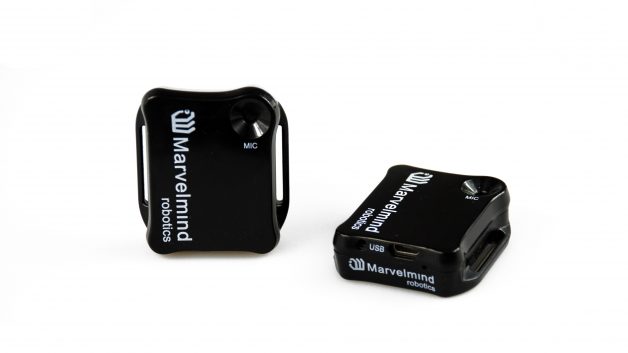

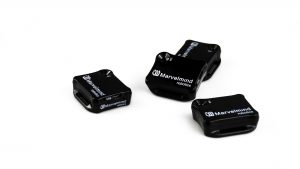

Beacon Mini-RX-IP67



Outdoor version of the Mini-RX beacon. Electronics is fully compound-sealed. A special IP67 membrane protects the ultrasonic sensor. The reset button is sealed and not available. The USB connector is not protected. The beacon is produced on request. Lead time – 2-3 weeks. The Mini-RX-IP67 beacon can be used in both the Non-Inverse Architecture (NIA) and the Inverse Architecture (IA):

Supports license-free 915MHz ISM band (US) and license-free SRD band 868MHz (EU). All Mini-RX beacons have 6D IMU (gyro+accelerometer) onboard. The Mini-RX beacon differs from regular Beacon HW v4.9 in several ways:

  • The Mini-RX is an RX-only beacon, i.e. it can receive, but it cannot transmit an ultrasonic signal
  • The fact that it is RX-only makes it far more sensitive, i.e. you will get a longer range between Beacon HW v4.9 and the Mini-RX than between Beacon HW v4.9 and Beacon HW v4.9
  • The Mini-RX beacon can receive any ultrasonic frequency from the bands: 19kHz, 25kHz, 31kHz, 37kHz, 45kHz. The filter can be simply selected in the Dashboard. At the same time, the ultrasonic frequency of Beacon HW v4.9 is HW-defined by ultrasonic sensors and can’t be changed
  • The Mini-RX beacon can receive several ultrasonic frequencies at once. That is used in Inverse Architecture. See the comparison
  • The Mini-RX Beacon is significantly smaller than Beacon HW v4.9 in volume and weight. See the Beacons Comparison table

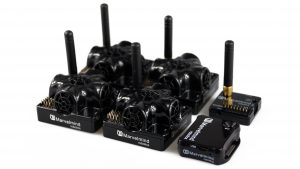

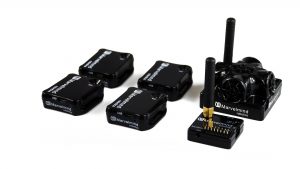

  • The Mini-RX Beacon can work with regular Beacons HW v4.9 in any combination as a part of a Starter Set or as a part of navigation systems. It is a superior RX-only replacement to HW v4.9. At the same time, since it is an RX-only beacon, the Beacons HW v4.9 are here to stay as universal dual-use beacons

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm

915 MHz (US), 915MHz (US)

Mini-RXBeacon Mini-RX-IP67
