Description

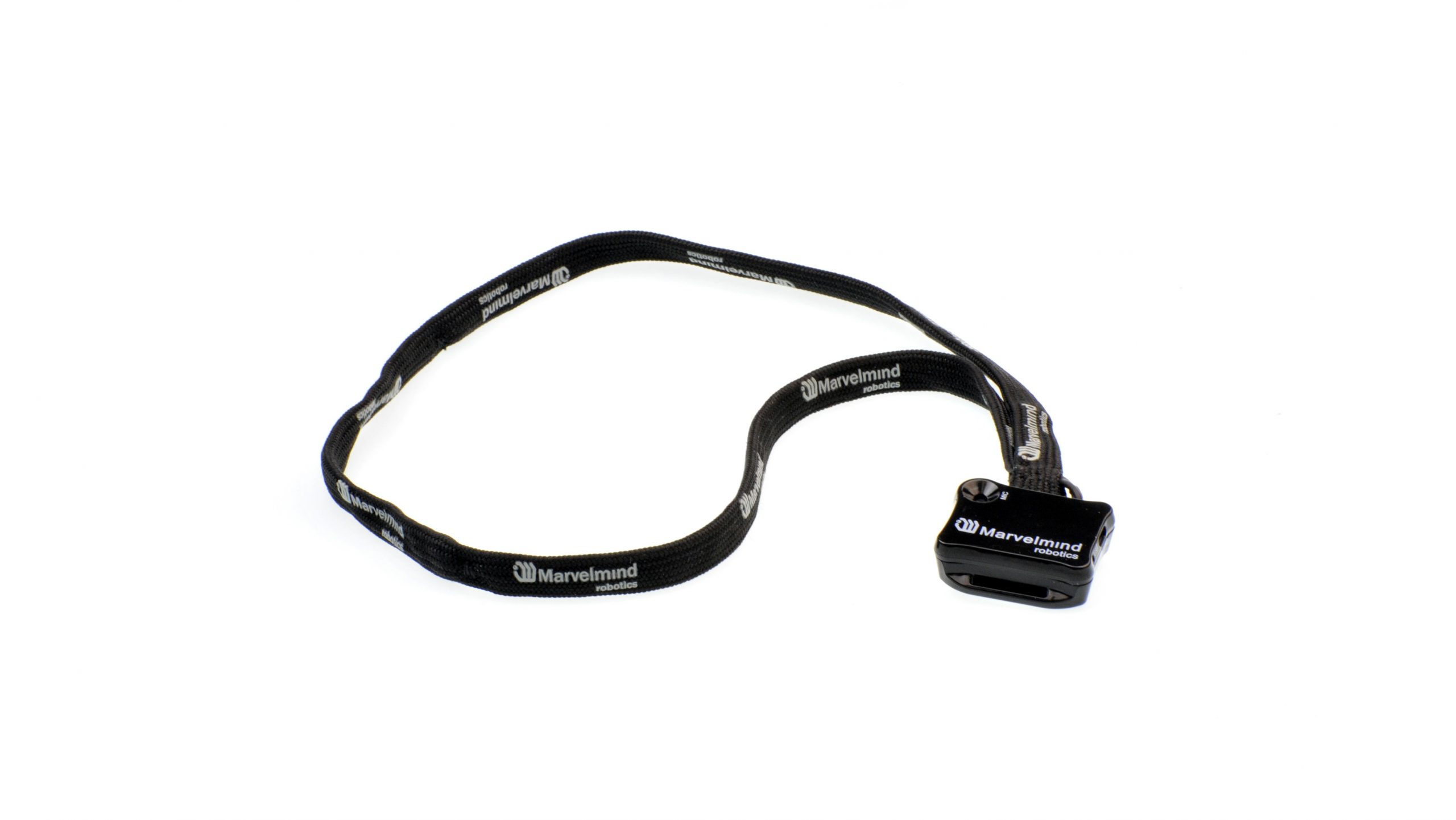

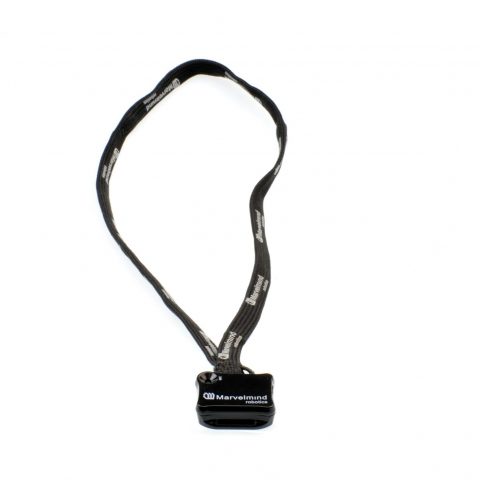

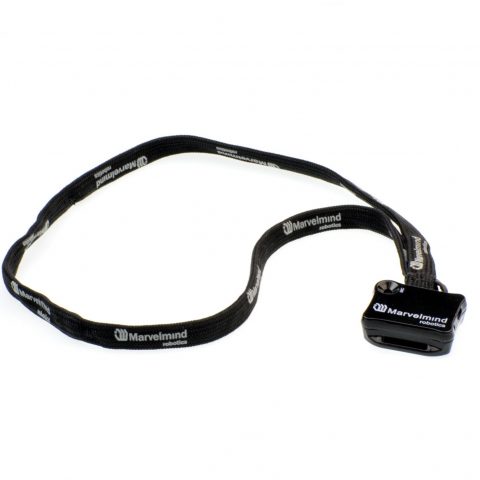

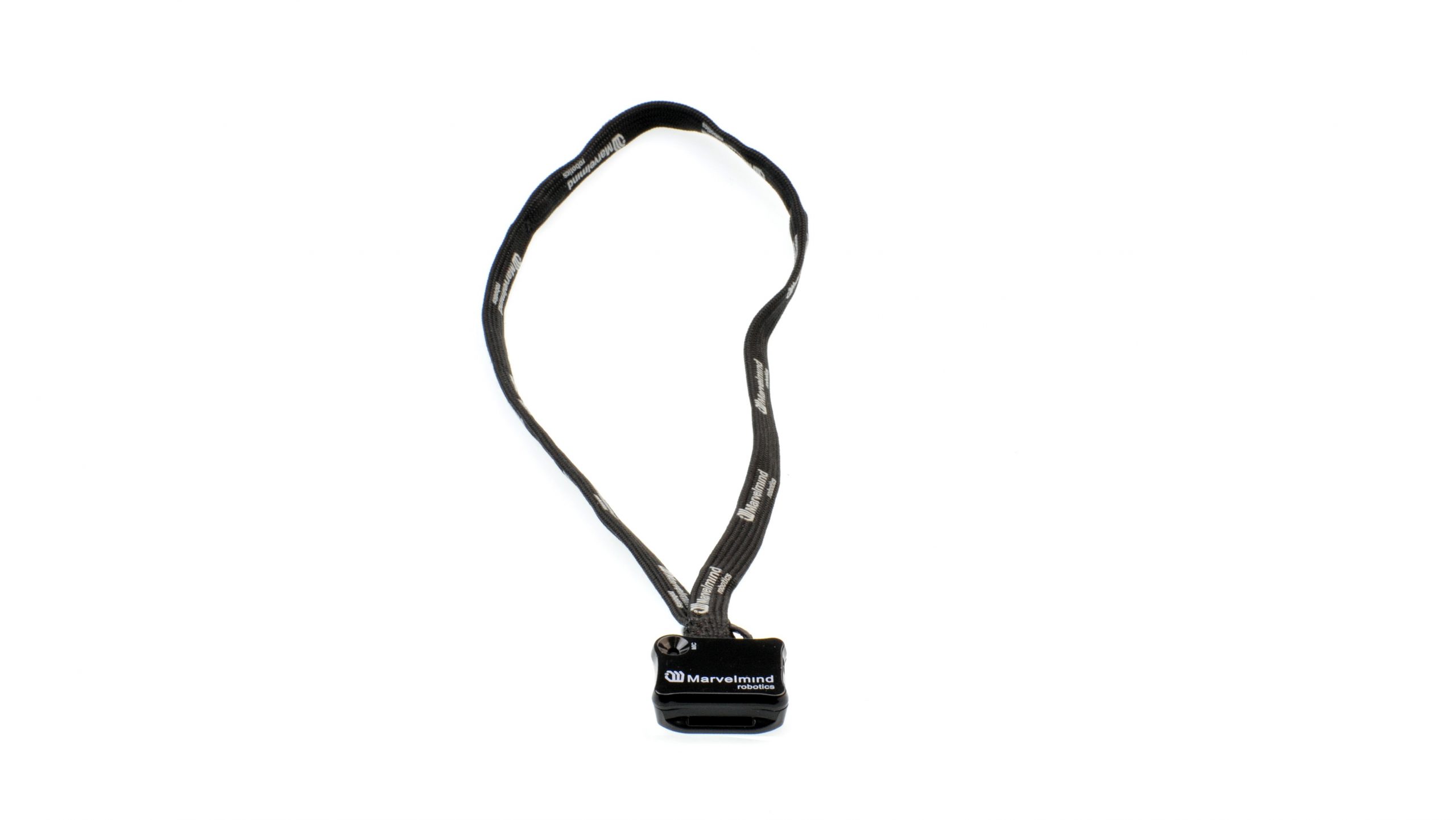

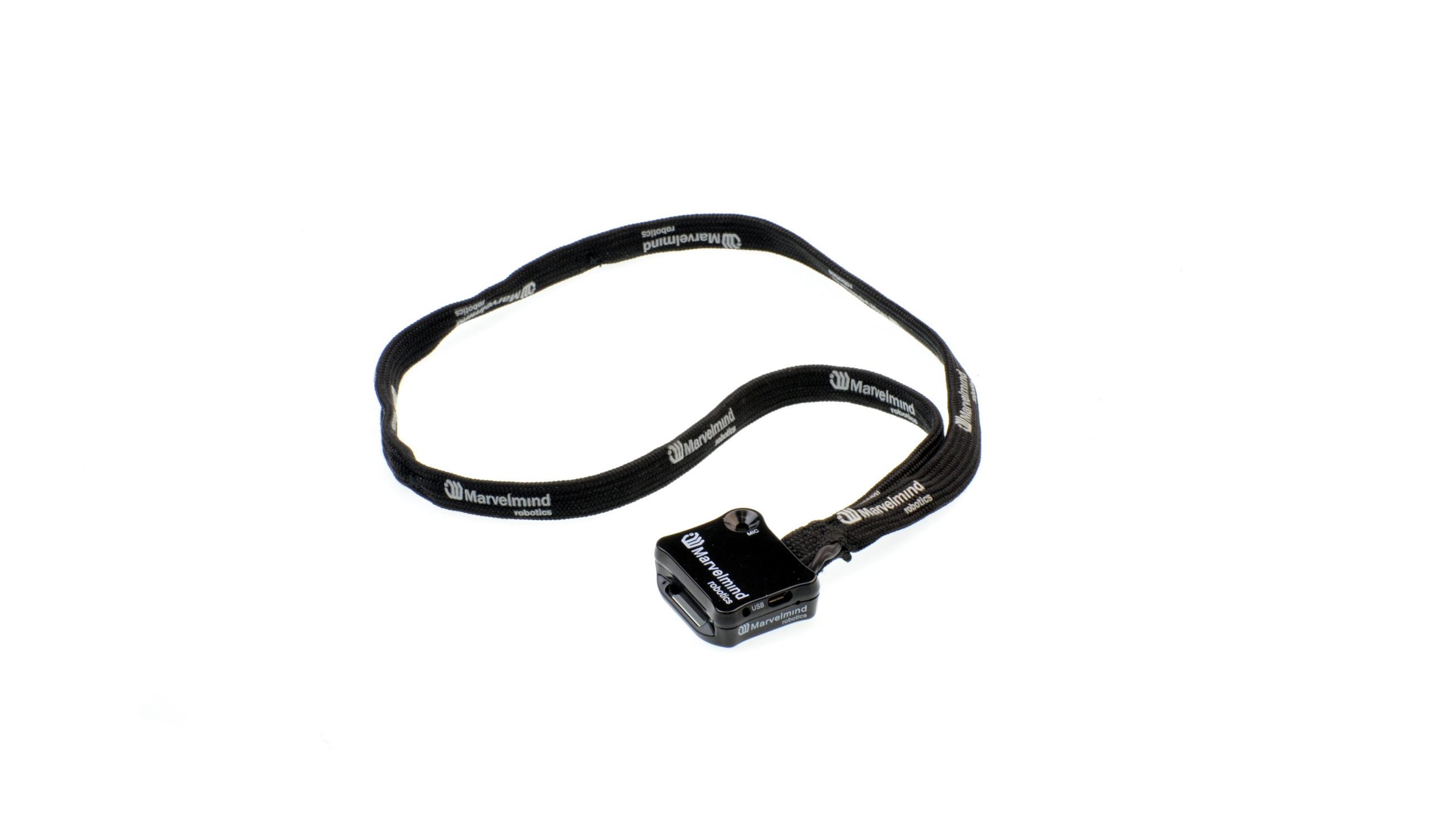

Badge works in the Inverse Architecture (IA) and is designed for tracking people in events, conferences, museums, exhibitions.

The recommended configurations for Badge is IA in 915/868MHz band with 8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality.

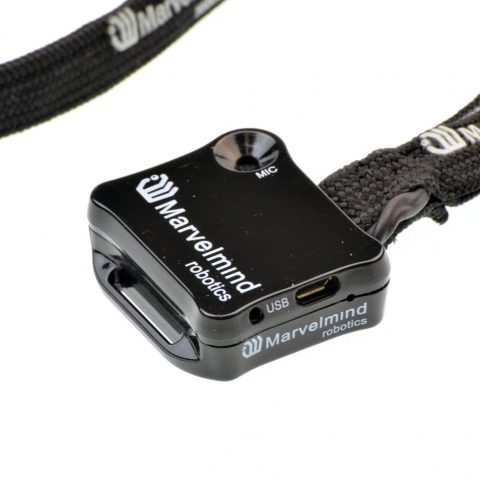

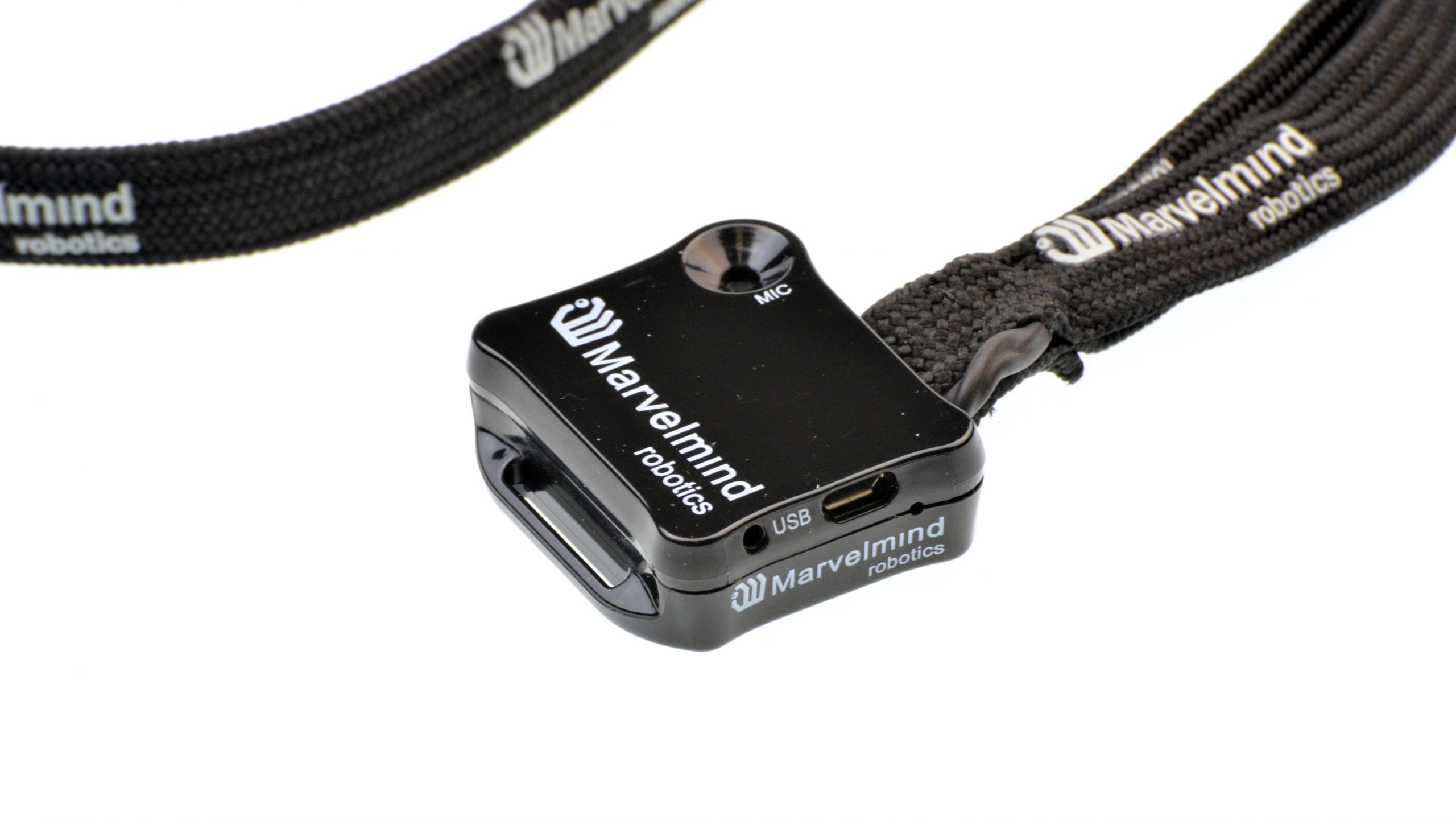

Badge includes Mini-RX and 2 additional external microphones to provide the best performance in challenging conditions with potential multiple obstructions.

Demos:

Room-level tracking with two overlapping submaps and TDMA mode enabled

Lead time – several days.

Distance to beacons

  • Reaches up to 25 meters

Location precision

  • ±20 cm – split triple microphone

Location update rate and latency

Inverse Architecture:

  • 4–8Hz. Can be set manually
  • Recommended – overlapping submaps in TDMA mode

Power supply and battery lifetime

Internal:

  • LiPol battery 750mAh
  • Battery lifetime totally depends on usage, map configurations, update rate. With 8Hz update rate => up to 30h

External:

  • microUSB – for charging

Weight

  • 35g

Description

Badge works in the Inverse Architecture (IA) and is designed for tracking people in events, conferences, museums, exhibitions.

The recommended configurations for Badge is IA in 915/868MHz band with 8Hz update rate and Real-Time Player enable and TDMA submaps turned on. The resulting latency is 1-2 seconds – for the best tracking quality.

Badge includes Mini-RX and 2 additional external microphones to provide the best performance in challenging conditions with potential multiple obstructions.

Demos:

Room-level tracking with two overlapping submaps and TDMA mode enabled

Lead time – several days.

Additional information

Weight 0.025 kg
Dimensions 4.7 × 4.2 × 1.5 cm
