Description

Content:

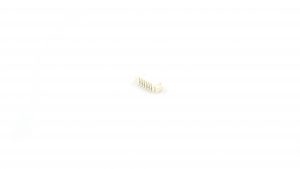

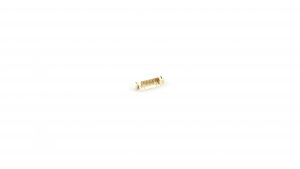

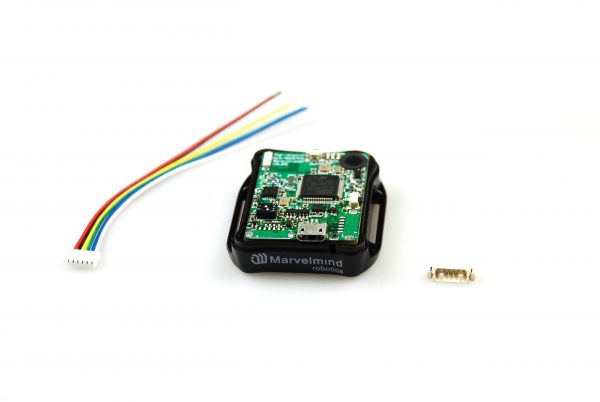

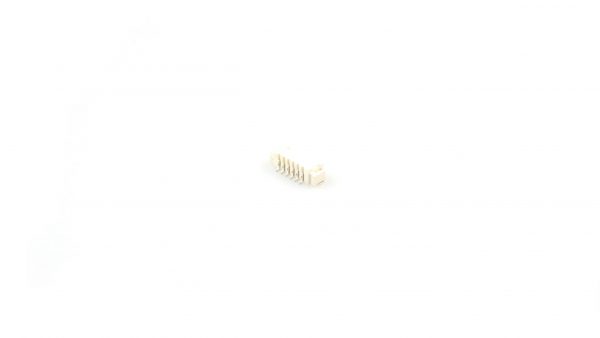

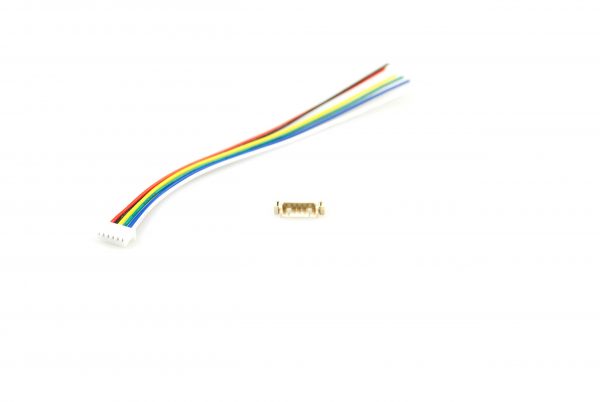

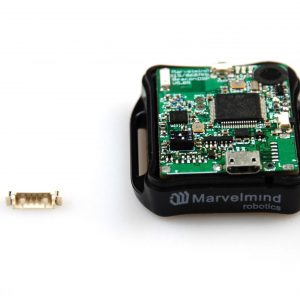

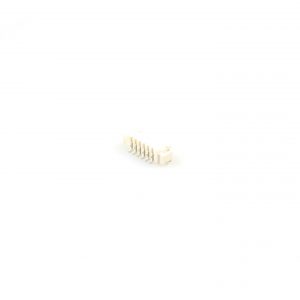

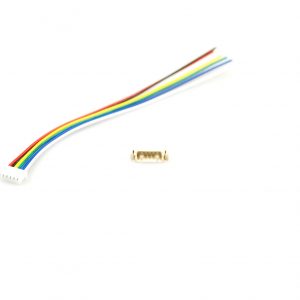

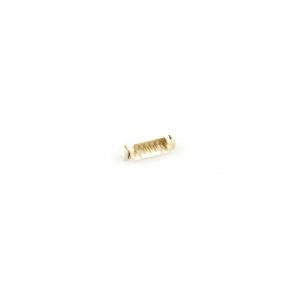

  • 6-pin SMD connector on the board

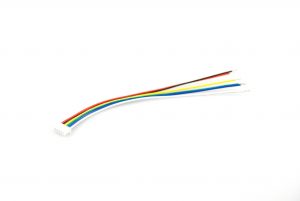

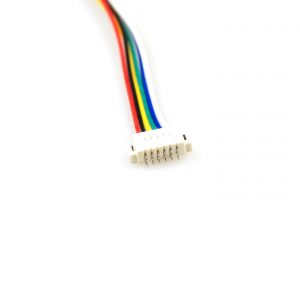

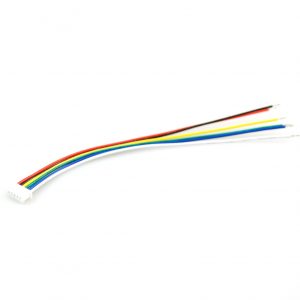

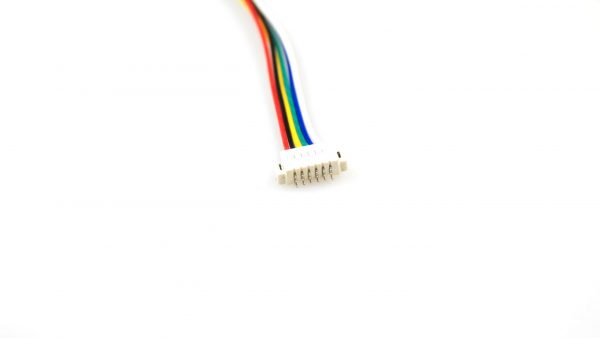

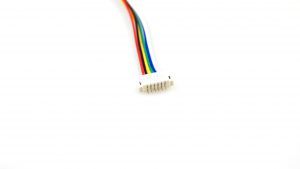

  • Corresponding connector with 10cm wires

Notes:

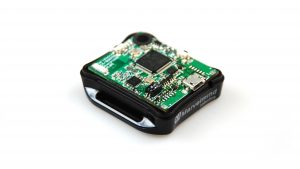

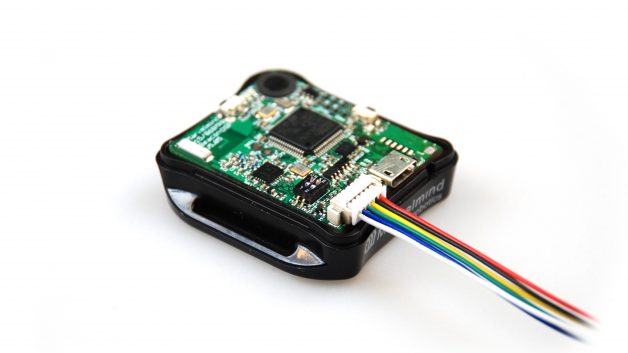

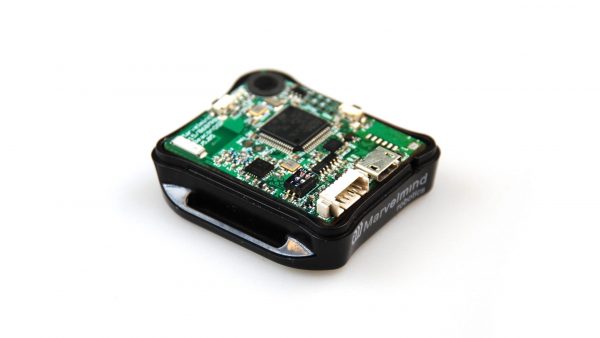

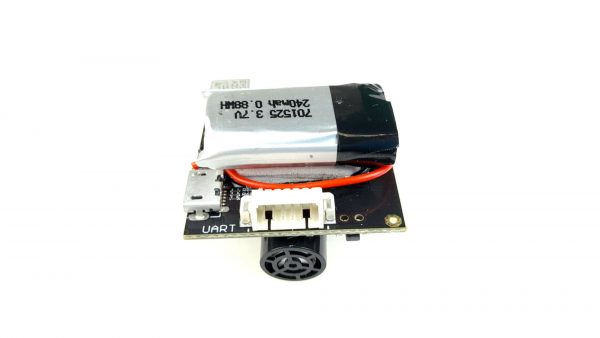

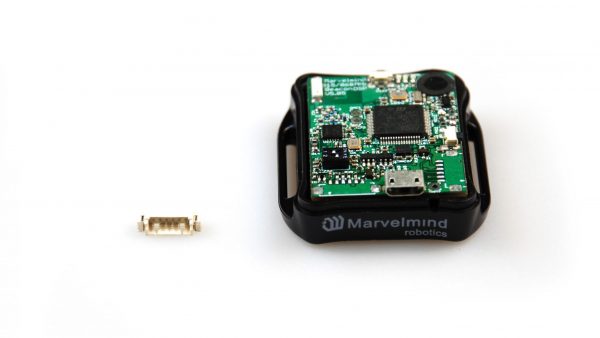

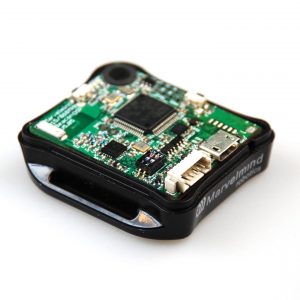

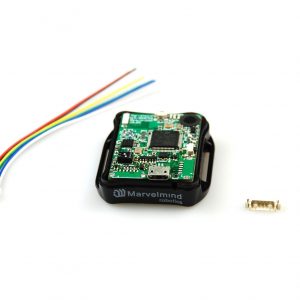

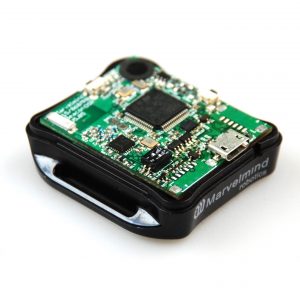

  • Mini-RX by default doesn’t have a connector installed on the board to provide physical UART connectivity in order to safe space. The UART Cable for Mini-RX sales item provides both a board connector for SMD (soldering required) and the cable itself to connect to your external devices.
  • Default length – 10cm. Customized length is possible on request

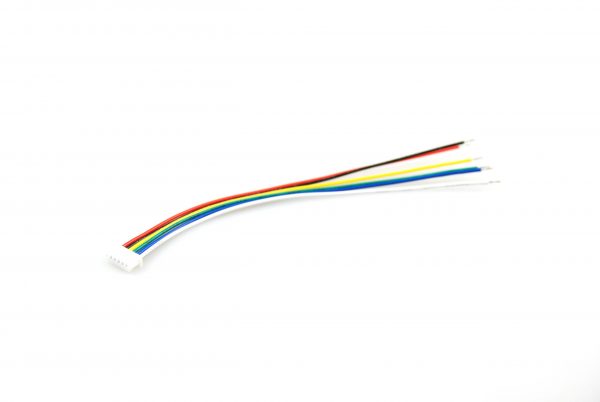

  • By default, the cable has open wires for soldering on the opposite side from the connector. On request, optional item with connectors on both sides can be provided
  • For connectivity, address Operating Manual chapter “Mini-RX internal solderable pinouts (for experienced users only)”
  • Soldering is required
